TRUMPF - TC2000R ES-PUN-TRU-1999-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used TRUMPF TC2000R For Sale | gindumac.com

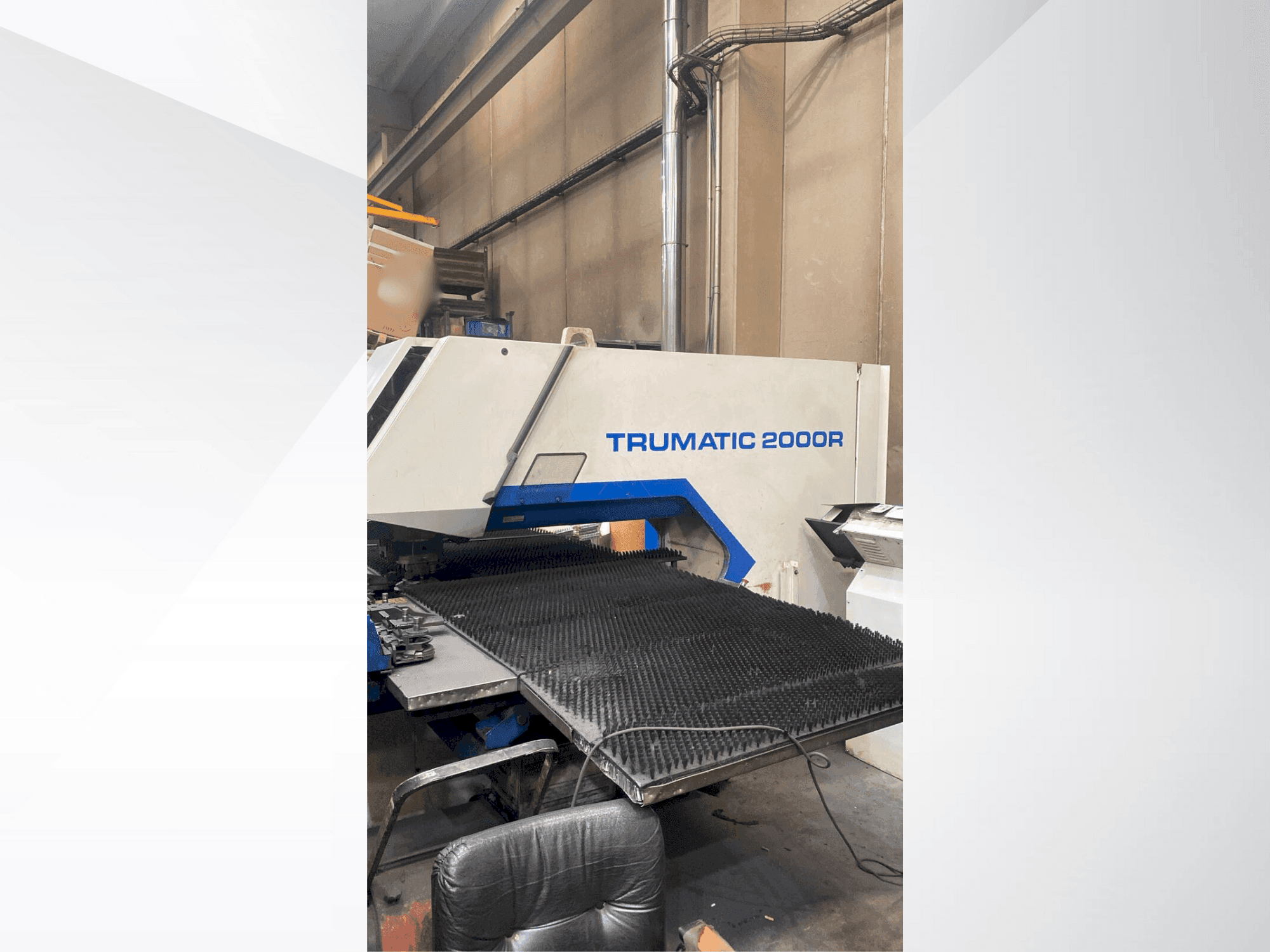

This 3-axis TRUMPF TC2000R was manufactured in 1999, featuring a robust 1270 mm X and Y-axis travel, expandable to 2020 mm for larger sheets. It boasts a 22-ton punching capacity and a high-speed punching rate of up to 900 strokes/min. The machine includes a 9-station linear magazine with an automatic turret-style changer and full C-axis rotation. Ideal for high precision CNC punching. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 1999
- MODEL: TC2000R
- application type: Punching
- Location: Spain
- machine type: CNC Punching Machine
Technical Information - TRUMPF TC2000R
Dimensions
- Machine Depth: 5700 mm
- Machine Height: 2070 mm
- Machine Weight: 8000 kg
Movement
- X-axis Travel: 1270 mm
- Y-axis Travel: 1270 mm
Technical Specification
- Max. Sheet Thickness: 6.4 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Maximum punch diameter: 76 mm
- Tool capacity: 9-station linear magazine (expandable with multitool options)
- Tool change system: automatic turret-style changer
- Tool indexing: yes, with full rotation (c-axis)
- Programming interface: compatible with standard cad/cam punch software
- Punching rate: up to 900 strokes/min at 1 mm pitch, up to 420 strokes/min at 25 mm pitch
- Axis speed: x: 90 m/min, y: 60 m/min, simultaneous x/y: 108 m/min
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
