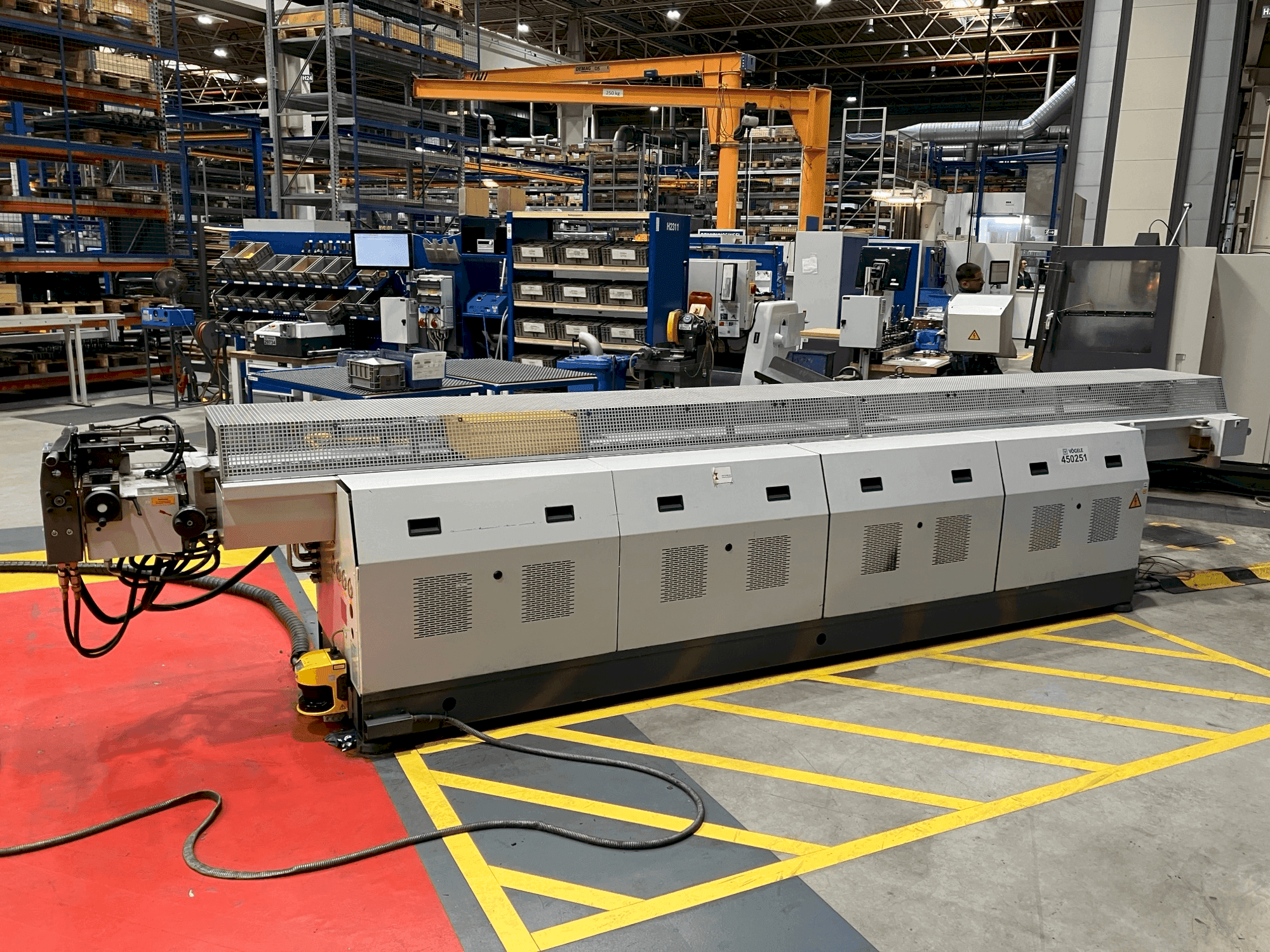

This 3-axis TRACTO-TECHNIK Tubotron 30 CNC was manufactured in 2008. It features a programmable sequence control, Simatic Panel PC 677 for menu navigation, and manual or automatic operation modes. The machine includes a free-standing bending head, hydraulic pipe clamping, and a hydraulic long-neck chuck for precise positioning. Ideal for high-quality bending operations. Contact us for more information about this machine.
Overview
- brand: TRACTO-TECHNIK
- year: 2008
- MODEL: Tubotron 30 CNC
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Sheet Metal Machine
- control unit brand: SIEMENS
Technical Information - TRACTO-TECHNIK Tubotron 30 CNC
Control Unit
- Control Brand: SIEMENS
- Control Model: SIMATIC HMI
Movement
- Number of Axes: 3
Additional Information
Includes tube and mandrel rod support.
Bending mandrel is hydraulically extendable with a programmable pre-release.
Bending mandrel has automatic minimal quantity lubrication.
Oil cooler equipped.
Offers both manual and automatic operation.
The machine features a simatic panel pc 677 on a mobile control panel.
Programmable sequence control and menu guidance available.
Rs 232 / rs 485 interface for remote maintenance.
The machine can be connected to a pc network.
The machine is equipped with 3 axes.
Features a free-standing bending head.
Hydraulic pipe clamping with programmable clamping force.
Hydraulic long-neck chuck for positioning in the sliding piece area.
Foot switch available for the hydraulic chuck.
PIPEFAB 4.0 BE Comfort Package (pipe bending software)
Oracle Express database (single-user application)
Creation of isometrics (single pipe)
ConCSV interface (CSV import/export)
Calculation of bending data considering springback and elongation
IsoTools
3D preview/labeling tools
Output of bending data (printout)
BendSim: bending simulation and graphical representation via parametric tool design
BendCon 2: creation and transfer of CNC bending data
Machine upgrade: converted to a 19" IPC 677D touch PC (approx. 2018/2019)
Machine still under power
Machine includes dongle for operating the Pipefab software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
