TOS - OHA 16BCZ-SHA-TOS-1988-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- TOS OHA 16B Shaping Machine

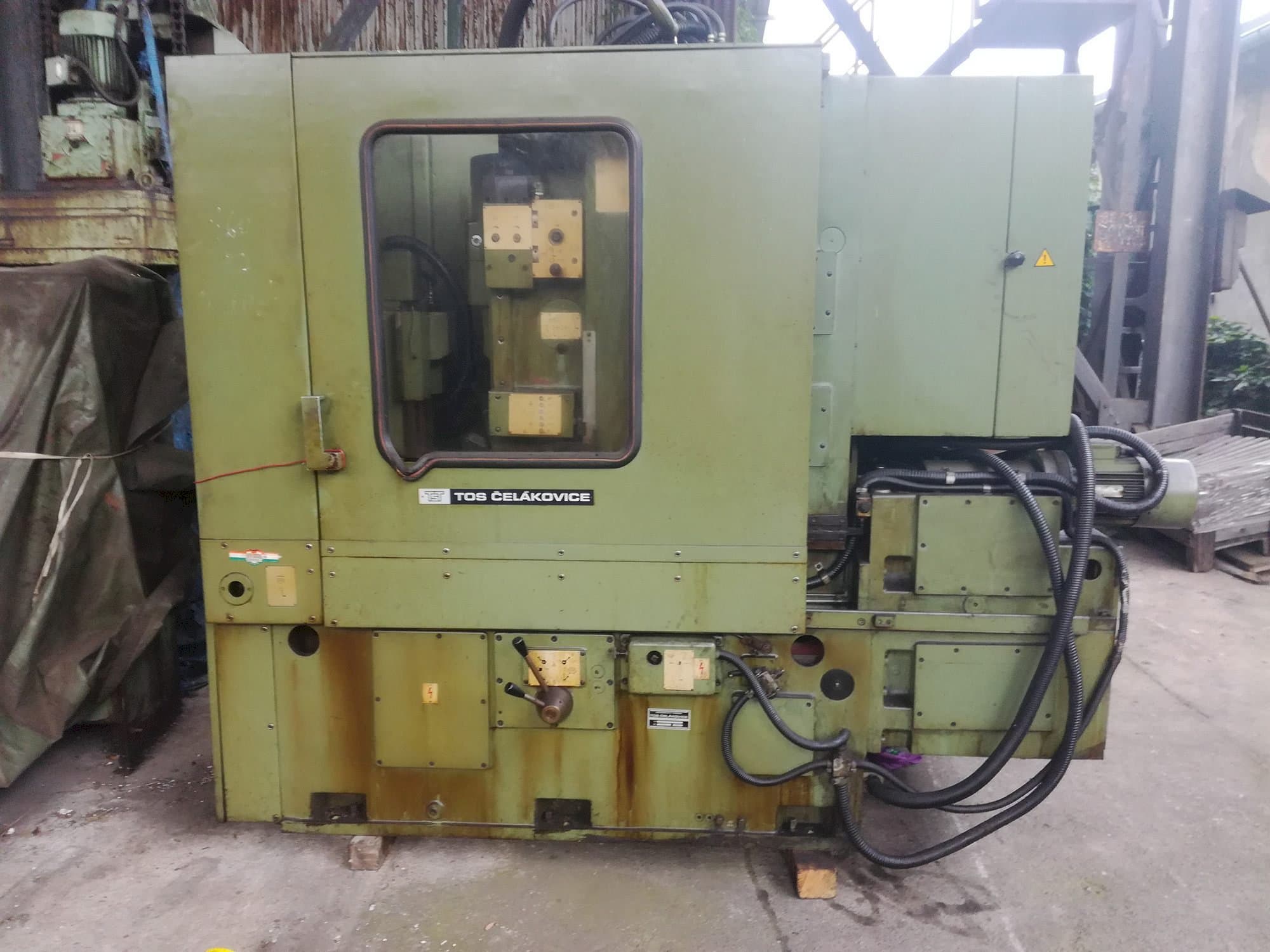

This TOS OHA 16B Shaping Machine was built in 1988 in Czech Republic. This machine can works with a gear cutting of 20 - 160 mm external, and 160 mm internal. During the past, this machine has been producing gear part.
Overview
- brand: TOS
- year: 1988
- MODEL: OHA 16B
- application type: Shaping & Planing
- Location: Czech Republic
- machine type: Shaping Machine
Technical Information - TOS OHA 16B
Dimensions
- Machine Depth: 2340 mm
- Machine Height: 2500 mm
- Machine Weight: 4900 kg
Technical Specification
- Max. Workpiece Diameter: 160 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Reliable gear shaping machine
- Regularly maintained
Technical Machine Benefits
- Max. Module 4
- Max. Gear width 45 mm
- Max. Workpiece for external / internal gears 400 / 250 mm
- Max. Gear cutting: external 20 – 160 mm, internal 160 mm
- Length of stroke 0 – 50 mm
Machine History
End product
Gear parts
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
