➤ Used Tornos SWISS GT 26 Lathe

Show in original language

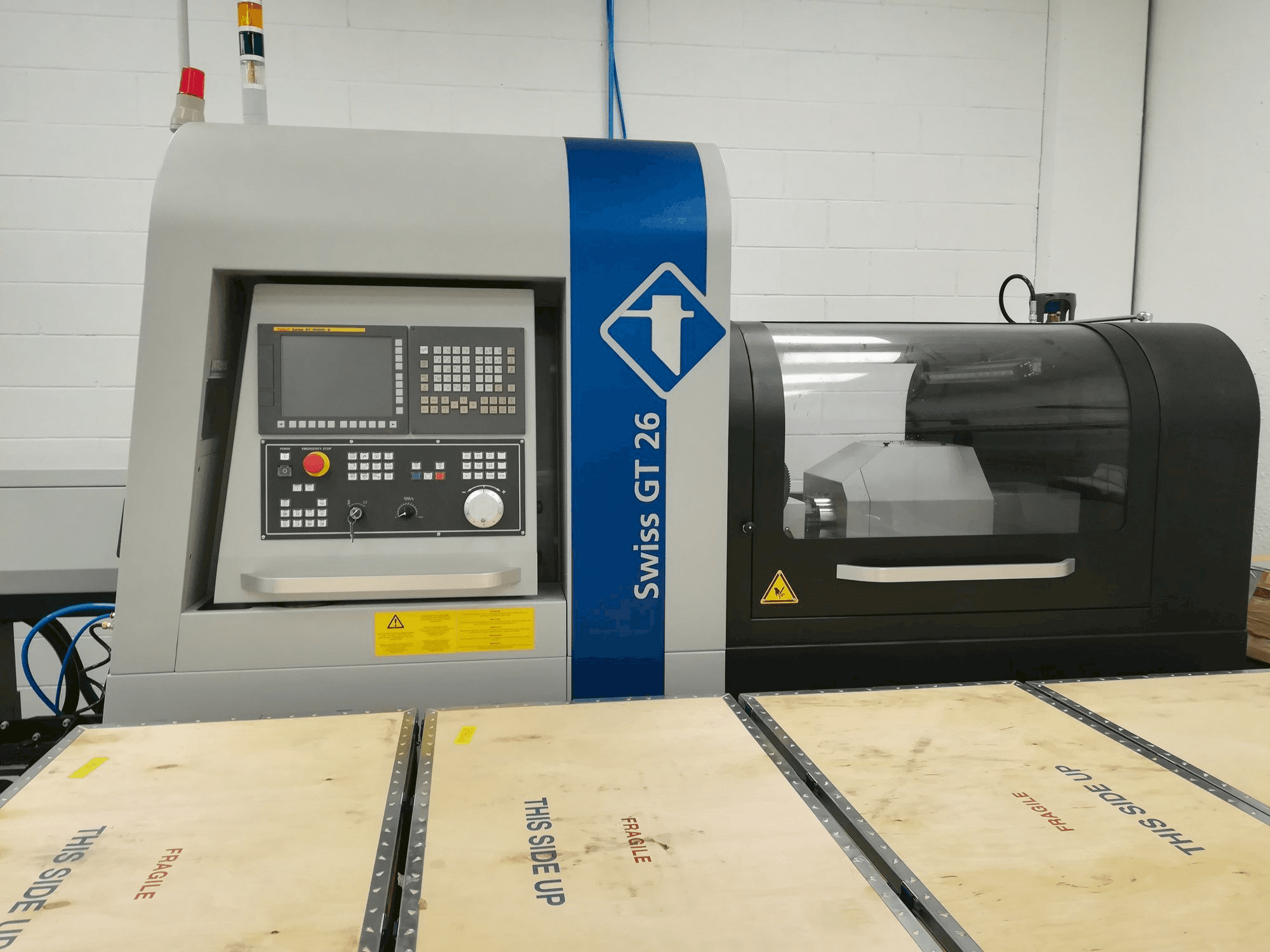

This Tornos Swiss GT 26 Lathe was manufactured in 2015 in Taiwan and has been working for only 100 hours approximately. Operated through a FANUC 31i-Model B Control unit, this machine incorporates 4 driven tools. It has an automatic centralised lubrication cycle and a 20-bar lubrication pump with manual selection of filters, among many other technical benefits. It presents perfectly good conditions, as it is almost new.

Overview

brand: TORNOS
year: 2015
MODEL: Swiss GT 26
production hours: 100
application type: Turning
Location: Spain
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TORNOS Swiss GT 26

General Data

Measurements width: 1270 mm
Measurements depth: 2710 mm
Measurements height: 1990 mm
Machine weight: 3500 kg

Control Unit

Model: 31i-Model B
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 10.5 kW

Movement

X-AXIS Movement: 220 mm

Workpiece

Workpiece drm: 25.4 mm

Turret

Number of turrets: 2
Number of tool slots: 40
Rotating tools: Yes

Tools

Slots in storage: 40

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotating guide bush with integrated motor
- - S21 rear platten & s11 front platten rotating tool motor
- - C1 + c4 axes
Qualitative Machine Benefits:
- - Interpolation in polar coordinates
- - Pneumatic workpiece ejector + oil cleaning of collet
- - Machining along 5 simultaneous axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
