Tongtai GT-630
Tongtai - GT-630
2015
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Tongtai GT-630 Vertical Machining Center

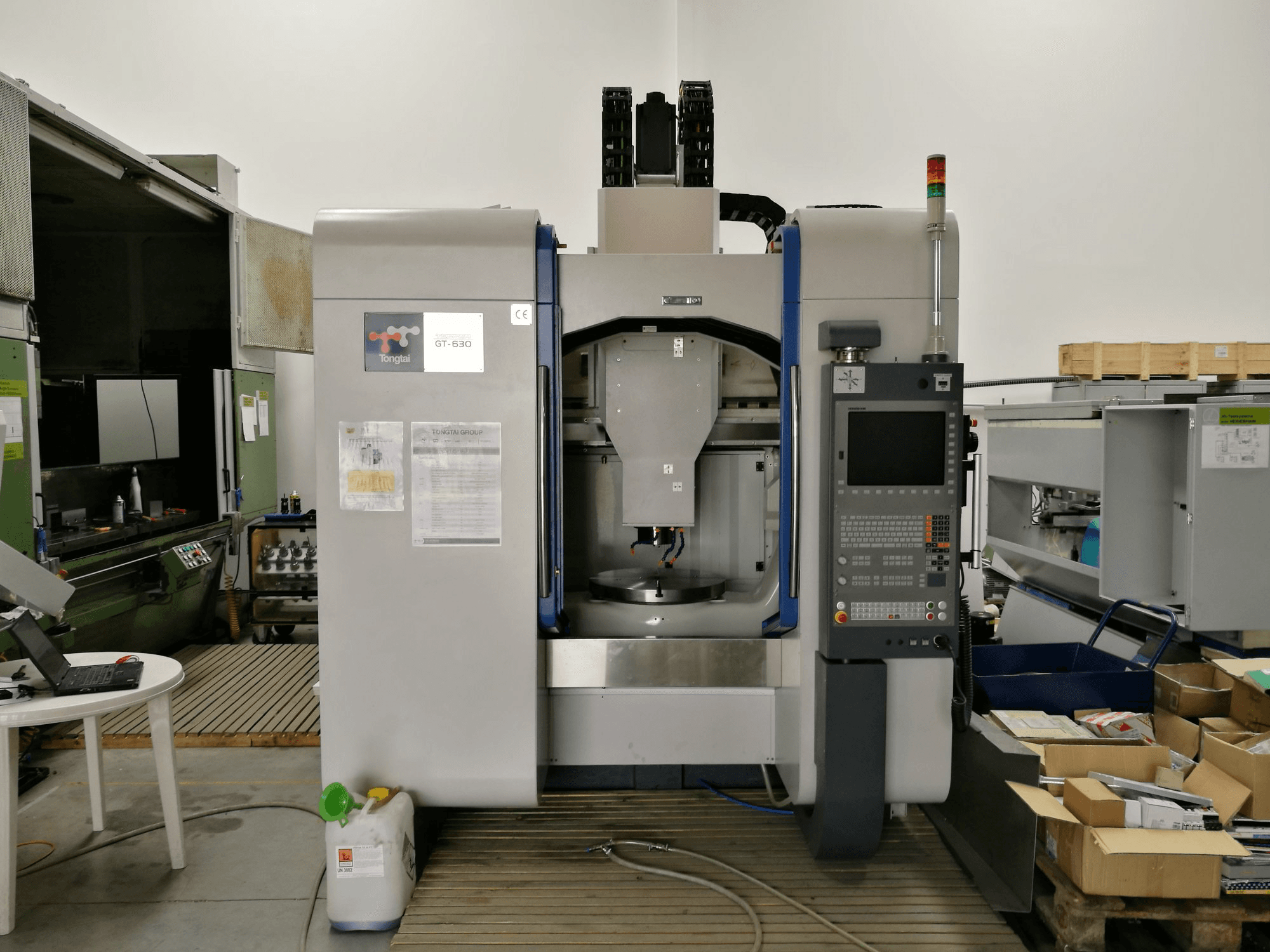

This new Tongtai GT-630 Vertical Machining Center was manufactured in 2015 in Taiwan and is equipped with a Heidenhain iTNC 530 HSC II Control unit. This machine has 0 production hours and was exclusively used as an exhibition item at trade fairs. As this machine is new, it comes with a warranty of 12 months or 3000 production hours.
Overview
- brand: Tongtai
- year: 2015
- MODEL: GT-630
- production hours: 0
- application type: Milling
- Location: Hungary
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: HU-MIL-TON-2015-00001
Technical Information
General Data
- Measurements width: 5400 mm
- Measurements depth: 2200 mm
- Measurements height: 3400 mm
- Machine weight: 16000 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 530 HSC II
Main drive
- Number of spindles: 1
- Spindle speed range: 60-20000 1/min
- Spindle bore: BBT40
Movement
- X-AXIS Movement: 760 mm
- Y-AXIS Movement: 820 mm
- Z-AXIS Movement: 560 mm
- A-AXIS Movement: -120º -30º MM
- C-AXIS Movement: 360ª MM
Workpiece
- Workpiece drm: 800 mm
- Workpiece x: 500 mm
Table
- Outer length: 630 mm
Tools
- Slots in storage: 30
- Max weight: 7 kg
- Max tool diameter: 75 / 120 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 40 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
