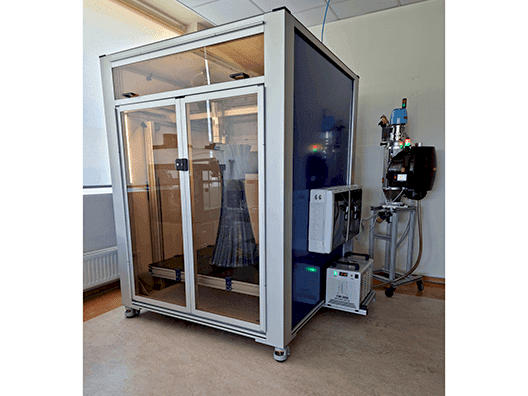

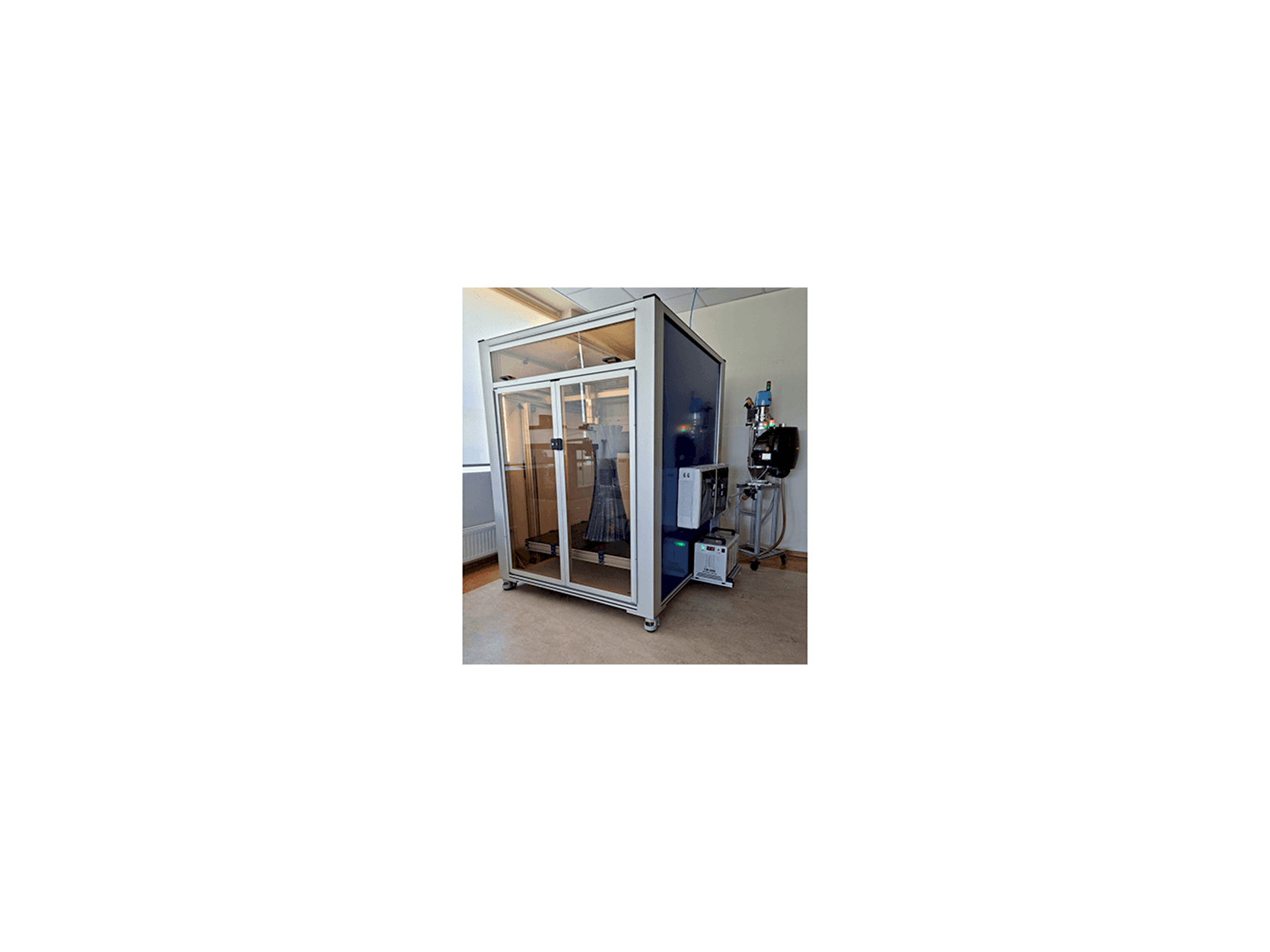

Terracubed T1000

Machine Benefits

• Technical Machine Benefits:
  • - Build volume: 1x1x1m
  • - Print speed: up to 1m/s
  • - Extruder flow: up to 3kg/h
  • - Layer height: 0. 5-2mm
  • - Nozzle: 1mm, 3mm, 5mm (currently equiped with 3mm )
  • - Calibration: 3 point true bed leveling + 100 point mesh bed leveling
  • - Motion: tecnic servo motors and controllers equipped with web camera for remote inspection controller wirelessly
  • - Accuracy: 0,05mm
  • - Android tablet is included with the printer
• Qualitative Machine Benefits:
  • - Mainboard is duet3 board. It's details are as follows: reprapfirmware for duet 3 mb6hc firmware_version: 3. 4. 0 electronics: duet 3 mb6hc v1. 01 or later firmware_date: 2022-03-15 18:57:26

Extra information

• - Machine doesn't have to be dismantled. What is needed is flat lifting bed equipped truck and it fits perfectly on to the bed. It has industrial wheels, so it can be pushed onto the bed and then from it.If machine does not fit inside the building - dismantling and assembly is required by my team of technicians. Since it has to be recalibrated during and after assembly. But it takes only 1 day to finish.
