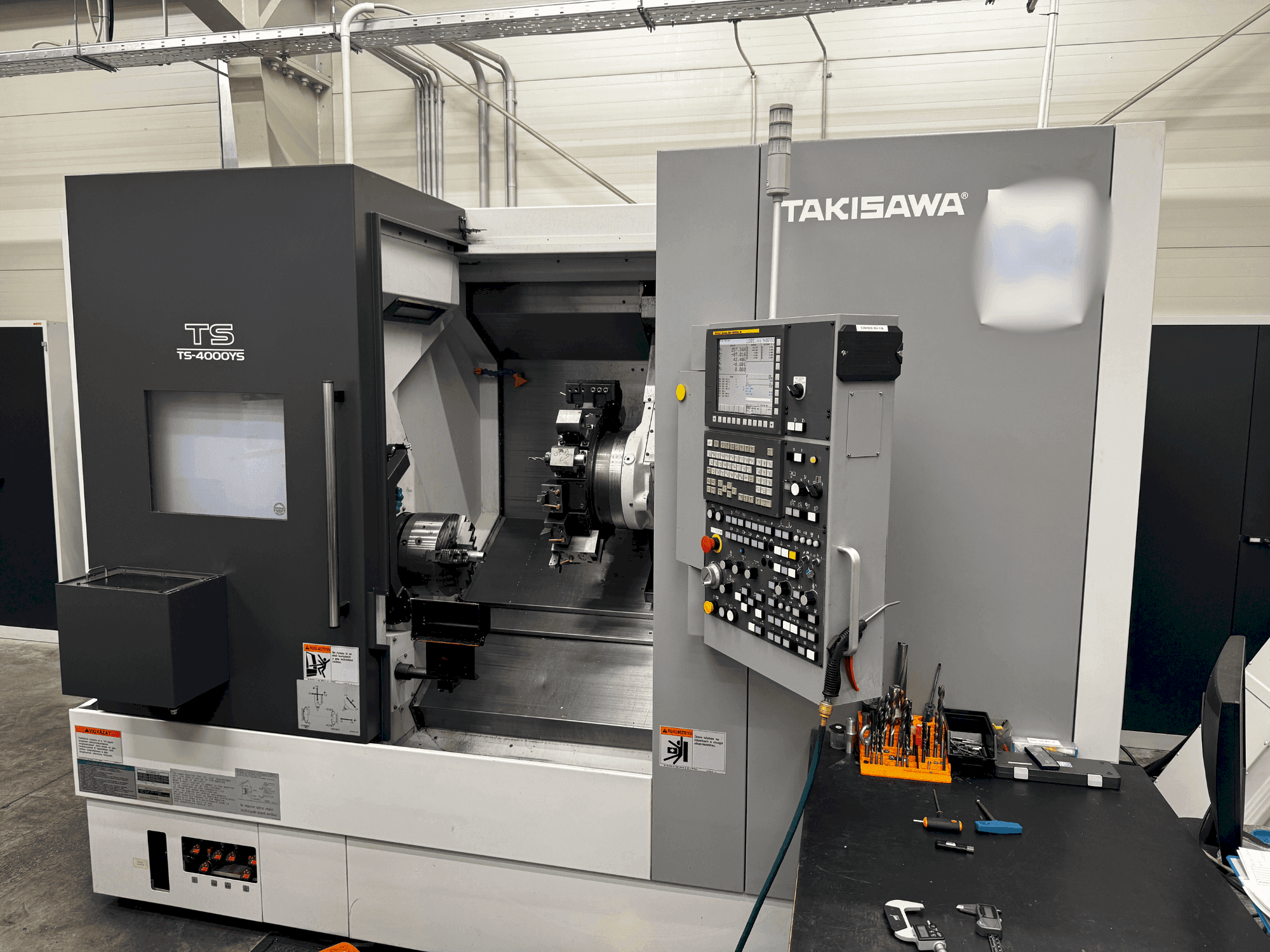

This 3-axis Takisawa TS-4000YS was manufactured in 2021. It features a robust 6200 kg frame with a 30° inclined bed for stability and precision. Key specs include a 22 kW main spindle, 618 Nm torque, and rapid traverses up to 30 m/min. It's equipped with a dual spindle, Y-axis, and a 15-position turret for versatile machining. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS machine we have for sale. Contact us for more information.
Overview
- brand: Takisawa
- year: 2021
- MODEL: TS-4000YS
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Takisawa TS-4000YS
Control Unit
- Control Brand: FANUC
- Control Model: Series 32i-Model B
Dimensions
- Machine Depth: 3000 mm
- Machine Height: 2300 mm
- Machine Weight: 6200 kg
Movement
- X-axis Travel: 267 mm
- Y-axis Travel: -50 mm
- Z-axis Travel: 840 mm
Technical Specification
- Spindle Speed: 4200 RPM
Additional Information
Additional equipment
- LNS Barfeeder interface
- Part catcher
- Renishaw tool measurement (main and subspindle also)
- Kitagawa BB-250 3 jaws hydraulic chuck – main spindle
- Kitagawa SS1881K hydraulic hollow cylinder – main spindle
- Kitagawa B-206 3 jaws hydraulic chuck – sub spindle
- Kitagawa SS12640K hydraulic hollow cylinder – sub spindle
- 15 pos turret
- High power coolant pump (520W)
- Work lamp
Machine Benefits
Qualitative Machine Benefits
- High rigidity and built-in main and sub-spindle enable precise and vibration-free machining.
- High performance and solid machine bed enable high-volume chip removal.
Technical Machine Benefits
- Max. Swing diameter: 600 mm
- Max. Turning diameter and length: Ø 370 x 750 mm
- Max torque: 618 nm
- A-axis: 780 mm
- Trough hole: Ø 82 mm
- Number of tool positions on turret: 15 pcs
- Max. Tools speed: 6000 rpm
- 3 pcs live tool (radial-axial)
- Live center 2 pcs
- Static tool holder
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
