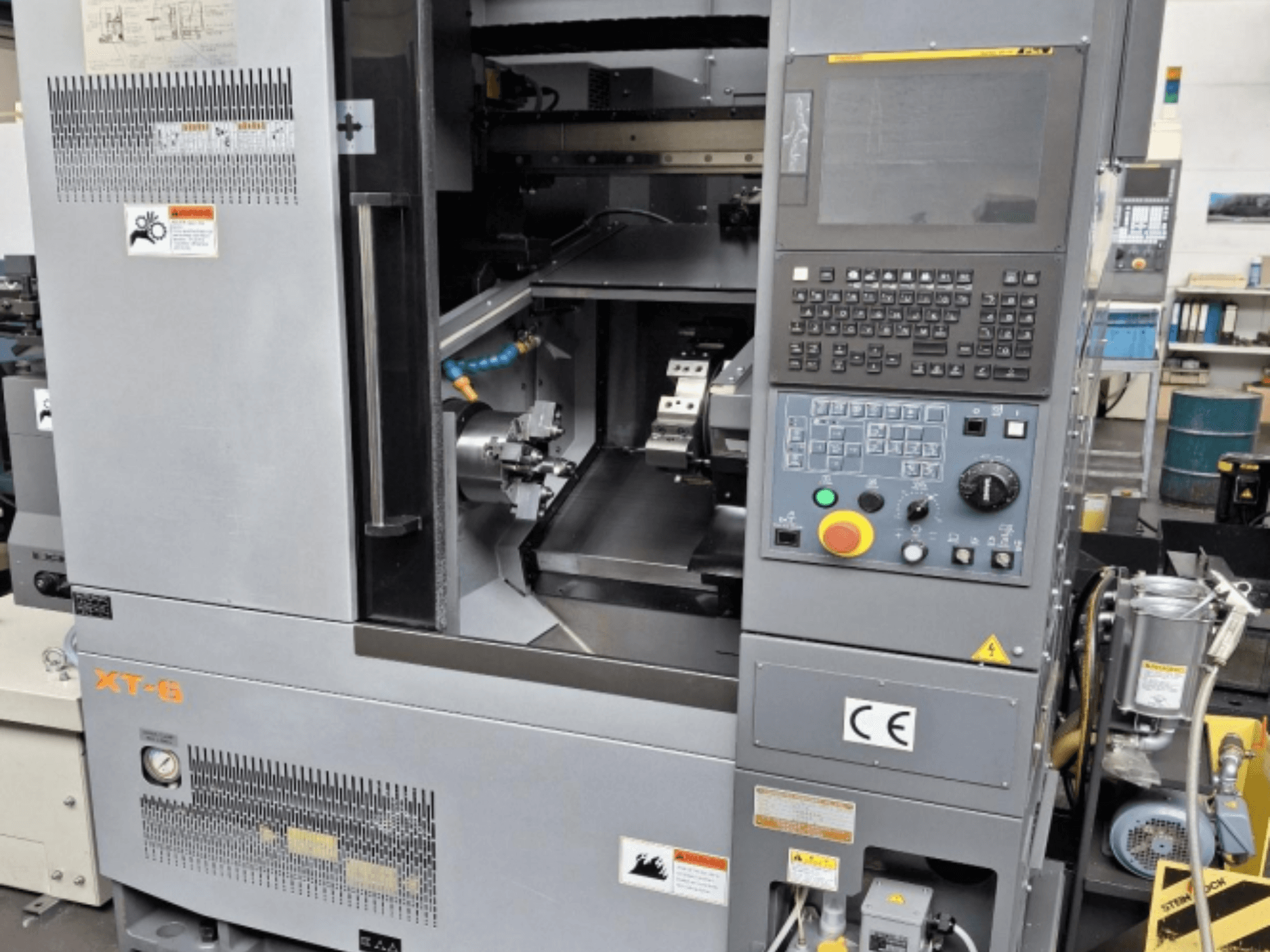

This Takamaz XT 6 was manufactured in 2020. It features a maximum turning diameter of Ø180 mm and a maximum turning length of 240 mm. If you are looking to get high-quality turning capabilities, consider the Takamaz XT 6 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Takamaz
- year: 2020
- MODEL: XT 6
- production hours: 1559
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Takamaz XT 6
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-TF Plus with 10.4" Touch Display
Dimensions
- Machine Height: 1700 mm
- Machine Length: 1360 mm
- Machine Weight: 2300 kg
- Machine Width: 1370 mm
Movement
- Number of Axes: 2
- X-axis Travel: 120 mm
- Z-axis Travel: 280 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 5.5 kW
- Spindle Speed: 4500 RPM
Additional Information
- Maximum Turning Diameter: Ø180 mm
- Maximum Turning Length: 240 mm (depending on clamping device)
- Rapid Traverse (X / Z): 18 / 24 m/min
- Maximum Spindle Torque: 63.6 Nm
- Spindle Bearing Inner Diameter: Ø75 mm
- Spindle Nose: A2-5 short taper
- Maximum Bar Capacity: 35 mm
- Maximum Chuck Size: 203 mm (8 inch)
- Spindle Center Height Over Floor: 950 mm
- Tool Turret: 1 x 8-station turret (Direct mounting / boring cassettes)
- Shank Height for External Turning: 20 x 20 mm
- Maximum Shank Diameter for Boring Bars: 25 mm
- Base Machine Dimensions (Footprint without accessories/transformer): 1,360 x 1,370 mm
- Overall Height with Loader: 1,700 mm
- Power Connection / Supply: 18 kVA / AC200V, 3-Phase, 50/60Hz
- Rated Power (Nameplate): 13.0 kVA
- Full Load Current: 36 A
- Interrupting/Short-Circuit Rating: 2.5 kA
- Working Hours (As of 2026/05/22 08:51:21):
- Control On Time: 4525 Hours
- Operating/Running Time: 1975 Hours
- Processing Time: 1559 Hours
- Free Use Time: 1733 Hours
- Total Parts Counter: 25,600 pieces
- Workpiece Counter: 21,801 pieces
- Included Automation Equipment:
- Fanuc Compact Loader FC60 (2-axis servo loader with two parallel pneumatic grippers, max workpiece diameter 60 mm, max weight 1.0 kg per hand, 90° pneumatic tilting unit)
- Integrated parts infeed conveyor belt (length 800 mm)
- Integrated parts outfeed conveyor belt (length 600 mm)
- Additional Equipment, not included:
- Chip conveyor
- Reinforced high-pressure coolant pump
- Power chuck
- Tool holders
- Hydraulic power pack
- SMW-Autoblok VNK 70-37 hydraulic hollow clamping cylinder
- Complete coolant system with standard pump
- Leveling elements / alignment plates
- Control cabinet with fan ventilation
- Electrical transformer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
