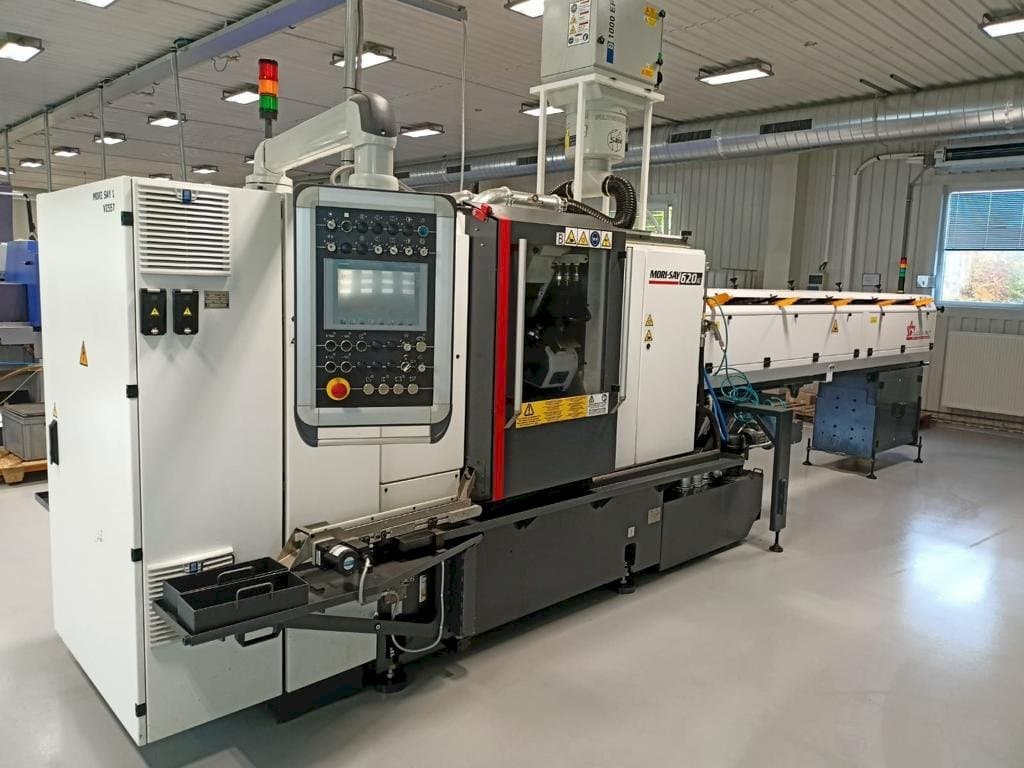

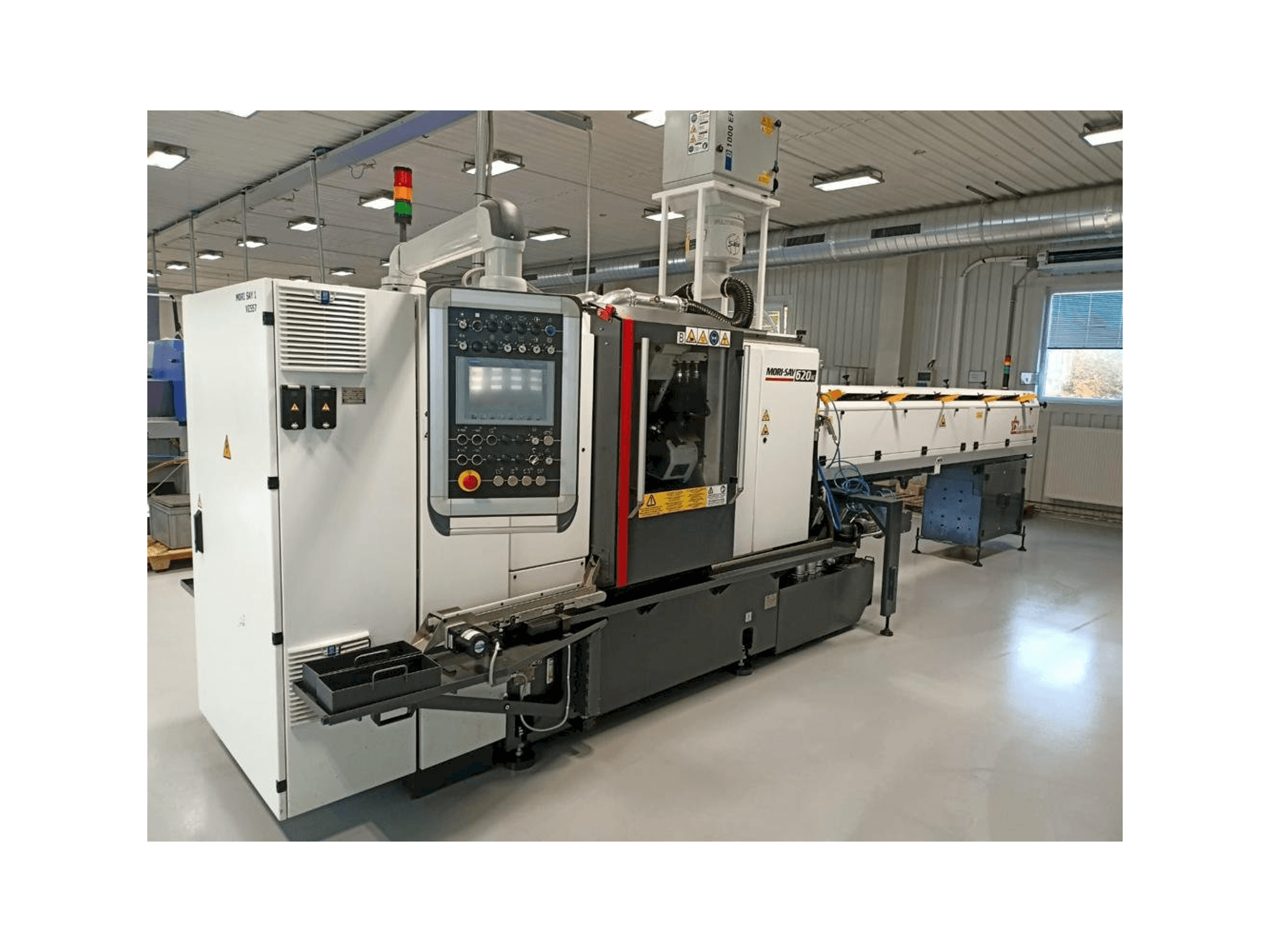

TAJMAC-ZPS MORI-SAY 620AC (2021) Swiss Type Turning machine

Show in original language

This TAJMAC-ZPS MORI-SAY 620AC Swiss Type Turning machine was manufactured in 2021 in Czech Republic. It is in top condition with only 1996 hours. Equipped with 6 spindles it comes with a spindle speed range of 500-6000 rpm and a maximum length of bar of 3300 mm. See technical benefits below for more technical details.

Overview

brand: TAJMAC-ZPS
year: 2021
MODEL: MORI-SAY 620AC
production hours: 1996
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine

Technical Information - TAJMAC-ZPS MORI-SAY 620AC

Main drive

Number of spindles: 6
Spindle speed range: 500 - 6000 rpm 1/MIN
Spindle motor power: 9 kW

Additional Information

Additional equipment

High pressure device 40 bar-55 l/min for cooling oil incl. screw pump KTS32 and filter unit FKA/160
Oil exhauster Filtermist S800
Pneumatic parts-catching attachment station 4 & 6
Automatic bar feeder 6 channel version model AN

Machine Benefits

Qualitative Machine Benefits

Machine is in top condition with only 1996 hours!

Technical Machine Benefits

Inner dia of clamping tube Ø 28 mm
Bar stock dimension: round cross section Ø 20 mm // hexagonal cross section 17 mm
Maximum length of bar 3300 mm // maximum length of bar feeding 100 mm
Frontal slides – no. 6 // cross slides – no. 6 // compound slides - no. 4
Compact multi ls-6 pb25, (bar Ø8-22mm), type 3,3 m
Universal threading attachment
8° ram-type recessing slide img at stations 3+5
Rotating tailstocks
Counterspindle (pick-up)
Removal of the workpiece on the pin

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
