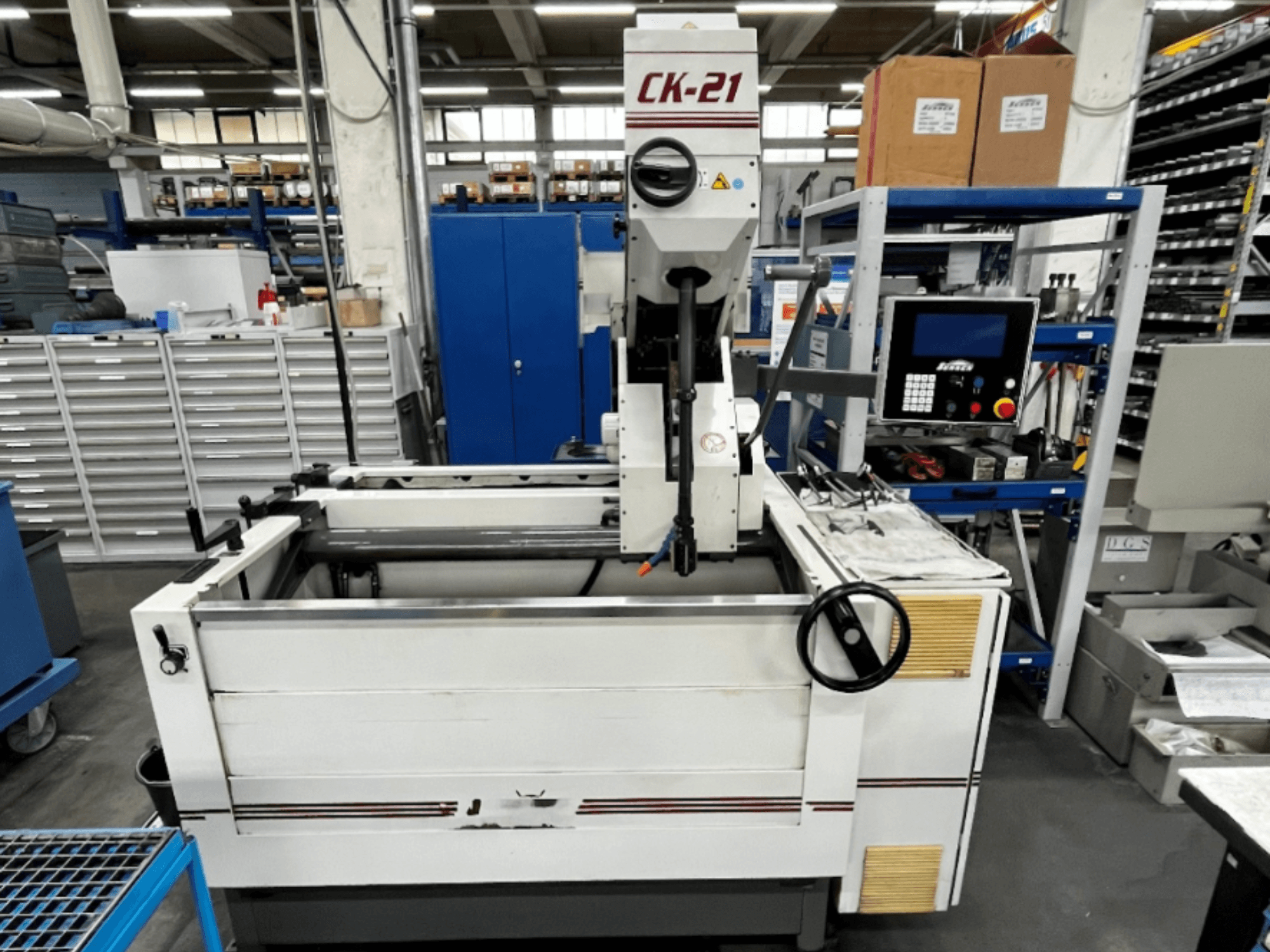

Vertical honing machine manufactured in 2002. This Sunnen CK-21-CC features a maximum stroke of 0.3 m and a tool diameter range of Ø19.05 – 203.2 mm. The machine is in robust condition, with new maintenance and cleaning plans implemented. If you are looking to get high-quality honing capabilities, consider the Sunnen CK-21-CC machine we have for sale. Contact us for further details.
Overview
- brand: Sunnen
- year: 2002
- MODEL: CK-21-CC
- application type: Honing
- Location: Germany
- machine type: Vertical Honing Machine
- Available from: 01/09/2026
Technical Information - Sunnen CK-21-CC
Dimensions
- Machine Height: 2057 mm
- Machine Length: 2781 mm
- Machine Weight: 1360 kg
- Machine Width: 2667 mm
Additional Information
Machine: CNC-controlled vertical honing machine
Bore diameter range (internal Ø): 19–203 mm
Machining area: 1450 × 890 × 812 mm
Max. workpiece/tool weight: 680 kg
Spindle drive power: 3.0 kW
Spindle speed (low range): 90–240 rpm
Spindle speed (high range): 250–550 rpm
Stroke drive power: 0.55 kW
Stroke rate: 40–100 strokes/min
Max. stroke: 0.3 m
Stroke length: 19.05–305.0 mm
Feed system torque: max. 7.4 Nm
Feed rate: max. 0.75 mm/min
Coolant pump flow: 18.9 l/min
Coolant pressure: max. 3.1 bar
Coolant tank capacity: max. 246 l
Machine dimensions: 271.8 × 266.7 × 205.7 cm
Machine weight: 1360 kg
Compressed air requirement: 6 bar
Utilization: 30%
Number of tools: 1
Number of revolvers/magazines: none
Condition: very robust condition considering its age
Measures: spare part purchased (interface machine/tool), new maintenance and cleaning plans implemented
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
