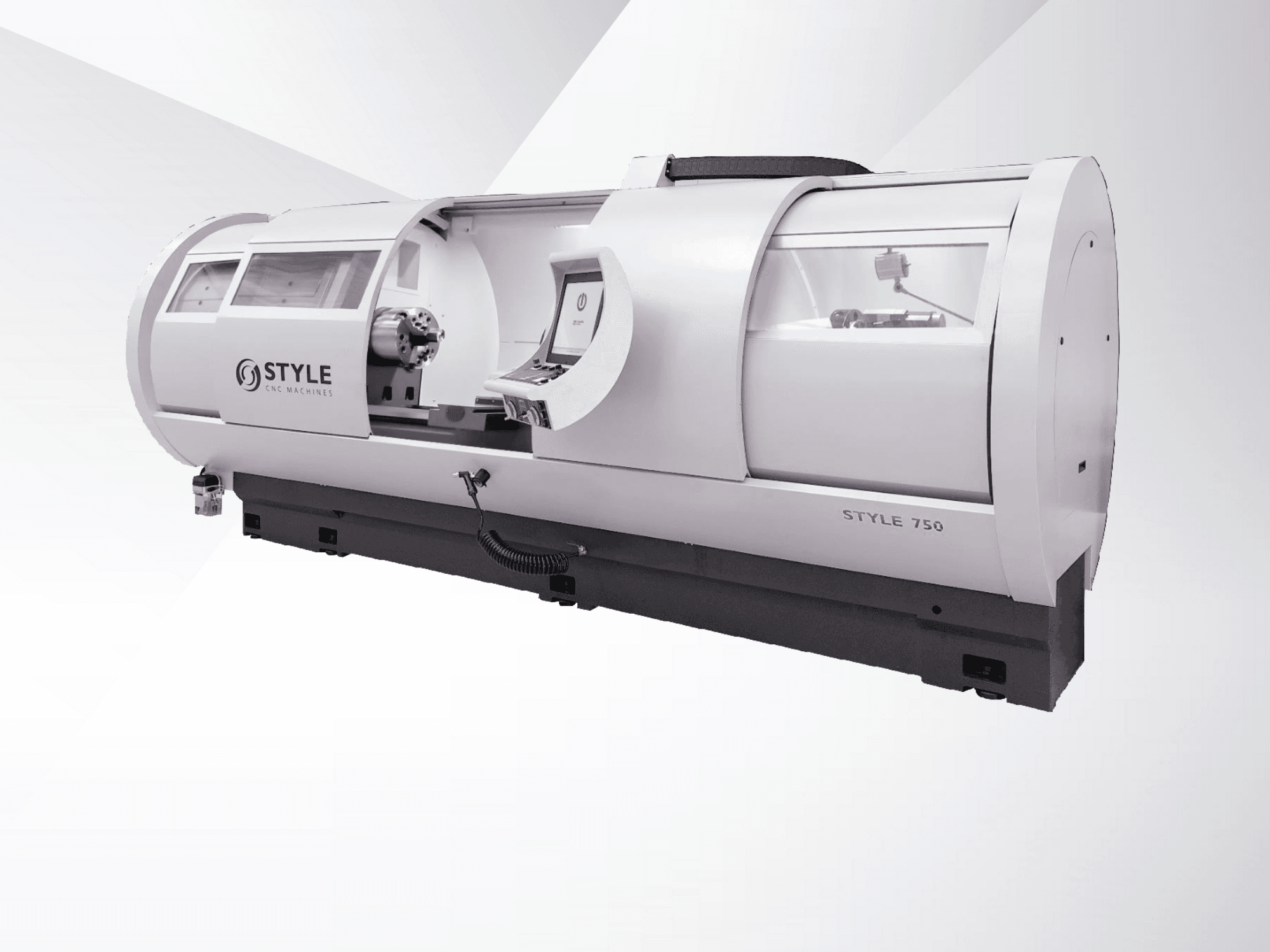

STYLE 750 CNC lathe machine, front view, features large window, control panel, and precision mechanics for advanced machining.
STYLE 750 CNC lathe machine, front view, features large window, control panel, and precision mechanics for advanced machining.

STYLE - 750 (4000dbc)CZ-TUR-STY-2023-00001

Rs. 11,285,552
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Horizontal turning machine manufactured in 2023. This STYLE 750 (4000dbc) features a swing diameter over bed of 750 mm and a distance between centers of 4000 mm. It is equipped with a powerful 26 kW main motor and a maximum spindle speed of 2000 rpm. Consider the opportunity to buy this STYLE 750 (4000dbc) horizontal turning machine. Contact us for further details.

Overview

  • brand: STYLE
  • year: 2023
  • MODEL: 750 (4000dbc)
  • production hours: 540
  • application type: Turning
  • Location: Czech Republic
  • machine type: Horizontal Turning Machine
  • Available from: 16/03/2026

Technical Information - STYLE 750 (4000dbc)

Dimensions

  • Machine Height: 2200 mm
  • Machine Length: 6300 mm
  • Machine Weight: 8150 kg
  • Machine Width: 2300 mm

Movement

  • Number of Axes: 2

Technical Specification

  • Spindle Power: 26 kW
  • Spindle Speed: 2000 RPM

Additional Information

  • Swing diameter over bed: 750 mm

  • Swing diameter over slide: 530 mm

  • Distance between centers: 4000 mm

  • Bed width: 450 mm

  • Maximum load between centers: 1800 kg

  • Maximum load with fixed steady rest (type U): 2500 kg

  • Spindle bore: 105 mm

  • Spindle (A2-11)

  • Axes:

    • X-axis ball screw Ø: 32 mm

    • Z-axis ball screw Ø: 50 mm

    • Rapid traverse: 8 m/min

    • Feed range: 0.01–2000 mm/min

  • Tailstock:

    • Quill diameter: 125 mm

    • Quill stroke: 225 mm

    • Quill taper: MT6

  • Standard equipment (machine-integrated):

    • LED machine lighting

    • Cooling

    • Automatic lubrication

    • Steel ball screw covers

    • Full cover

    • Front sliding door

    • Electronic handwheel

    • Constant cutting speed

Additional equipment

  • Chip conveyor

  • Automatic tool changer, 8 positions, VDI-50

  • Heavy-duty tailstock, desktop version SW

  • 26 kW main motor

  • Oil separator

  • Steady rest D50–300 mm

  • Steady rest D60–400 mm

  • Coolant pump switch

  • 3-jaw chuck Ø315 – Schunk Rota S Plus 2.0

  • Speed potentiometer

  • LED lamp

  • LAN

  • Stronger cooling with gun

  • Handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
