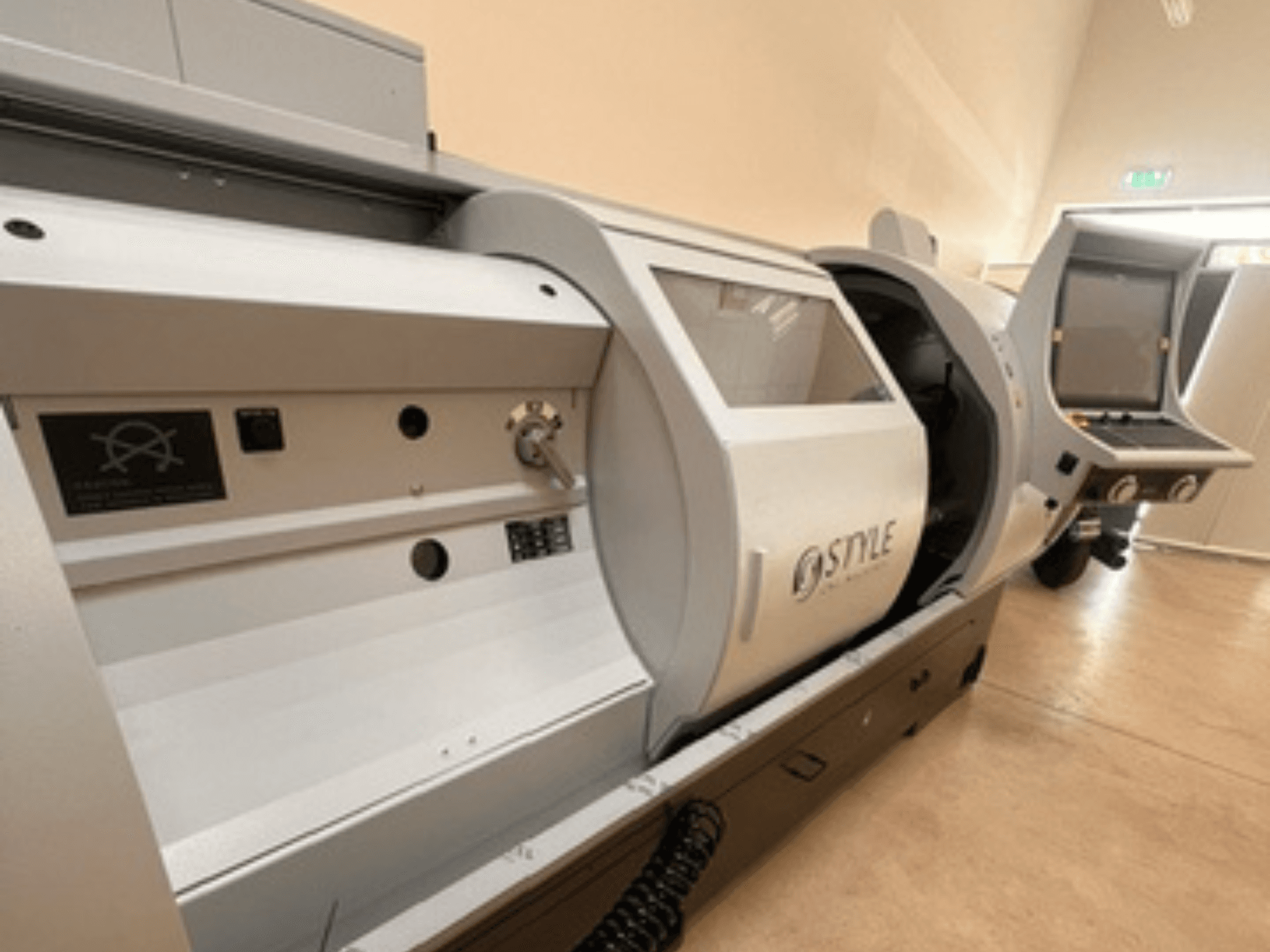

Horizontal turning machine manufactured in 2025. This STYLE 510 (1350) features a swing over bed of 510 mm and a distance between centers of 1,350 mm, accommodating workpieces up to 600 kg. It includes an 8-position automatic VDI-40 turret and a powerful 15 kW spindle with a maximum speed of 2,500 rpm. If you are looking to get high-quality turning capabilities, consider the STYLE 510 (1350) machine we have for sale. Contact us for further details.
Overview
- brand: STYLE
- year: 2025
- MODEL: 510 (1350)
- application type: Turning
- Location: Estonia
- machine type: Horizontal Turning Machine
Technical Information - STYLE 510 (1350)
Dimensions
- Machine Weight: 3000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 510 mm
- Z-axis Travel: 300 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 2500 RPM
Additional Information
Swing over bed: 510 mm
Swing over support: 300 mm
Distance between centers: 1,350 mm
Max workpiece weight between centers: 600 kg
Max workpiece weight with steady rest: 1,150 kg
Spindle bore: 80 mm
Gearbox: 3-speed
Tool changer: 8-position automatic VDI-40 turret
Control unit: STYLE CNC (19" touchscreen, G-code/Fanuc compatible)
Working time: 18 h 59 min
Cutting time: 14 h 21 min
Automatic operation time: 16 h 31 min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
