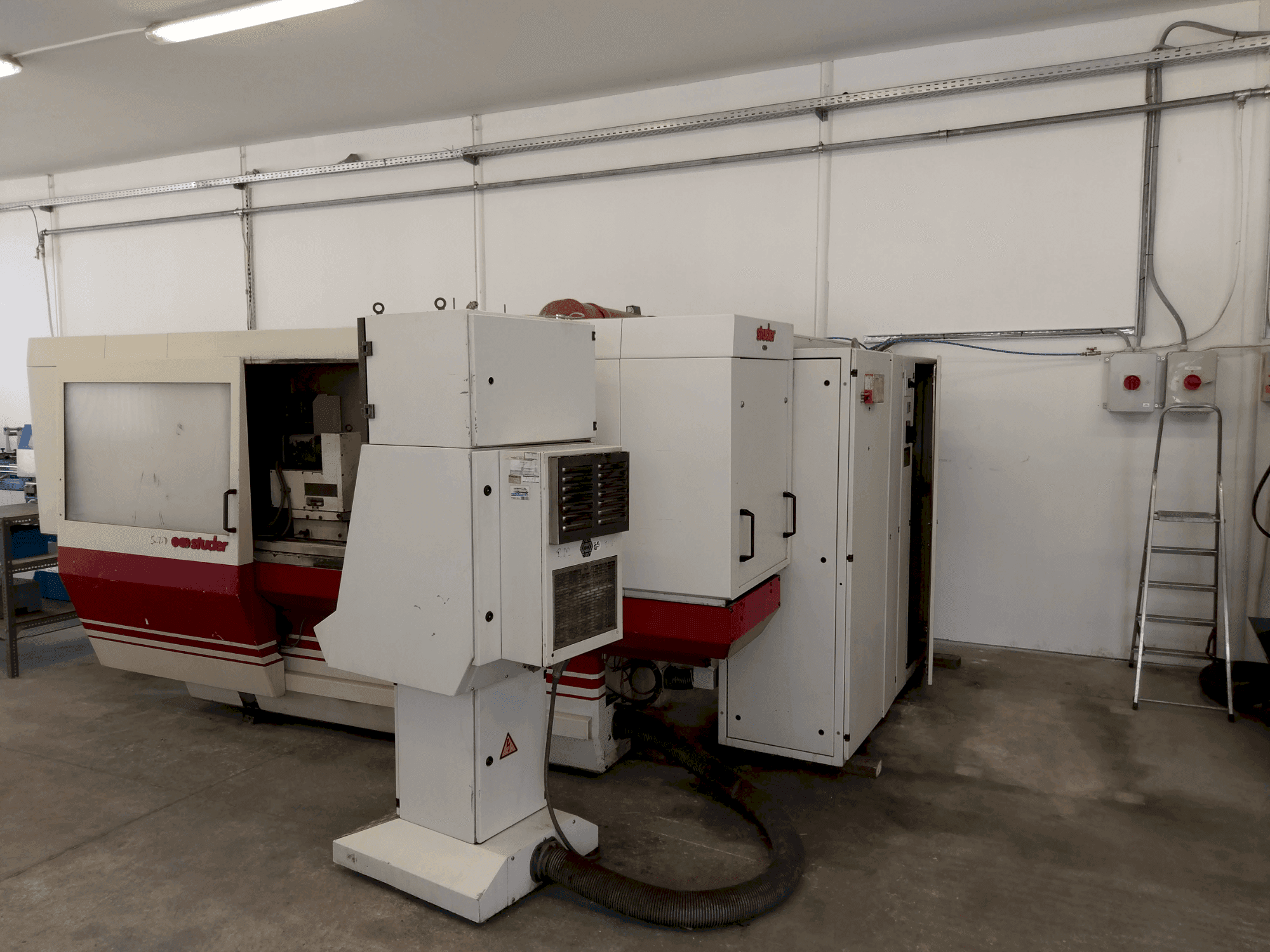

Front view of STUDER  S40  machine

STUDER - S40HU-GRI-STU-1990-00001

Rs. 1,555,850
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This cylindrical grinding machine was manufactured in 1990. Equipped with a turret head for external and internal grinding, a Marposs measuring control unit, and a robust coolant filtration system. It handles a grindable diameter of 450 mm and a length of 1000 mm, supporting a maximum workpiece weight of 130 kg. Consider the opportunity to buy this STUDER S40 cylindrical grinding machine. Contact us for more information about this machine.

Overview

  • brand: STUDER
  • year: 1990
  • MODEL: S40
  • application type: Grinding
  • Location: Hungary
  • machine type: Cylindrical Grinding Machine
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - STUDER S40

General Data

  • Machine weight: 3600 kg

Control Unit

  • Brand: SIEMENS
  • Model: Marposs Measuring Control

Workpiece

  • Workpiece weight: 130 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Grindable diameter: 450 mm // grindable length: 1000 mm
      • - Center height: 225 mm // center distance: 1000 mm
      • - Accessories: chuck, magnetic chuck, flat disc Ø195 mm and Ø400 mm, steady rest
      • - Turret head (external/internal grinding)
      • - Equipped with measuring control unit, coolant filtration system, and additional accessories
      • - Grinding wheel diameter: 400 mm
      • - Wheel bore diameter: 80/127 mm
      • - Power supply/frequency: 380 v / 50 hz
      • - Total power consumption: 22 kva
      • - Space requirement (approx. ): 4. 5 x 2. 1 x 2. 0 m

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
