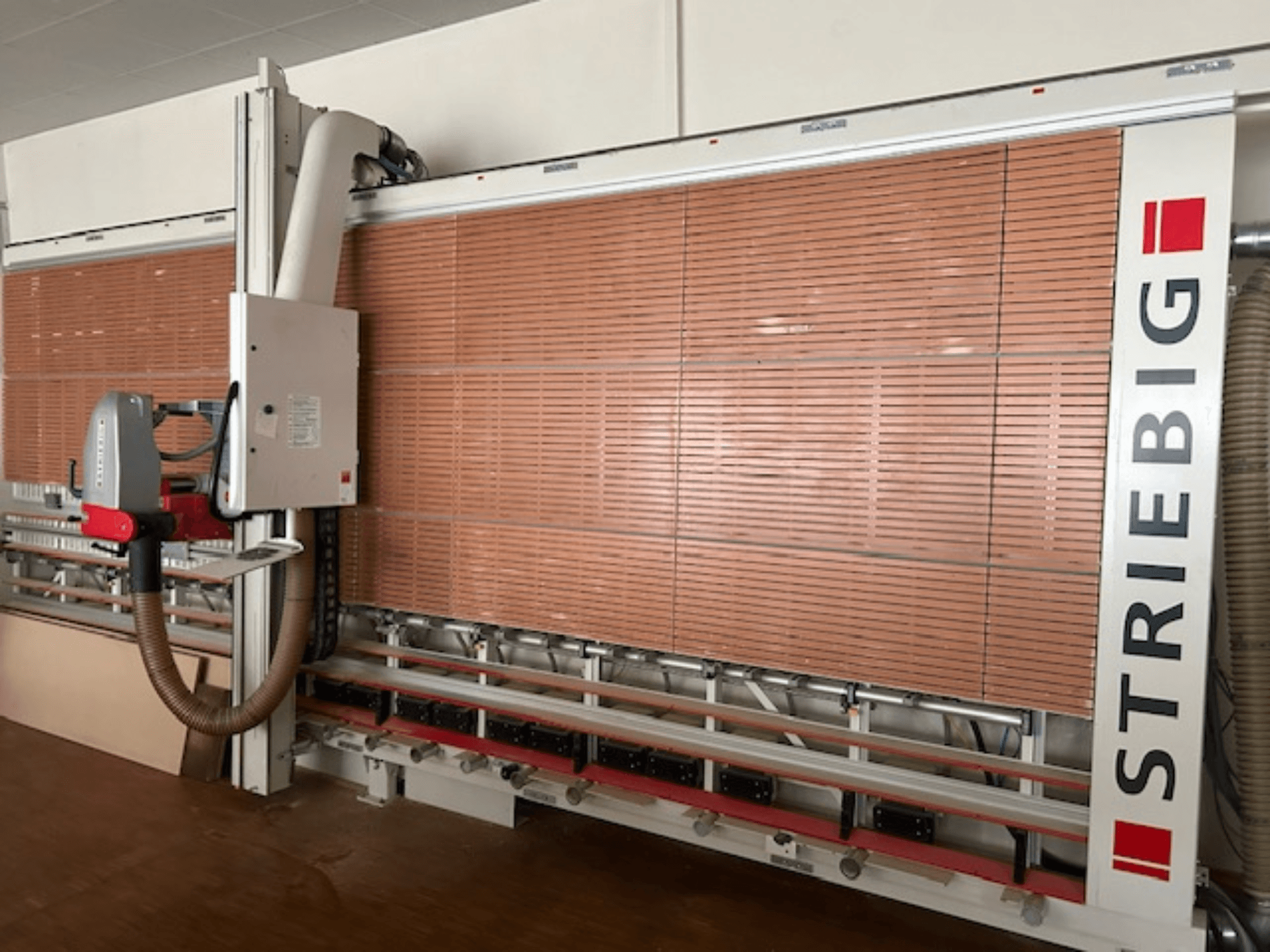

Panel saw manufactured in 2013. This STRIEBIG CONTROL 09 6224 features a cutting area of 5300 × 2240 mm and a maximum cutting depth of 80 mm. It includes advanced functionalities such as four-sided trimming, automatic top and bottom trimming, and a digital measuring system. Consider the opportunity to buy this STRIEBIG CONTROL 09 6224 panel saw. Contact us for further details.
Overview
- brand: STRIEBIG
- year: 2013
- MODEL: CONTROL 09 6224
- application type: Sawing (Wood)
- Location: Germany
- machine type: Panel Saw
Technical Information - STRIEBIG CONTROL 09 6224
Dimensions
- Machine Height: 2650 mm
- Machine Length: 6700 mm
- Machine Weight: 1200 kg
- Machine Width: 1750 mm
Additional Information
Cutting area (L × H): 5300 × 2240 mm
Max. cutting depth: 80 mm
Motor power: 5.5 kW
Features/Options:
Four-sided trimming (4SB)
Automatic top trimming (ABO)
Automatic bottom trimming
Scoring saw unit (VSA)
Digital measuring system (DMS) on both axes
Automatic saw beam locking with interface detection
Laser-assisted display of the horizontal cut
Automatic locking and swiveling of the saw unit
Automatic infeed and outfeed movement of the saw unit
Automatic fine adjustment of the saw motor
Full-surface birch plywood support wall with integrated small parts support
Selectable cutting cycle
7.5" color touchscreen for visualization and operation
Condition: Good working condition (machine was only used for testing purposes)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
