STM - WS3030 Wanne 4.2PL-CUT-STM-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used STM WS3030 Wanne 4.2 For Sale | gindumac.com

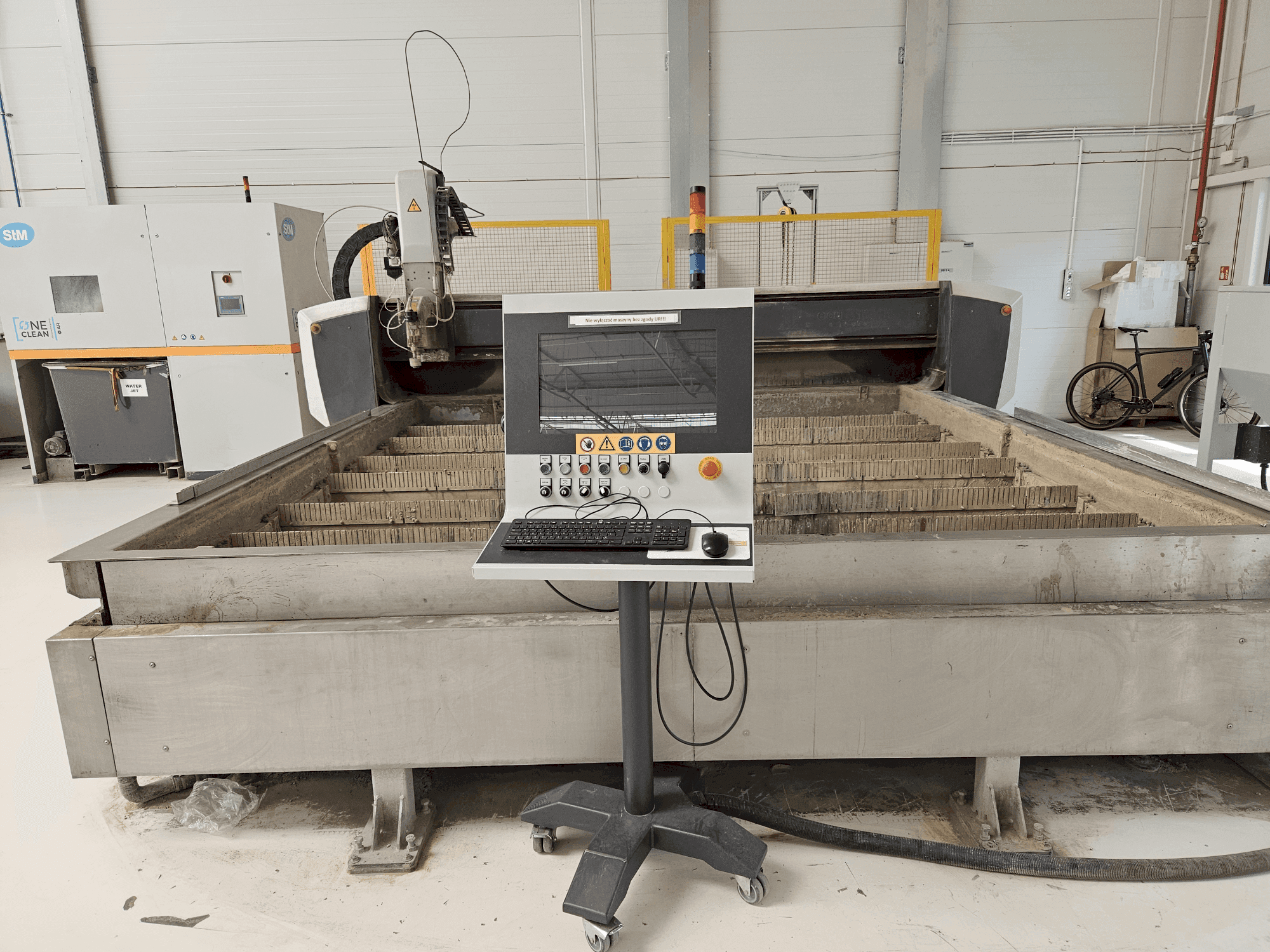

This 3-axis STM WS3030 Wanne 4.2 was manufactured in 2019, featuring a robust 3002 × 3002 × 300 mm working area and a high max operating pressure of 4000 bar. It includes dual BFT high-pressure pumps with a backup function, ensuring reliability. The system supports a Num Flexium 8 control and IGEMS software. If you are looking to get high-quality cutting capabilities consider the STM WS3030 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: STM
- year: 2019
- MODEL: WS3030 Wanne 4.2
- production hours: 9500
- application type: Cutting
- Location: Poland
- machine type: Waterjet Cutting Machine
Additional Information
Additional equipment
- Extra pump for One Clean unit / Service tools for high-pressure pump / Spare high-pressure pipes for water transport
Machine Benefits
Qualitative Machine Benefits
- Very good working condition / full documentation available
Technical Machine Benefits
- Working area (x, y, z): 3002 × 3002 × 300 mm / bearing surface (x, y): 3545 × 3125 mm / dimensions of machine (l × w × h): 5250 × 4700 × 2950 mm / weight (with water): 9600 kg / positioning speed (max): 30 m/min / repeat accuracy: ±0. 01 mm / electrical connection: 400 v / 50 hz / 16 a / water connection: 2–5 bar / operating temperature: +10°c to +40°c / noise level: approx. 84 db / max operating pressure: 4000 bar
- Control: num flexium 8 / software: igems r2019. 2. 1966 / license: on usb pendrive
- Backup function: yes – second pump activates if first fails / dimensions (l × w × h): 1950 × 970 × 1400 mm / weight: 1430 kg / rated voltage: 3× 400 v / 50 hz / power requirement: 125 a, 47 kw / water connection: 2–5 bar/ max flow rate: 4. 6 l/min / max operating pressure: 4000 bar
- Water preparation station: dimensions (l × w × h): 600 × 330 × 1110 mm / electrical connection: 230 v / 50 hz / 16 a
- Abrasive recovery unit: dimensions (l × w × h): 2400 × 1200 × 2350 mm / electrical connection: 400 v / 50 hz / 32 a / power: 11 kw
- Abrasive tank : dimensions (l × w × h): 1000 × 1000 × 1500 mm / capacity: approx. 1 m³
- Protective cover : dimensions (l × w × h): 6500 × 6000 × 2100 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
