➤ Used Starrag Heckert Dynamic CWK 400D | Machining Center

Show in original language

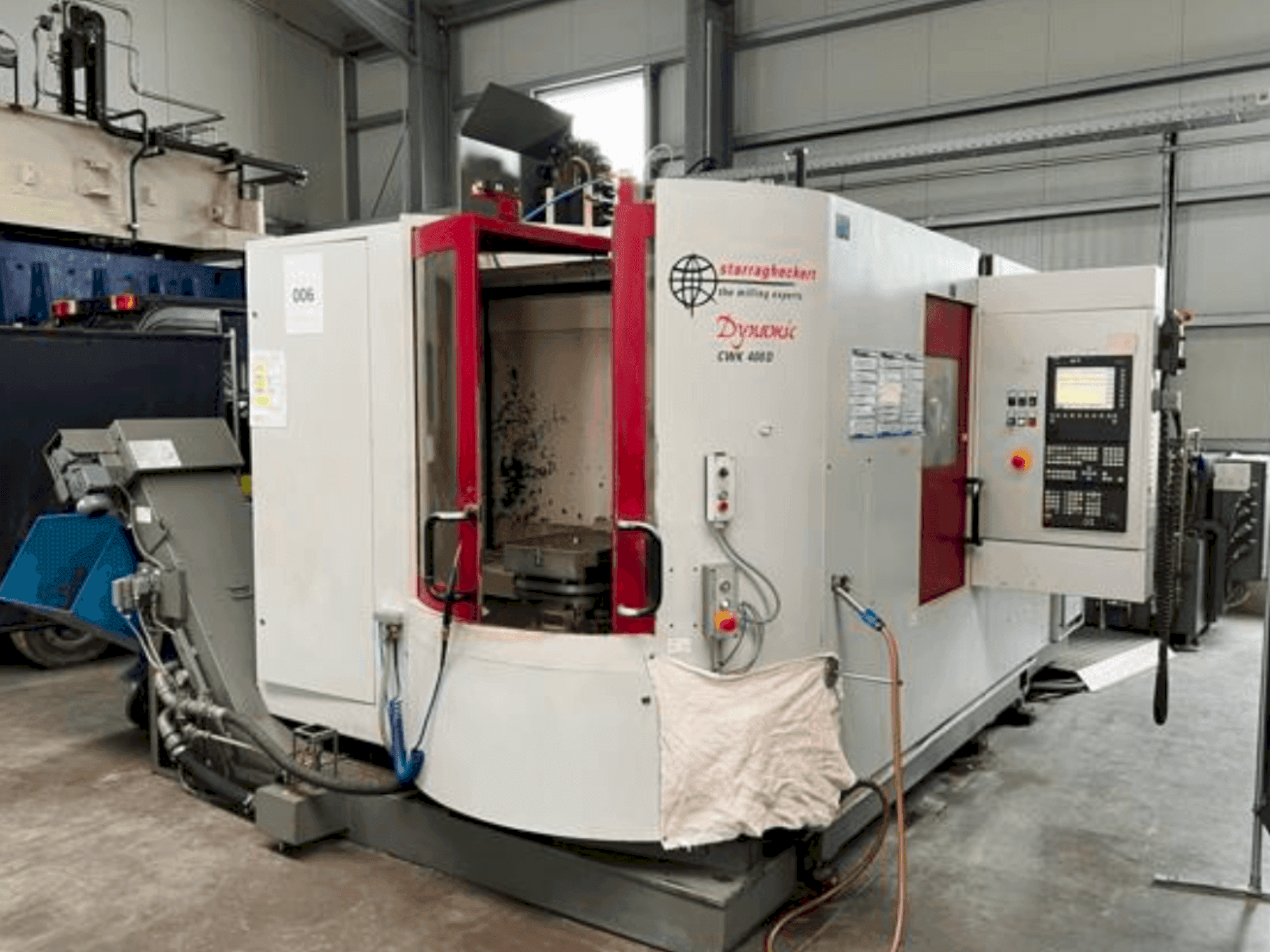

This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: Starrag Heckert
year: 2005
MODEL: Dynamic CWK 400D
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - Starrag Heckert Dynamic CWK 400D

General Data

Measurements width: 4800 mm
Measurements depth: 5800 mm
Machine weight: 12800 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 24 kW
Number of axis: 4

Movement

X-AXIS Movement: 625 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 650 mm
Z-AXIS Rapid traverse: 40 m/min

Table

Table load: 4000 kg

Tools

Max weight: 10 kg
Max tool diameter: 80 mm
Max tool length: 350 mm
Type of tool holder: DIN 69893-HSK-A63

Media

Chip conveyor: Yes

Additional equipment

- Renichaw measuring probe
- Tool breakage detection: Yes, in tool magazine
- Flushing gun at the setup station
- Waterfall shower
- Paper belt filter
- Pallet sequential operation
- Enclosed work area enclosure according to UW
- Computer connection via Ethernet interface
- Network connection

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bia axis: b-axis (360 x 0. 001°) 100 rpm
- - Working feed range x/y/z: 1-4000 mm/min
- - Table/pallet size (l x w in mm): 2 pallets 500 x 400 mm
- - Table/pallet alignment type: t-slots according to din 55201
- - Pallet changer / setup station / storage space: yes // pallet change / tool change time: 8 sec / 5 sec
- - Table/pallet load (in kg): 4000 kg
- - Tool magazine type: chain magazine
- - Tool diameter with free adjacent positions: 160 mm
- - Max. Total tool weight: 200 kg
- - Tool magazine positions: 60

Extra information

- Technical documents and layout plan available Machine-Specific Data Machine accuracy: VDI/DGQ 3441 Media Coolant type/content: Emulsion (internal & external) / approx. 1100L Coolant unit: Knoll with fleece filter 30, 40, 50 bar via M command

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
