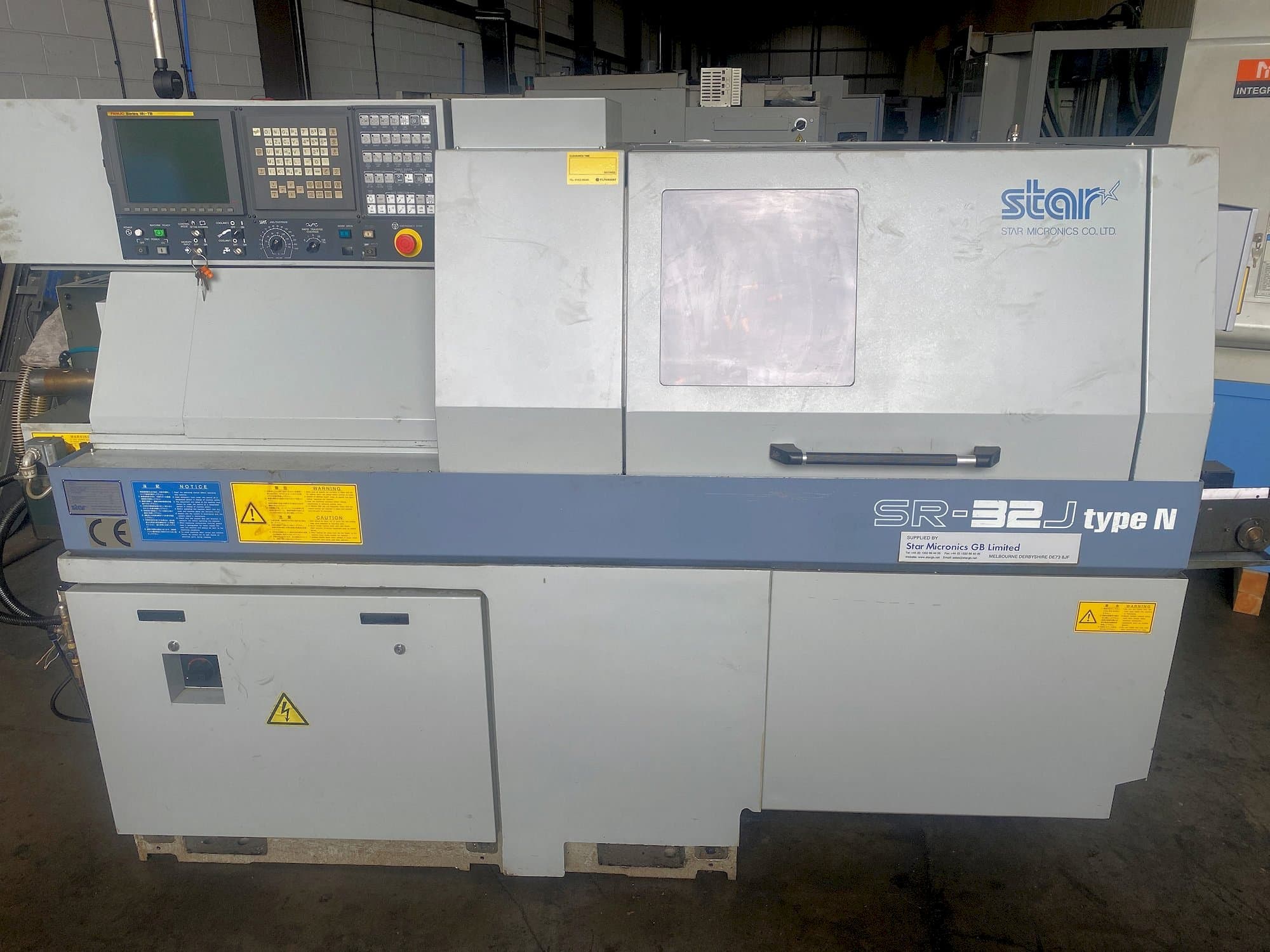

Front view of Star SR-32J type N machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Star SR-32J type N

Photo Gallery

Star - SR-32J type NGB-TUR-STA-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Star SR-32J type N Lathe

Show in original language

This Star SR-32J type N Lathe was manufactured in Japan in the year 2011. It has been running for 22056 hours of which 11183 are cutting hours. It is equipped with a FANUC Series 18I-TB control unit. It can work with a spindle speed up to 7000 rpm. It includes a Bar feed FMB TURBO 3-36/3200

Overview

brand: Star
year: 2011
MODEL: SR-32J type N
production hours: 22056
application type: Turning
Location: United Kingdom
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SR-32J type N

General Data

Measurements width: 2711 mm
Measurements depth: 1275 mm
Measurements height: 1705 mm
Machine weight: 3100 kg

Control Unit

Model: Series 18I-TB
Brand: FANUC

Main drive

Spindle speed range: 7000 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 7

Media

Power consumption: 6 kVA

Additional Information

Additional equipment

Barfeed FMB TURBO 3-36/3200

Machine Benefits

Technical Machine Benefits

Maximum cutting diameter 32 mm
Maximum cutting length 80 mm
Maximum drilling diameter 8 mm
Maximum tapping capacity m 610
Milling rpm 5000 rpm @ 1. 2 kw
Bar capacity 32 mm
Sub spindle max speed 7000 rpm @ 3. 7 kw
Tool change capacity 6 + 4 + 4 + 5 + 4
Swarf conveyor, tooling, coolant, parts conveyor, c axis (0. 001degree)
Number of axis controlled 7 (z, zb, x, xb, c1, c2. Y)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
