STAMA MC 326

Photo Gallery

STAMA - MC 326 DE-MIL-STA-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used STAMA MC 326 For Sale | gindumac.com

Show in original language

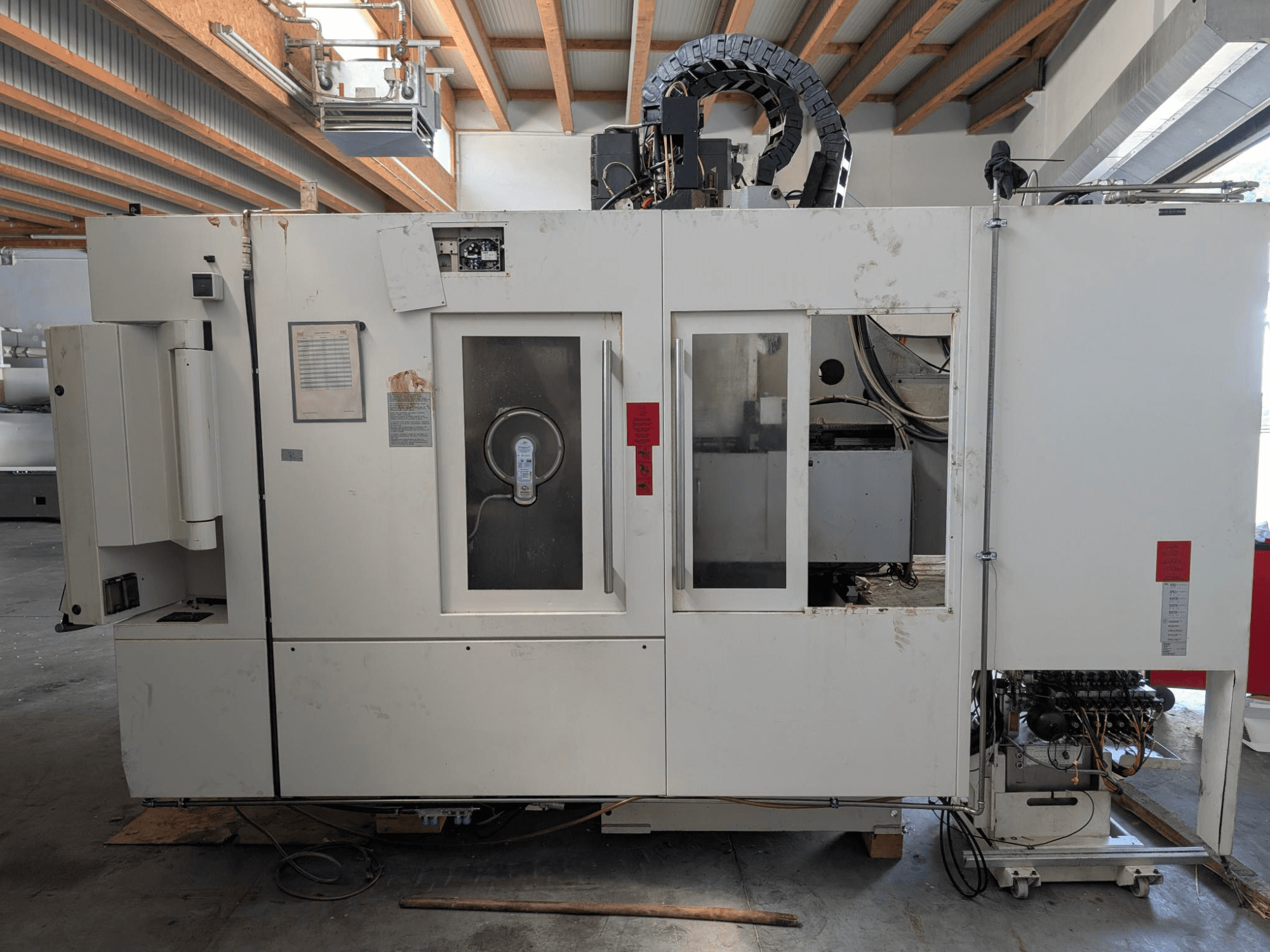

This 4-axis STAMA MC 326 vertical machining centre was manufactured in 2011. It features a travel of 700 mm in the X-axis, 400 mm in the Y-axis, and 360 mm in the Z-axis. The machine is equipped with a spindle power of 18.5 kW and a tool magazine capacity of 48 tools. If you are looking to get high-quality machining capabilities, consider the STAMA MC 326 machine we have for sale. Contact us for further details.

Overview

brand: STAMA
year: 2011
MODEL: MC 326
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - STAMA MC 326

Control Unit

Control Brand: SIEMENS
Control Model: 840D

Dimensions

Machine Weight: 6200 kg

Movement

Number of Axes: 4
X-axis Travel: 700 mm
Y-axis Travel: 400 mm
Z-axis Travel: 360 mm

Technical Specification

Max. Tool Weight: 5 kg
Spindle Power: 18.5 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40

Additional Information

Rapid traverse (X/Y/Z): 60 m/min
Feed rate: 1–10,000 mm/min
Acceleration: X/Y 5 m/s², Z 12 m/s²
Spindle: up to 300 Nm
Tool magazine: 48 tools; max tool Ø 88 mm; max tool length 300 mm; tool change approx. 2.4 s
Rotary table: diameter 180 mm (NC 4th axis)
Coolant system: tank 900 L; filtration 50 µm; pressure up to 25 bar
Hydraulics: 250 bar
Compressed air supply: 6 bar
Connected load: 28 kVA
Power supply: 3 × 400 V / 50 Hz

Additional equipment

Rear chip conveyor
NC rotary table (4th axis), Ø 180 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
