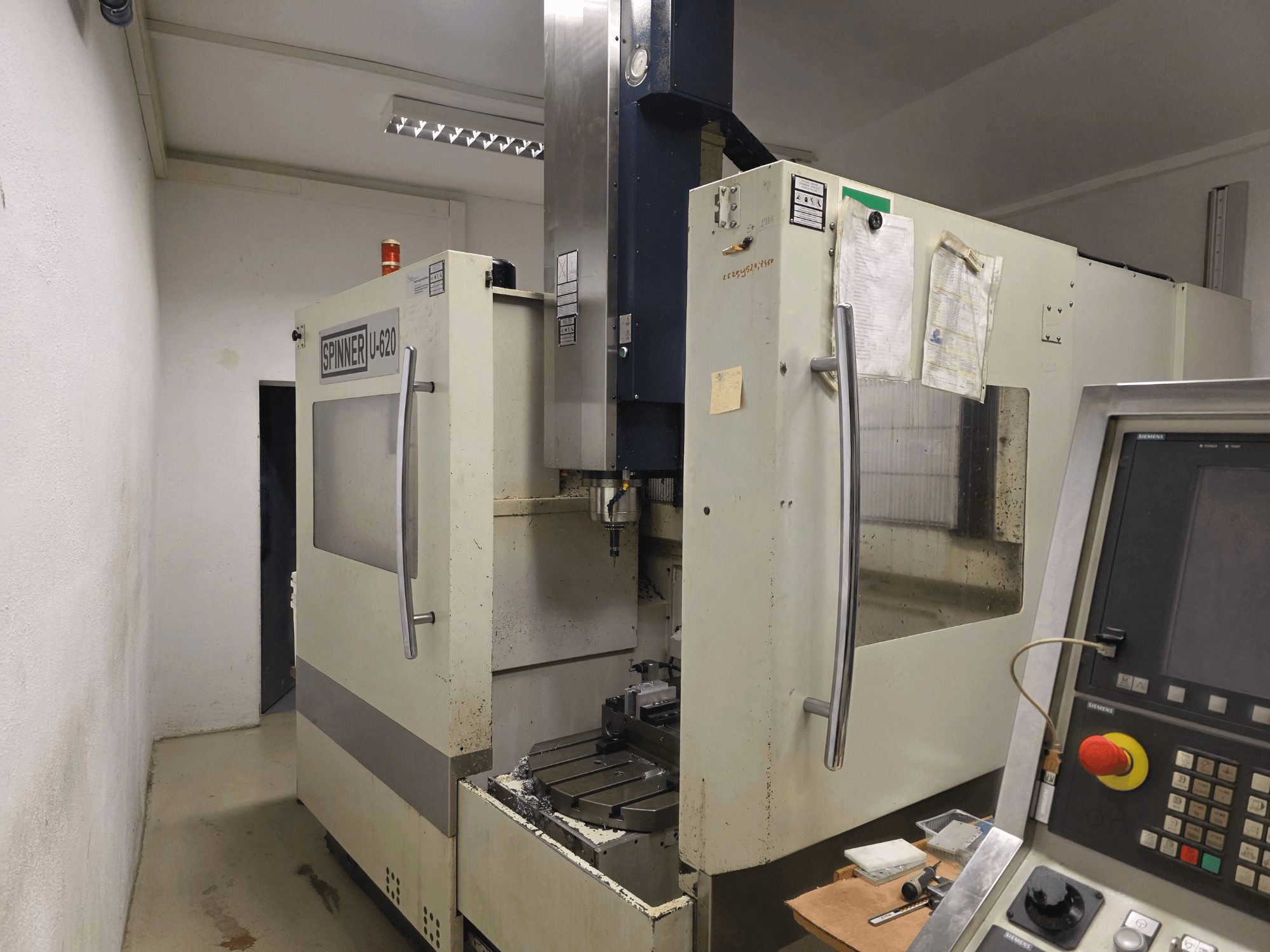

This 5-axis SPINNER U5-620 was manufactured in 2008. It operates on a supply voltage of 400 V and a frequency of 50/60 Hz, with a nominal current of 50 A. If you are looking to get high-quality machining capabilities, consider the SPINNER U5-620 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2008
- MODEL: U5-620
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - SPINNER U5-620
Movement
- Number of Axes: 5
- X-axis Travel: 620 mm
- Y-axis Travel: 520 mm
- Z-axis Travel: 420 mm
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Supply voltage: 3/PE ~ 400 V (3-phase with protective earth)
Frequency: 50 / 60 Hz
Operating current (IB): 42 A
Nominal current (IN): 50 A
Max. swing diameter: 800 mm
Main spindle:
Max. torque: 175 Nm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
