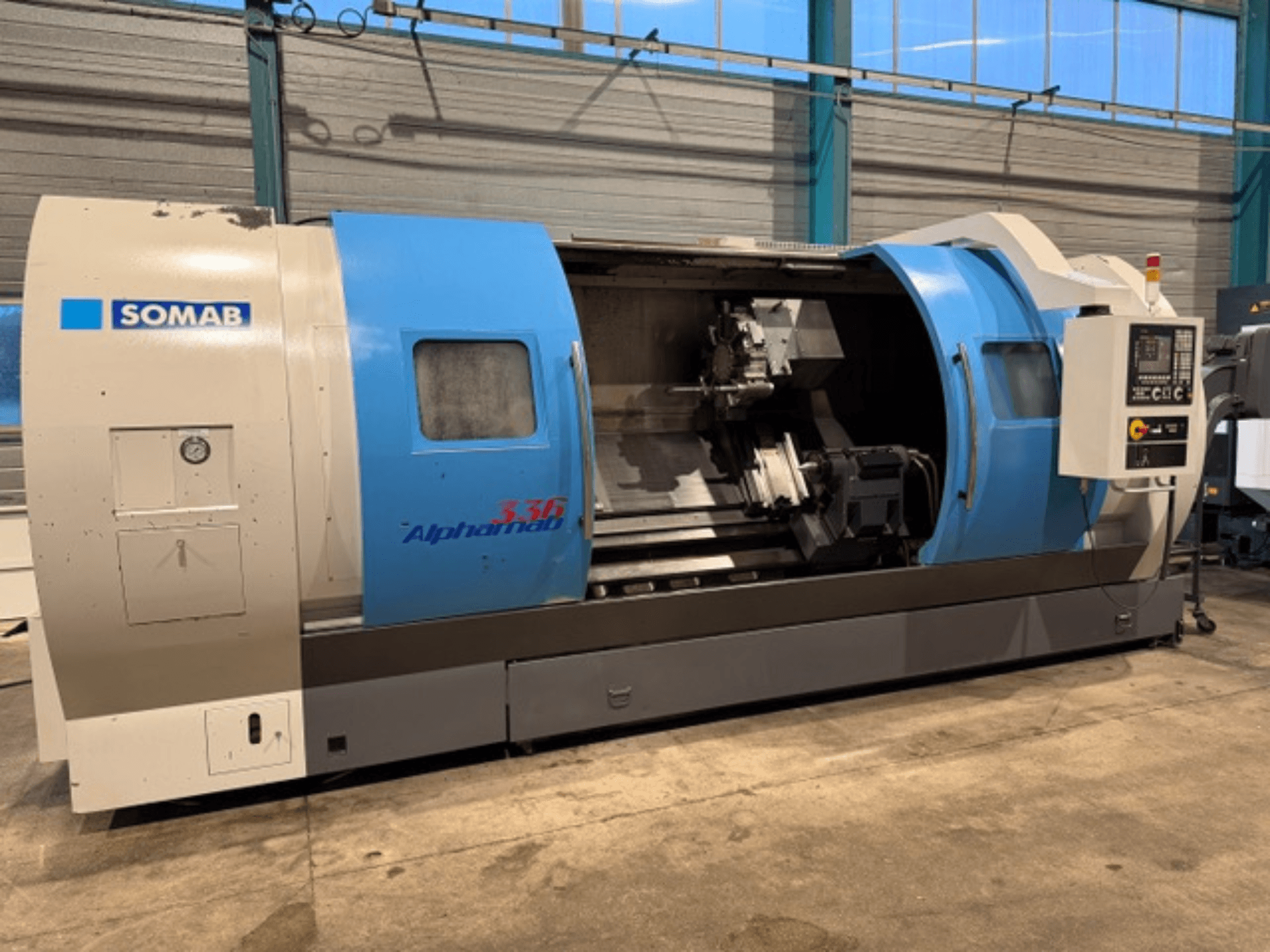

Horizontal turning machine manufactured in 2012. This SOMAB ALPHAMAB 336 EP2200 features a maximum turning diameter of 800 mm and a distance between centers of 2200 mm. It includes a 12-station automatic turret and a spindle speed of 0–2100 rpm. If you are looking to get high-quality turning capabilities, consider the SOMAB ALPHAMAB 336 EP2200 machine we have for sale. Contact us for further details.
Overview
- brand: SOMAB
- year: 2012
- MODEL: ALPHAMAB 336 EP2200
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
Technical Information - SOMAB ALPHAMAB 336 EP2200
Movement
- Number of Axes: 2
Additional Information
Capacity: Max turning diameter over bed 800 mm; over carriage 630 mm; distance between centers 2200 mm
Rapid traverse: X 20 m/min; Z 24 m/min
Spindle: A2-11" nose; 131 mm bore
Turret: 12 stations; 32 × 32 mm tools
Electronic handwheel
Air-conditioned electrical cabinet
3-color status lamp
Hydraulic tailstock CM6; quill stroke 130 mm
Automatic centralized lubrication
Condition: Very good
Additional equipment
Chip conveyor
Coolant system
Manual 4-jaw chuck Ø 600 mm
Manual 6-jaw chuck Ø 400 mm
Self-centering steady rest
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
