➤ Used SMG SH410 - Machine Tool For Sale | gindumac.com

Show in original language

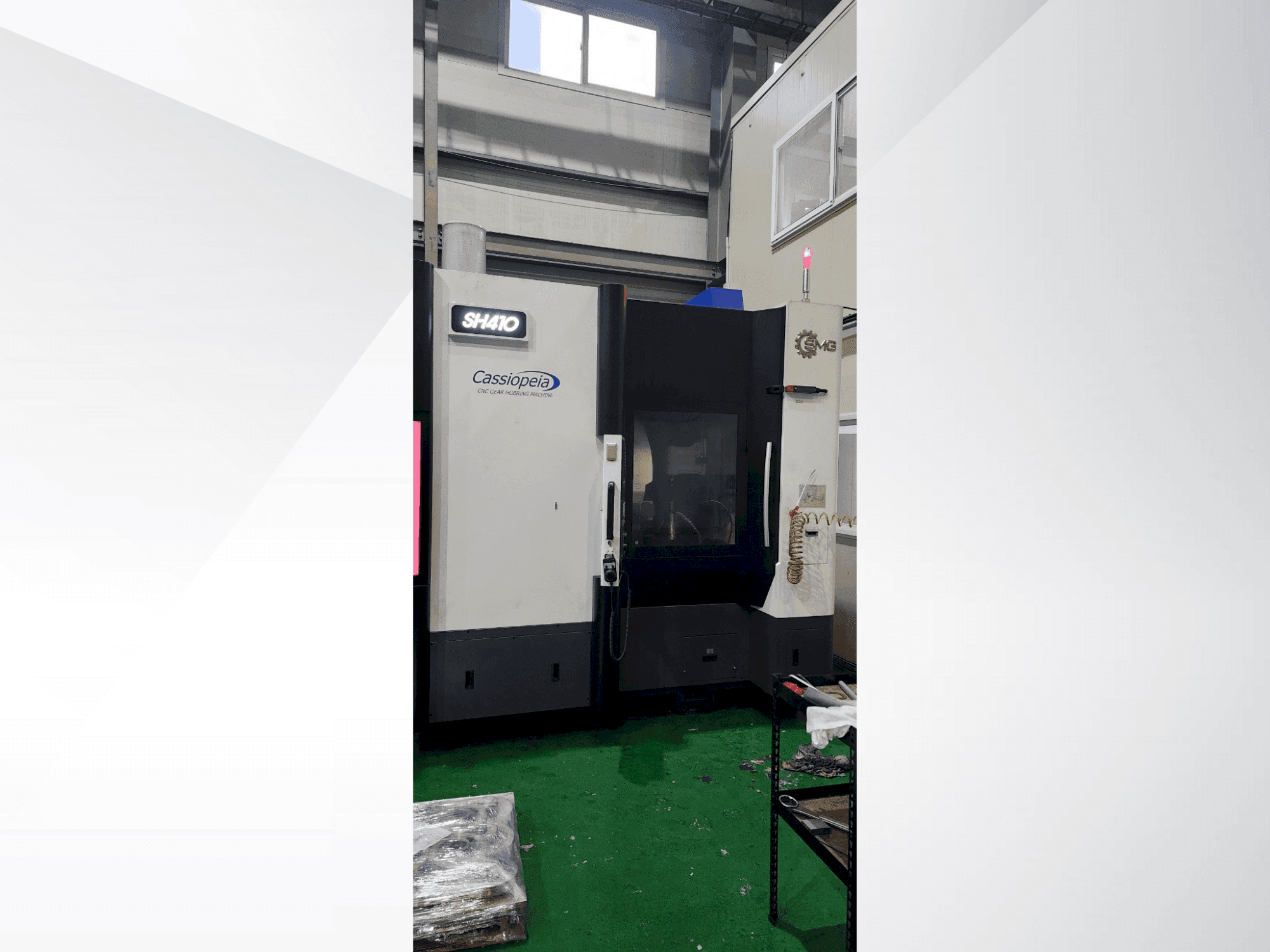

This 6-axis SMG SH410 was manufactured in 2022, featuring a robust Siemens 840D SL CNC control system. It handles a maximum workpiece diameter of Ø410 mm and a module up to M8. The machine offers extensive travel with X-axis at 290 mm and Z-axis at 370 mm, supporting complex machining tasks. Consider the opportunity to buy this SMG SH410 for advanced milling capabilities. Contact us for more information about this machine.

Overview

brand: SMG
year: 2022
MODEL: SH410
application type: Other Machine Tools
Location: South Korea
machine type: Machine Tool
availability: Immediately

Technical Information - SMG SH410

General Data

Measurements width: 2950 MM
Measurements depth: 2941 MM
Measurements height: 2990 MM
Machine weight: 11000 KG

Main drive

Number of axis: 6

Movement

X-AXIS Movement: 290 MM
X-AXIS Rapid traverse: 12 m/min
Y-AXIS Movement: 200 MM
Y-AXIS Rapid traverse: 5 m/min
Z-AXIS Movement: 370 MM
Z-AXIS Rapid traverse: 12 m/min

Workpiece

Workpiece drm: 410 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum module: m8
- - Maximum table speed: 200 rpm
- - Table diameter: Ø330 mm
- - Tailstock center travel: 400 mm (range: 215 ~ 615 mm)
- - Maximum hob diameter/length: Ø180 mm / 240 mm
- - Maximum hob speed: 1000 rpm
- - Hob swivel angle: ±45°
- - Hob arbor taper: bt #40
- - Hob spindle output power: 12 / 16 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
