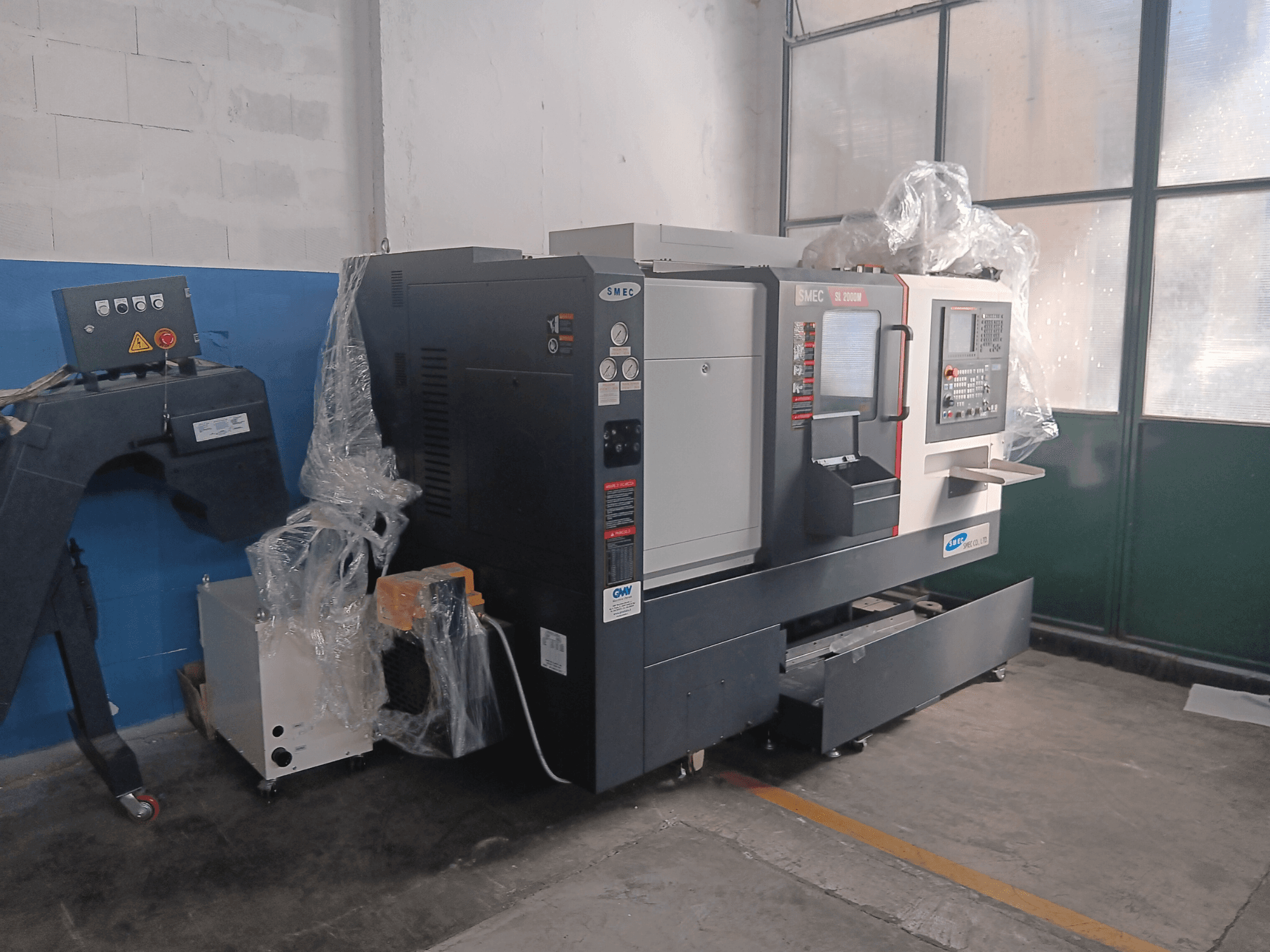

SMEC SL2000M B TYPE horizontal turning machine, side view, featuring control panel and protective plastic wrap.
SMEC SL2000M B TYPE horizontal turning machine, side view, featuring control panel and protective plastic wrap.

SMEC - SL2000M (B TYPE) IT-TUR-SME-2023-00001

Rs. 6,623,771
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis SMEC SL2000M (B TYPE) was manufactured in 2023. It features a maximum turning diameter over bed of 510 mm and a turning length of 540 mm. The machine is equipped with a hydraulic 3-jaw chuck and a spindle speed of up to 4,500 rpm. If you are looking to get high-quality turning capabilities, consider the SMEC SL2000M (B TYPE) horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: SMEC
  • year: 2023
  • MODEL: SL2000M (B TYPE)
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - SMEC SL2000M (B TYPE)

Control Unit

  • Control Brand: FANUC
  • Control Model: 0i-TF PLUS

Dimensions

  • Machine Height: 1920 mm
  • Machine Length: 2643 mm
  • Machine Weight: 4000 kg
  • Machine Width: 1560 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 210 mm
  • Z-axis Travel: 560 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: Yes
  • Spindle Power: 18.5 kW
  • Spindle Speed: 4500 RPM

Additional Information

  • Type/Configuration: CNC turning center with C-axis and live tooling; 12-station turret (24 positions); programmable tailstock; no sub-spindle

  • Capacity:

    • Max turning diameter over bed: 510 mm

    • Max turning diameter over/on carriage: 360 mm

    • Max turning length: 540 mm

    • Bar capacity: 68 mm

  • Spindle:

    • Nose: A2-6"

    • Hydraulic chuck size: 200 mm

    • C-axis: continuous

  • Axes/Travels:

    • Axis motor power (X/Z): 1.8 / 3.0 kW

    • Guide inclination: 45°

  • Rapid traverse and ballscrews:

    • X rapid: 24 m/min; ballscrew Ø28 mm

    • Z rapid: 30 m/min; ballscrew Ø40 mm

  • Turret/Tooling:

    • Stations: 12 (24 positions)

    • Interface: BMT55

    • Driven tool power: 3.7 / 5.5 kW

    • Driven tool speed: 5,000 rpm

    • Indexing time: 0.15 s

    • External tool size: 25 × 25 mm

    • Internal tool size: Ø40 mm

  • Tailstock:

    • Taper: CM4

    • Body travel: 450 mm

    • Quill Ø: 75 mm; travel: 80 mm

    • Thrust: 5,047 Nm

  • Coolant system:

    • Tank capacity: 185 L

    • Pump power: 0.5 kW

    • Flow: 20 L/min

    • Pressure: 5 bar

  • Electrical:

    • Power requirement: 31 kVA

    • Voltage: 380 V ±10%, 3-phase

  • CNC/Control:

    • Fanuc 0i-TF PLUS, axes: X, Z, C

    • Display: 10.4" LCD

    • Interfaces: USB, Ethernet, RS232

    • Functions: rigid tapping

Additional equipment

  • Hydraulic 3-jaw chuck Ø200 mm

  • Chip conveyor

  • Tool presetter

  • Tool holder set:

    • 2 axial driven tools

    • 2 radial driven tools

    • 1 tilting driven tool ER16

  • Industry 4.0 package:

    • CNC data monitoring capability

    • Remote monitoring via FOCAS libraries

    • Production data interface

  • Also included: automatic lubrication system, coolant system, work lamp, electrical cabinet with heat exchanger

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
