SMD - PBH 110-3100-4CNL-BEN-SMD-2004-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- SMD PBH 110-3100-4C Bending Machine
Show in original language

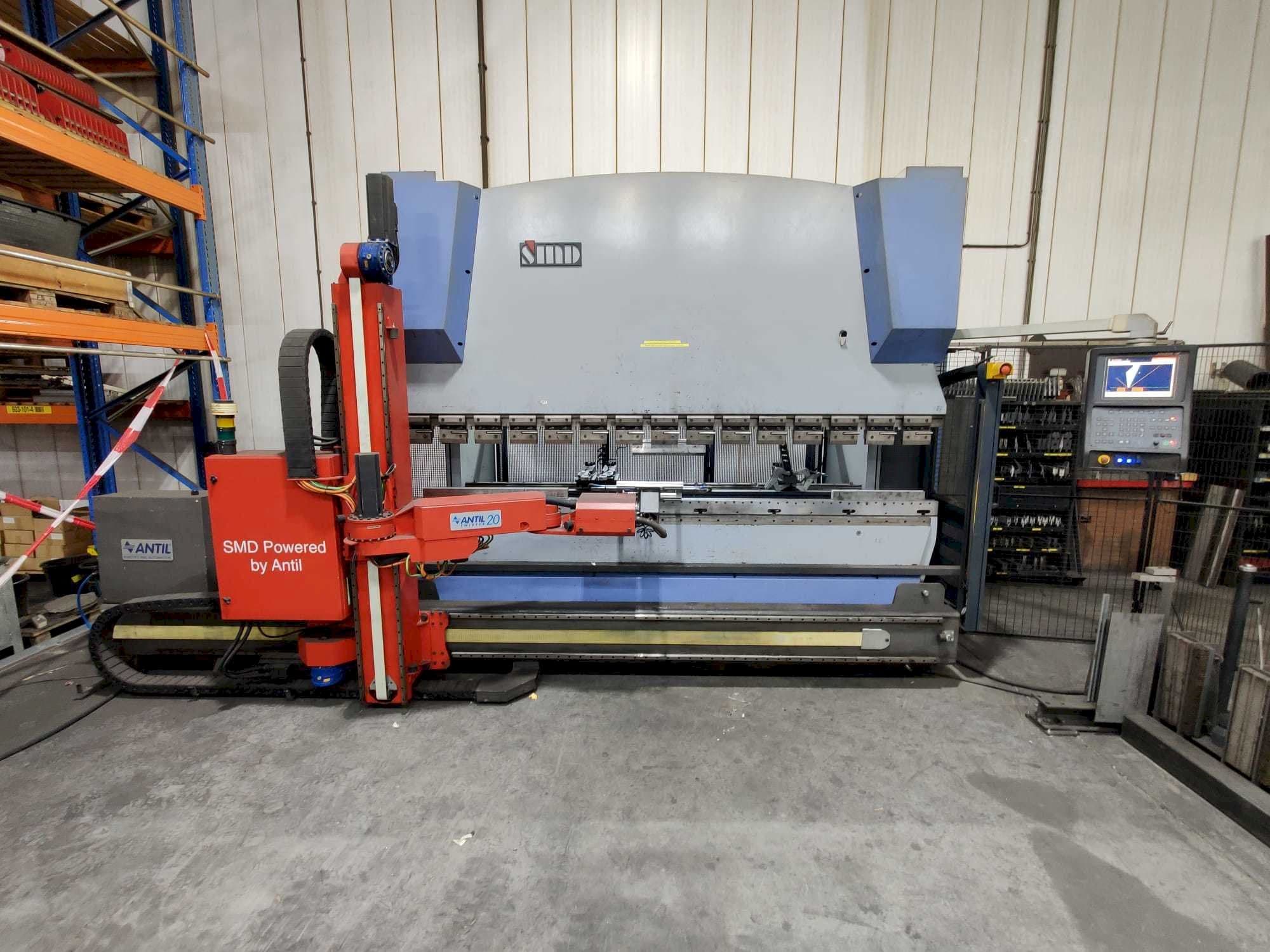

This SMD PBH 110-3100-4C Bending Machine was made in 2004 in The Netherlands. It has 13344 working hours. It is equipped with a ModEva 12 control unit. This machine counts with a pressing force power of 1100 kN, and a bending length of 3100 mm. ANTIL TWISTER 20 ROBOT is excluded.
Overview
- brand: SMD
- year: 2004
- MODEL: PBH 110-3100-4C
- production hours: 13344
- application type: Bending
- Location: Netherlands
- machine type: Press Brake
Technical Information - SMD PBH 110-3100-4C
Dimensions
- Machine Depth: 1550 mm
- Machine Height: 2850 mm
- Machine Weight: 9500 kg
Technical Specification
- Bending Length: 3100 mm
- Max. Stroke: 265 mm
- Pressing Force: 1100 Kn
Additional Information
Additional equipment
- ANTIL TWISTER 20 ROBOT is excluded
Machine Benefits
Technical Machine Benefits
- Max. Closing speed: 150mm/s
- Max. Bending speed: 10mm/s
- Max. Retour speed: 120mm/s
Extra Information
AUTOMATION: ANTIL TWISTER 20 ROBOT, YEAR: 2006, WEIGHT: 1000KG, can be bought for an additional amount
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
