- ➤ Used SCM Record 125 N - 2007 - For Sale | gindumac.com

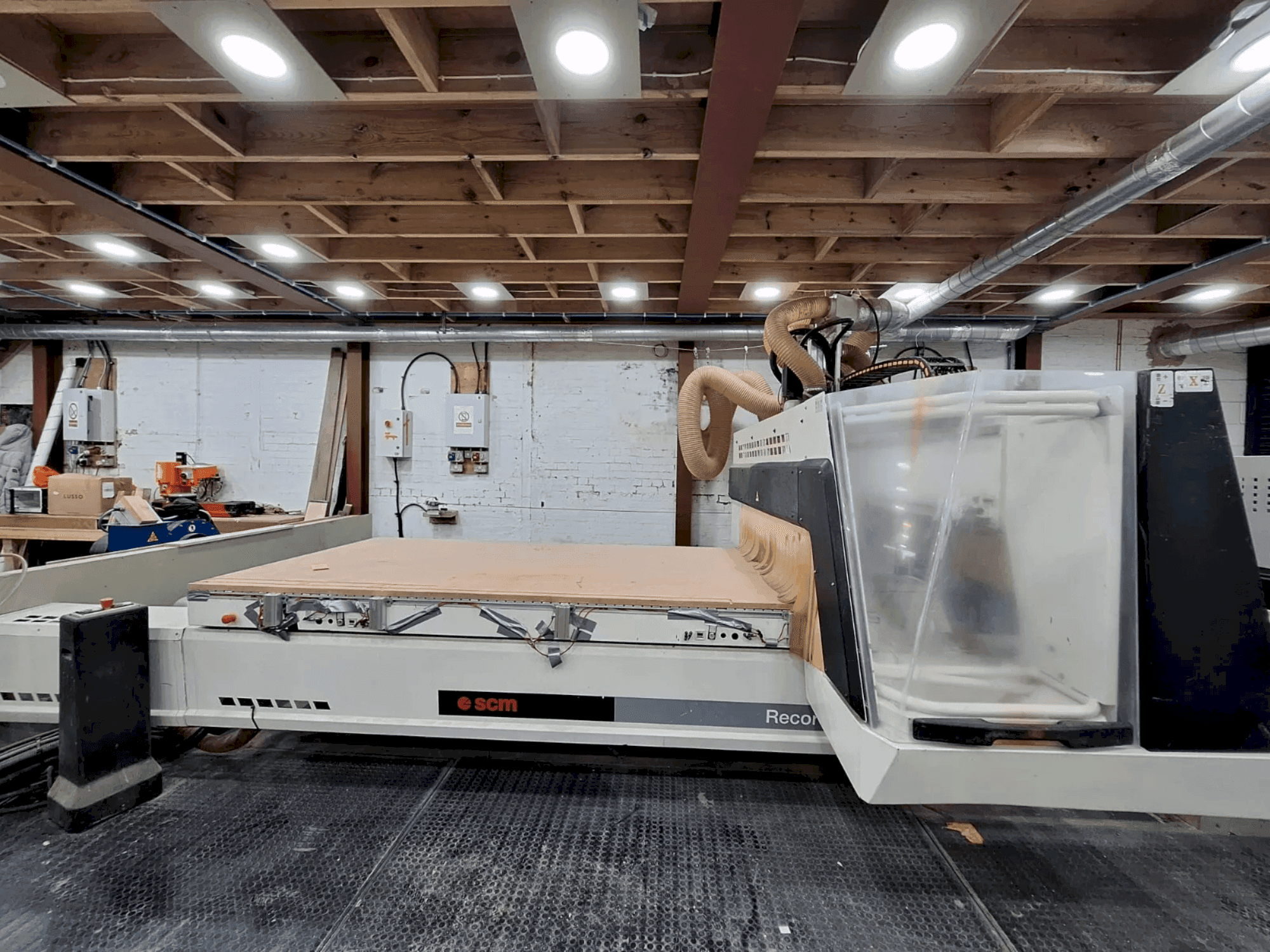

This 3-axis SCM Record 125 N CNC Wood Machining Centre was manufactured in 2007. It features a robust 7.5 kW electrospindle reaching up to 18,000 rpm, and an automatic tool changer with 8 positions. The working area extends to 3400 x 1720 x 400 mm, supported by a vacuum pump of 90 m³/h. If you are looking to get high-quality milling capabilities, consider the SCM Record 125 N machine we have for sale. Contact us for more information.
Overview
- brand: SCM
- year: 2007
- MODEL: Record 125 N
- application type: CNC Wood Machining
- Location: United Kingdom
- machine type: CNC Wood Machining Centre
Technical Information - SCM Record 125 N
Movement
- Number of Axes: 3
- X-axis Travel: 3400 mm
- Y-axis Travel: 1720 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- Vacuum Pump: 90 m³/h
Machine Benefits
Technical Machine Benefits
- Work table (between stops): 3100 mm
- Min/max spindle–work table nose distance: 96 / 496 mm
- Maximum piece width in "pendulum" mode: 1090 mm
- Real piece feed play (play): 335 mm (310 mm usable)
- Work table access in pendulum mode (right/left): 550 / 830 mm
- Tool socket: hsk 63
- Tool changeover: automatic, with 8 positions
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
