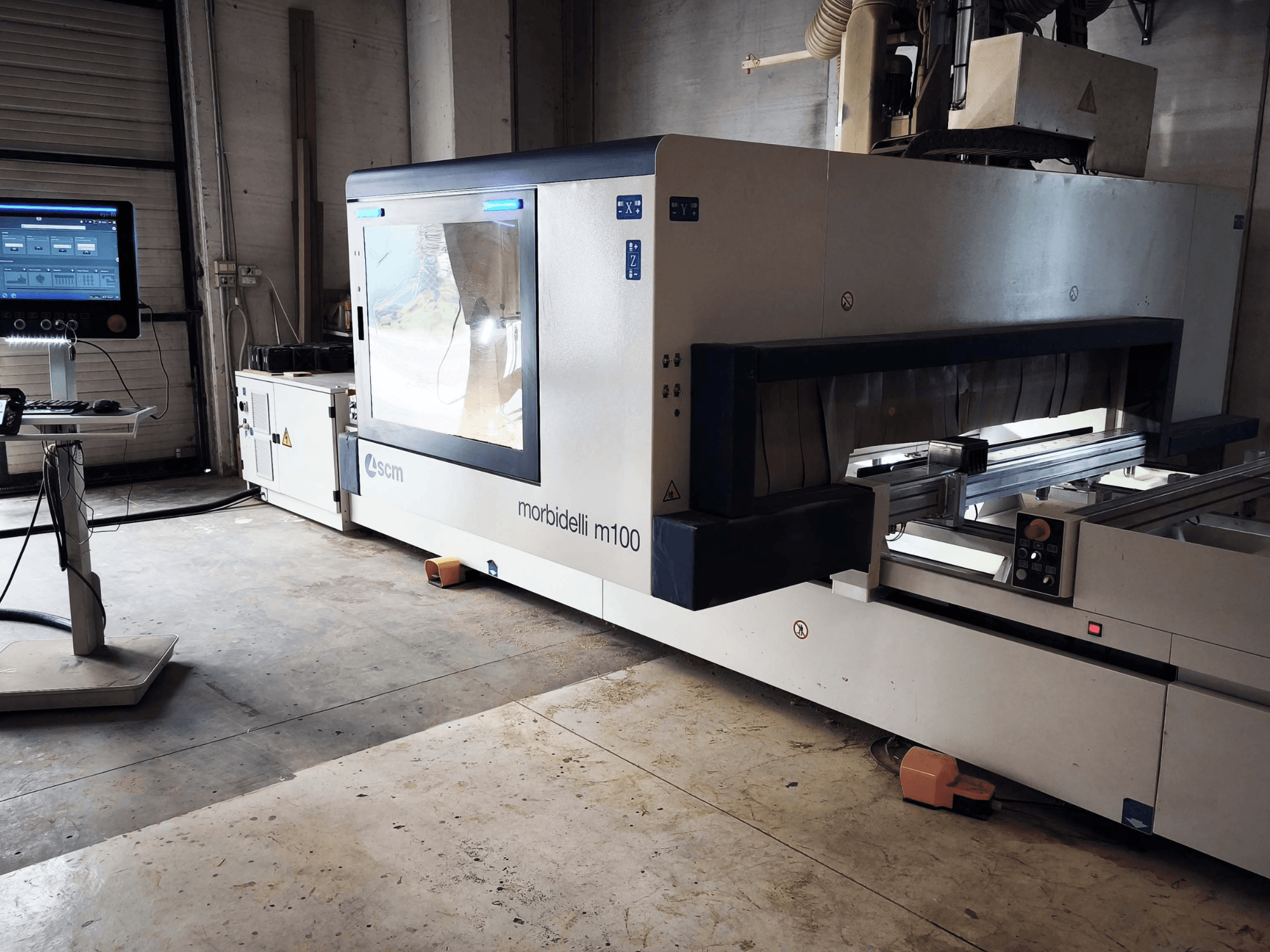

SCM - Morbidelli M100 IT-CNC-SCM-2023-00001

• Working area

  • Max. panel loading width / Y passage: 2,200 mm

  • Z-axis workpiece passage: 250 mm

  • Pendulum working length: 1,700 + 1,700 mm

  • X+Y vector speed PRO-SPACE: 56 m/min

  • X+Y vector speed PRO-SPEED: 78 m/min

  • PRO-SPACE safety configuration: X-axis limited to 25 m/min for operator safety

• 5-Axis Milling Unit – JQX

  • 5-axis JQX electrospindle, HSK 63F

  • B-axis rotation: ±185°, speed: 7,000°/min

  • C-axis rotation: ±320°, speed: 7,000°/min

  • Programmable CW/CCW rotation, ceramic bearings, liquid-cooled

  • Automatic extraction hood: 3 positions + excluded position

• Drilling Unit – F23L Ro.Ax

  • 13 independently selectable vertical spindles

  • 5 horizontal drilling heads with double output (3 in X, 2 in Y)

  • Drilling spindle speed: 4,200 rpm (standard) / 3,000–8,000 rpm (with inverter)

  • Integrated saw blade in X; max diameter 125 mm; thickness 2.2–6 mm

  • Blade speed: 5,000 rpm (standard) / up to 10,000 rpm (with inverter)

  • Drilling motor power: up to 3.9 kW

  • Max drill length: 70 mm; spindle spacing: 32 mm; Weldon Ø10 mm tool connection

  • High-pressure air assistance: >64 kgf per spindle

• Tool magazines (total up to 28 positions)

  • TRB14: 14 tools; max tool Ø 300 mm (3-axis) / 350 mm (5-axis); max tool weight 8 kg

  • FAST14: 14 tools; max Ø 225 mm (saw) / 180 mm (circular tools/angle aggregates); max tool weight 8 kg

• Worktable and clamping

  • 6 × TV FLEX 1600 tables/bars; pneumatic lock/unlock

  • Automatic reference stops: 6 rear, 6 intermediate, 4 lateral

  • Additional front stops H=75

  • 4 pneumatic panel lifting devices H=75

  • Pendulum machining capability

  • Vacuum clamping system

• Vacuum equipment

  • Vacuum pump: 250 m³/h

  • 18 fixed cups: 145 × 145 mm, H=75 mm

  • 6 rotating cups: 145 × 55 mm, H=75 mm

• Measuring / positioning

  • Automatic tool length sensor

  • Dual laser positioning (one projector per working area)

  • Automatic workpiece positioning references

• Control & software

  • Maestro Active CNC HMI; Maestro CNC CAD/CAM

  • DXF import; PGM import / conversion to PGMX

  • Parametric programming; Tool Manager; Maestro APPS

  • Graphical worktable setup; collision checking; cycle-time estimation

  • Remote assistance capability; network connection

• Operator console

  • eye-M PRO integrated industrial PC, 21.5" Full HD touchscreen (1920 × 1080)

  • Intel i7 2.80–3.60 GHz; 8 GB DDR4 RAM; 500 GB HDD

  • Ethernet RJ45; USB 3.0

  • Wired TECPAD 7" remote control; cable length 6.5 m

• Installation data

  • Installed power: 23–28.5 kVA; 400 V; 50 Hz; 3 phases

  • Air consumption: 450 Nl/min

  • Extraction air speed: 30 m/s; extraction connection Ø 250 mm

Additional equipment

• Tool holders and collets: not included in the offer

• No other external accessories (robots, automation, chip conveyor, bar feeder, etc.) are specified as included
