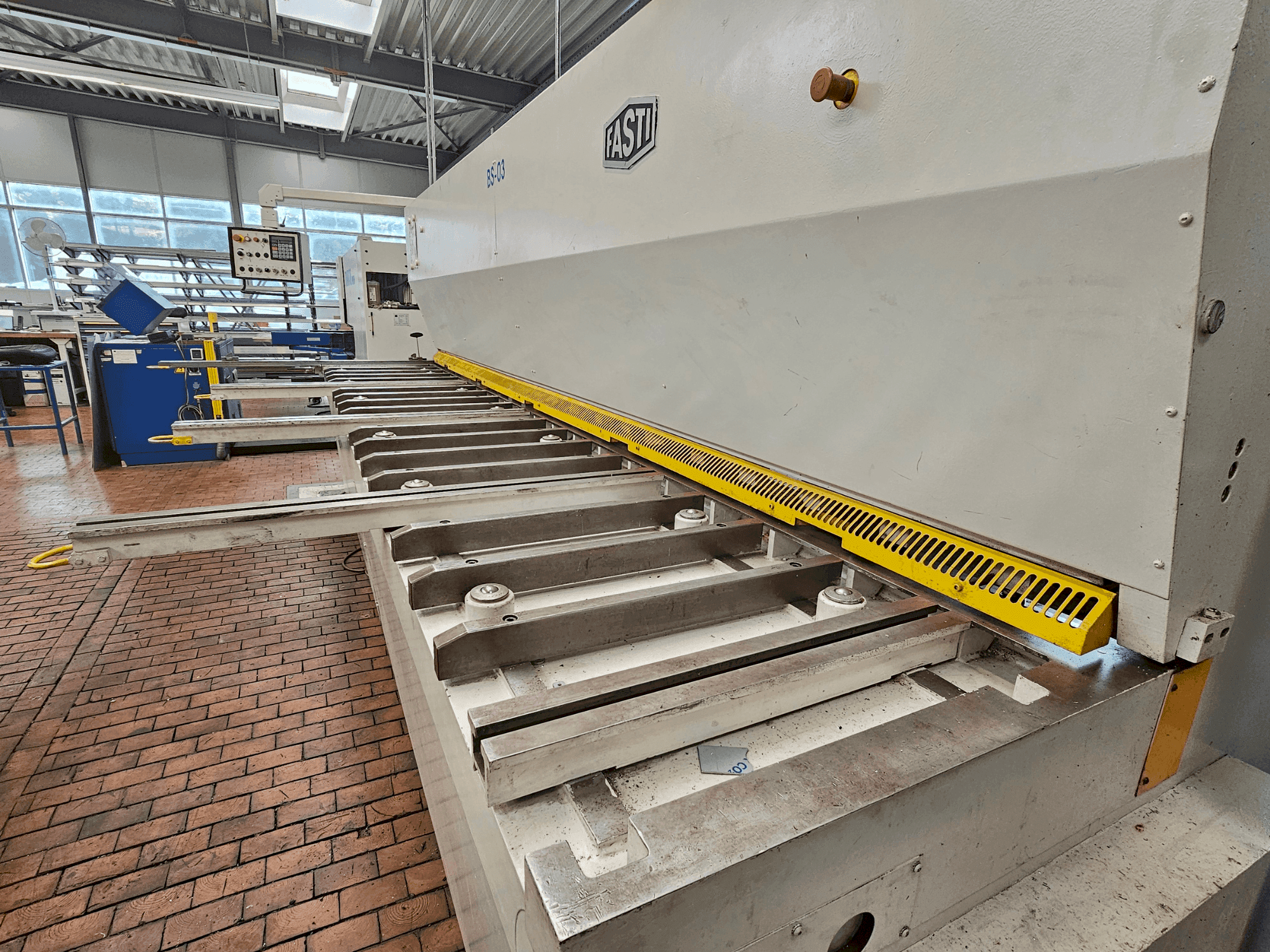

SCHRODER-FASTI - FASTI 509-40-6DE-BEN-SCH-1997-00001

Additional equipment

• - Front-operated motorised fence
• - Right-angled side stop 90° with tilt stop
• - 2 drop cam stops in T-slot guide
• - Table extensions with T-slots
• - Operating tool

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Minimum stop dimension: 15 mm
  • - Construction: all-steel welded construction
  • - Cutting technology: / double-edged, multi-part blades with 87° wedge angle / stepless cutting length adjustment / cutting gap adjustment (can be read to 1/100 mm using a dial gauge) / cutting line display with silhouette
  • - Drive: hydraulic with oil filling
  • - Control system: o electric control in accordance with din en 60204-1 / operating modes: single stroke, continuous stroke, partial stroke, jogging
  • - Projection on the side stand: 50 mm
  • - Dimensions (approx. ) for 509-40-6: a (total length): 4540 mm /b (table width): 1885 mm /c (table depth): 1645 mm/ d (cutting length): 4300 mm/ h (height of work surface): 2329 mm /k (total machine height): 1430 mm
  • - Side stand projection: 50 mm (standard)
  • - Foundation fastening: composite anchor hva m16x125 with mortar cartridges (drill Ø 18 mm) / concrete strength class min. B25 required.
  • - Cutting performance: shear angle: large angle = lower resistance, higher performance. / small angle = higher resistance, lower power // max. Sheet thickness: o dependent on material strength (see diagram in document). O recommended strip width: 12-15 × sheet thickness for low-torsion cuts

Extra information

• - Machine still under power
