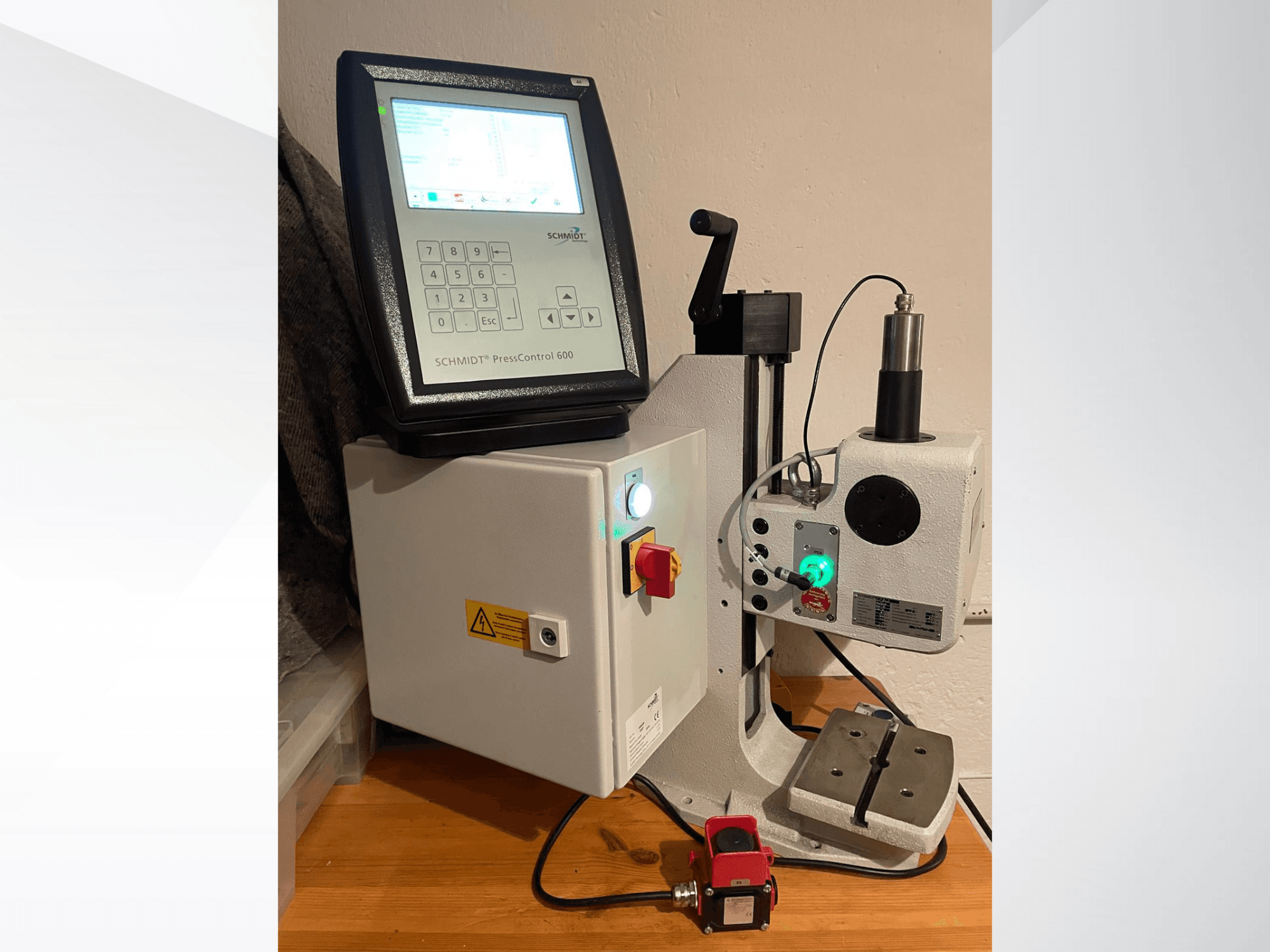

This SCHMIDT Electric Press 343 was manufactured in 2016. It features a stroke of 100 mm, tool dimensions of 150 x 100 mm, and a maximum speed of 150 mm/s. The press force monitoring and two-hand operation ensure safety and precision. Ideal for tasks requiring up to 2.5 kN pressing force with a maximum of 4 kN. The machine is in very good condition, almost like new. Contact us for more information about this machine.
Overview
- brand: SCHMIDT
- year: 2016
- MODEL: Electric Press 343
- application type: Stamping
- Location: Germany
- machine type: Servo Press
Additional Information
Additional information
Condition: Very good, almost like new
Features:
Press force monitoring
Two-hand operation
Electronic rack and pinion drive
Sensors for force and displacement measurement
Press force: 0.5 tons, 2.5 kN at 100% duty cycle, 4 kN max
Stroke: 100 mm
Max speed: 150 mm/s
Tool dimensions: 150 x 100 mm
Pam stroke: 0-100 mm
Pam speed: 200 mm/s max
Working height: 1080 mm
The machine operates reliably via safe two-hand control and has only been used for testing purposes.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
