➤ Used Schaudt GSN PF43 For Sale | gindumac.com

Show in original language

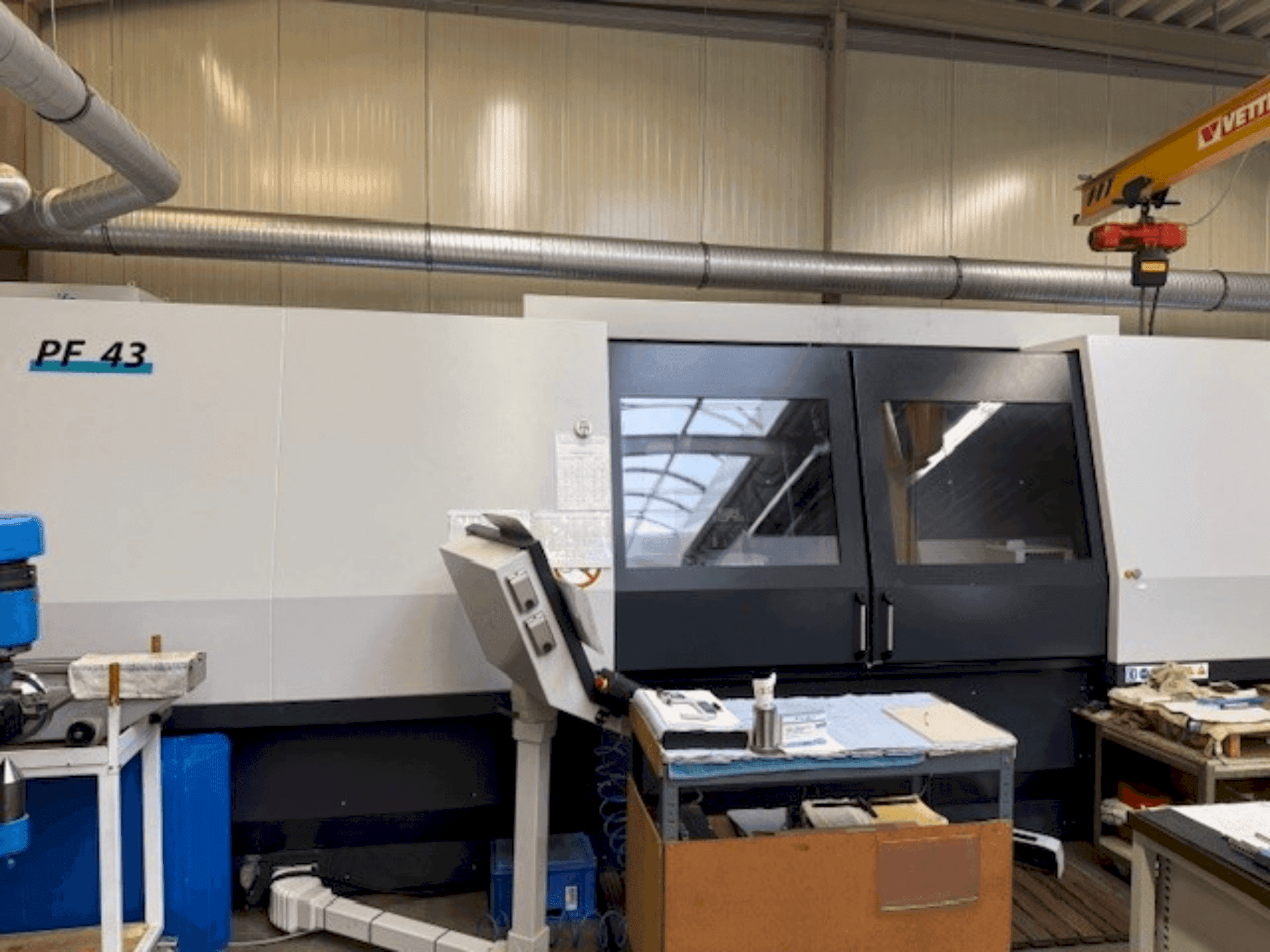

This Schaudt GSN PF43 cylindrical grinding machine was manufactured in 2019. It includes 13 grinding wheel holders, multiple chucks, and specialized bezels for versatility. Equipped with three internal grinding spindles and robust electrical specifications, including a 30 kVA connected load and 400V operating voltage. Consider the opportunity to buy this Schaudt GSN PF43 cylindrical grinding machine. Contact us for more information about this machine.

Overview

brand: Schaudt
year: 2019
MODEL: GSN PF43
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine

Additional Information

Machine Benefits

Technical Machine Benefits

13x grinding wheels holders including:
2x 3-way chuck
1x magnetic chuck
1x three-point bezel
3x two-point bezel (special for bigger diameter)
1x special holder for dressing
3x internal grinding spindle

Extra Information

Media Electrical Data: Current type: 3~ (three-phase current)/ Connected load: 30 kVA/ Operating voltage: 400V/ Rated current: 40A/ Frequency: 50Hz/ Fuse protection: 63A/ Control supply voltage: 230V AC/ Control voltage: 24V DC/ Manufacturer: Schaudt Retrofit: GSN/ Type: PF 43 U 1750/ Year of manufacture: approx. 1990 Retrofit 2019/ Control: CNC Siemens Sinumerik 840D/ Max. grinding length: 1,750 mm / up to 1,840 mm possible/ Grinding diameter: Ø 6 - Ø359 mm/ Center height: 180 mm/ Max. grinding wheel diameter: 500 mm/ Grinding wheel bore: Ø 203.2 mm/ Max. workpiece weight (between centers): approx. 200 kg/ Workpiece holder MK4/ Hydraulic tailstock: MK4/ Dimensions (L × W × H): approx. 6,700 × 2,500 × 2,400 mm + cooling basin 2,300 × 1,200 × 0,900 mm/ Weight: approx. 8,500 kg/ Total power requirement: approx. 31 kVA/ Grinding spindle motor power: typ. 5.5–7.5 kW/ Workpiece holder (boring head bore): MK4 / Ø 24 mm/ Special features: CNC-controlled cylinder grinding machine for external and internal machining./ Robust construction with high rigidity for precise grinding./ Equipped with Siemens Sinumerik 840D./ Internal grinding device/ Hydraulic tailstock/ Balancing and grinding sensor technology/ Freely positionable B-axis/ Diamond dressing spindle/ In-process measuring systems (length/tightness) Mapross/ Automatic door mechanism/ Automatic tailstock displacement/ Automatic cylinder error compensation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
