➤ Used SCHAAL SEP63N For Sale | gindumac.com

Show in original language

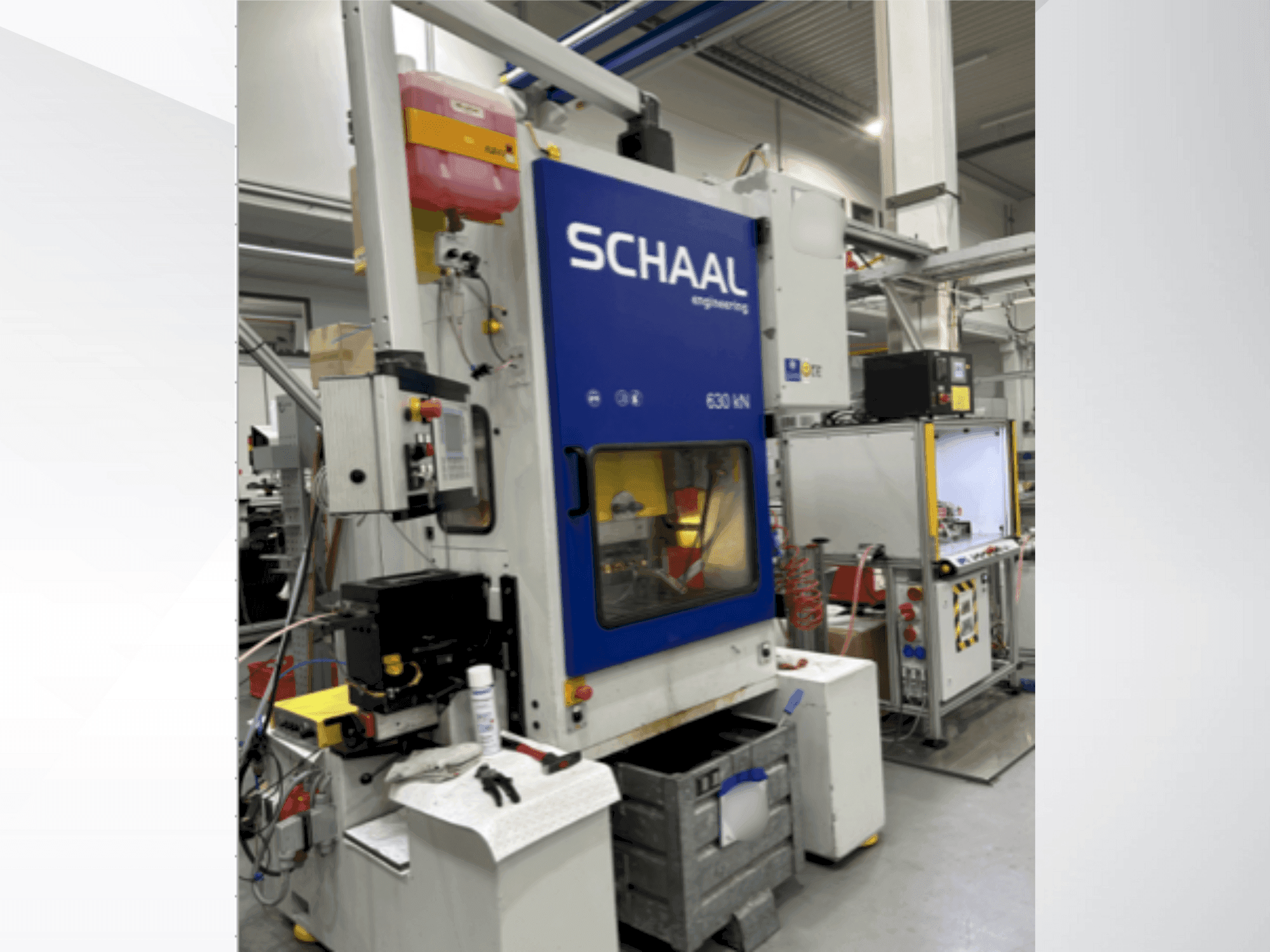

This SCHAAL SEP63N was manufactured in 2012. It is a robust hydraulic stamping press with a nominal force of 630 kN and a stroke length range of 8-80 mm. It supports tool dimensions up to 710 x 710 mm and operates at a flywheel speed of up to 500 rpm. Power consumption stands at 130 kW, and it requires a 400 V operating voltage. Consider the opportunity to buy this SCHAAL SEP63N hydraulic stamping press. Contact us for more information.

Overview

brand: SCHAAL
year: 2012
MODEL: SEP63N
application type: Stamping
Location: Germany
machine type: Hydraulic Stamping Press
availability: October

Technical Information - SCHAAL SEP63N

General Data

Machine weight: 7500 KG

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Stroke length: 8-80 mm
- - Minimum/maximum stroke rate: 100-500 rpm
- - Total response time/safety distance: 50 ms/100 mm
- - Max. Tool dimensions: 710 x 710 mm
- - Nominal force - nominal stroke: 630 kn
- - Installation height min-max (at maximum stroke): 170-250 mm
- - Operating voltage: 400 v
- - Control voltage: 24 v
- - Max. Number of clutch engagements per minute: 10
- - Power consumption: 130 kw
Qualitative Machine Benefits:
- - Compressed air: 6 bar
- - Min. /max. Pressure brake-clutch system: 4-6 bar
- - Air pressure counterbalance cylinder: not included

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
