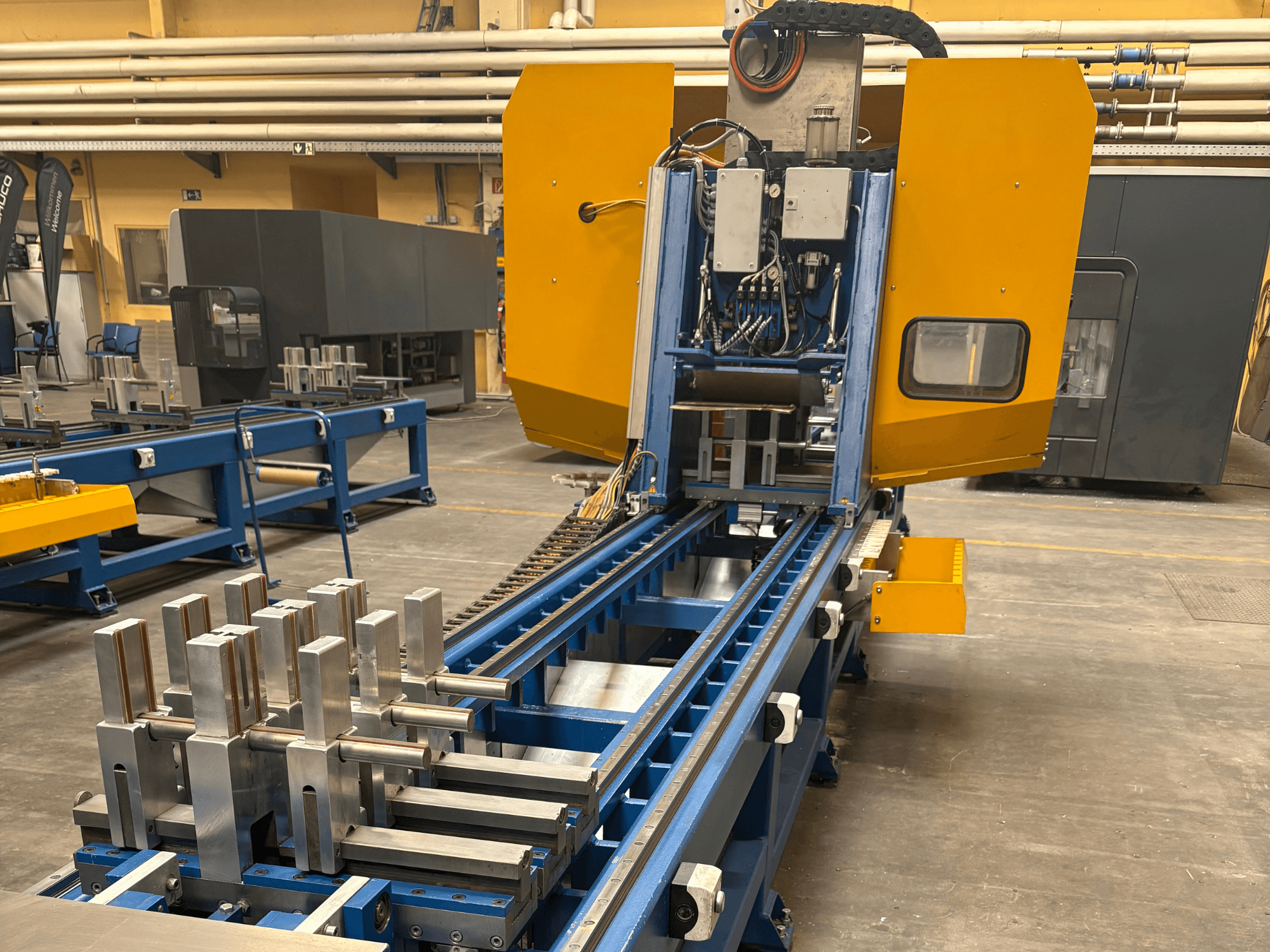

This 4-axis SCHÜCO PBX AL was manufactured in 2008. It features a processing length of 7,200 mm and is designed for the machining of aluminum profiles, including double-bar processing and through-feed capability for longer profiles. The machine includes an automatic tool changer and clamping blocks for enhanced efficiency. If you are looking to get high-quality machining capabilities, consider the SCHÜCO PBX AL universal machining centre we have for sale. Contact us for further details.
Overview
- brand: SCHÜCO
- year: 2008
- MODEL: PBX AL
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
Technical Information - SCHÜCO PBX AL
Dimensions
- Machine Weight: 4500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 7200 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Axis configuration: 3-axis standard; optional 4th axis with A-axis upgrade
Processing length: 7,200 mm
Capabilities:
Processing of aluminum profiles (e.g., Royal S, Firestop II)
Double-bar processing across total length
Through-feed capability for longer profiles
Electrical: 400 V, 50 Hz, nominal current 23 A, power consumption 11 kW, back-up fuse 35 A
Pneumatics: 7 bar compressed air
Additional equipment
Clamping blocks (3–4 VE suggested for AL model)
Automatic tool changer (included; visible in images)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
