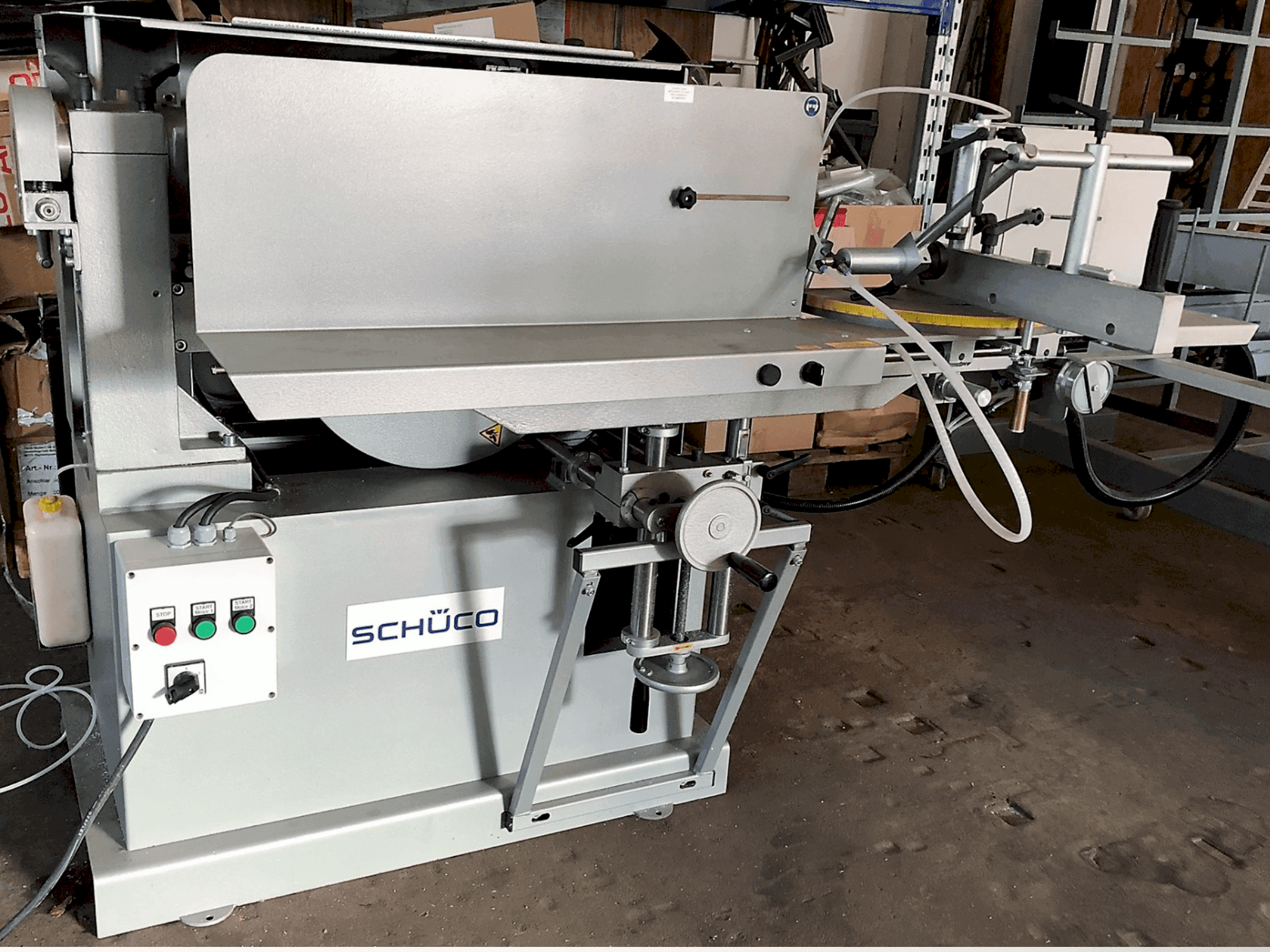

This SCHÜCO AS 450 was manufactured in 2016. A robust horizontal machining center featuring a direct drive at 2800 rpm and dual three-phase 400 V, 3 kW brake motors. It includes a vertical tool diameter of 450 mm and a horizontal diameter of 350 mm, both with a 40 mm tool holder. The machine weighs approximately 400 kg and offers adjustable sliding carriages and fixed stops. Ideal for precise notching tasks. For more information about this horizontal machining center, please reach out to us.
Overview
- brand: SCHÜCO
- year: 2016
- MODEL: AS 450
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - SCHÜCO AS 450
Technical Specification
- Spindle Speed: 2800 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Sliding carriage adjustable in height and depth via hand wheels
- Fixed material stop adjustable
- Vertical saw unit can be tilted from 90° to 45°
- Horizontal saw unit adjustable in height and depth
- Adjustable fixed stops for each axis
Technical Machine Benefits
- Max. Blade diameter: vertical unit: 450 mm horizontal unit: 350 mm
- Tool holder: vertical unit: 40 mm diameter, horizontal unit: 40 mm diameter
- Cutting height: 153 mm
- Notching depth: 110 mm
- Notching width: 250 mm
- Air connection: 6 bar
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
