SANDRETTO S.7.250
SANDRETTO - S.7.250
1989
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- SANDRETTO S.7.250 Injection Moulding Machine

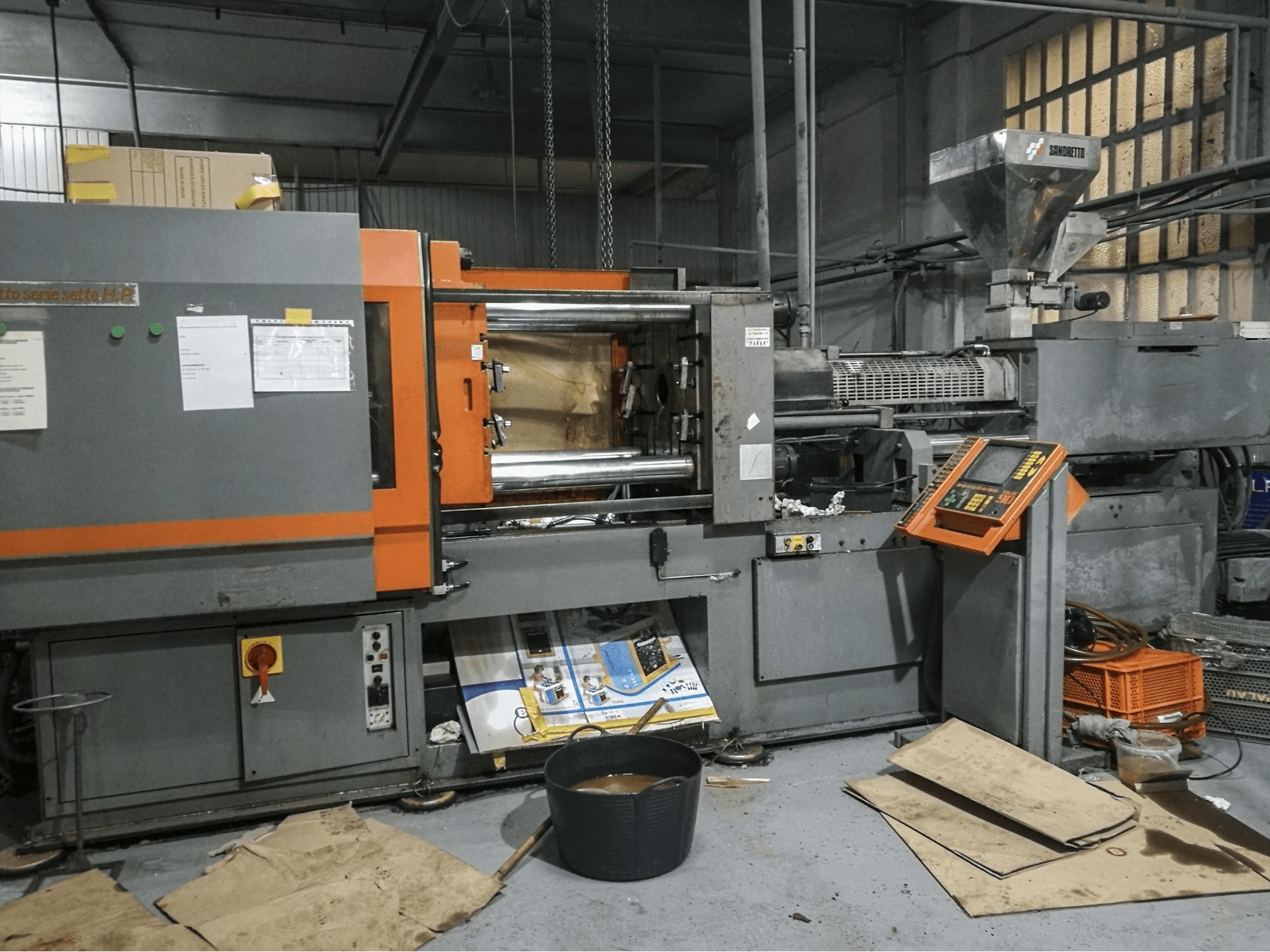

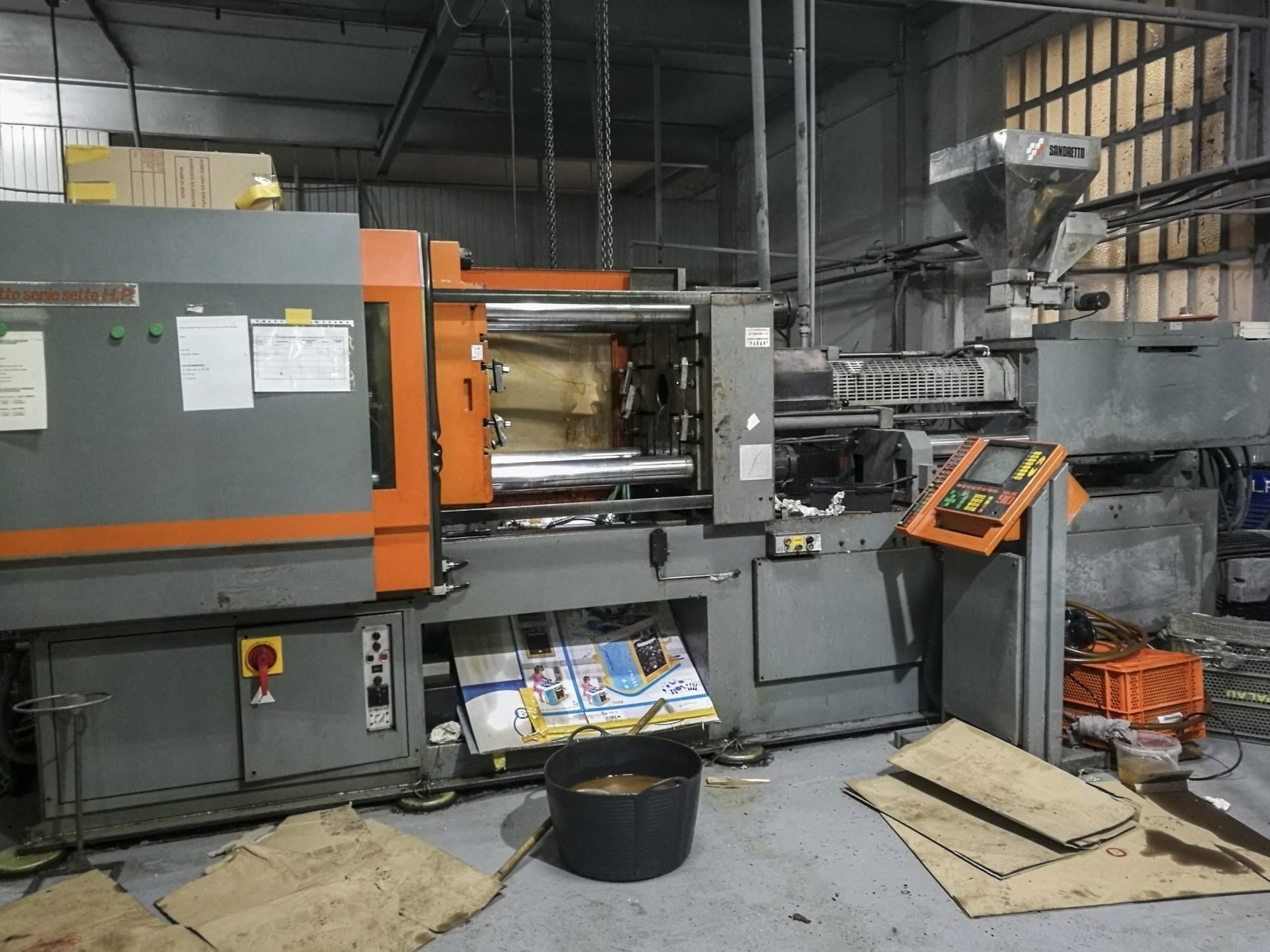

This SANDRETTO S.7.250 Injection Moulding Machine was manufactured in 1989 in Italy and has an estimated working record of 27000 production hours. Operated through a SELEC 90 control unit, the model offers a clamping force of 2460 kN. In the past, the machine has worked mainly on polypropylene.
Overview
- brand: SANDRETTO
- year: 1989
- MODEL: S.7.250
- production hours: 27000
- application type: Injection Moulding
- Location: Spain
- machine type: Injection Moulding Machine
- availability: Sold
- control unit brand: SELEC
- GINDUMAC ID: ES-INJ-SAN-1989-00001
Technical Information
General Data
- Measurements width: 6200 mm
- Measurements depth: 1000 mm
- Measurements height: 2200 mm
- Machine weight: 9900 kg
Control Unit
- Brand: SELEC
- Model: 90
Injection Unit
- Injection pressure: 1500 bar
- Plasticizing rate max.: 50 g/s PS
- Screw speed: 490 1/min
- Heating capacity: 16.2 kW
Clamping unit
- Clamping force: 2460 kN
- Opening stroke: 530 mm
- Max open daylight: 530 x 530 mm
- Mould height min: 200 mm
- Mould height max: 650 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 44 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
