Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
SANDRETTO - 4435-550ES-INJ-SAN-1998-00002
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Plastics Processing Machinery
- SANDRETTO 4435-550 Injection Moulding Machine

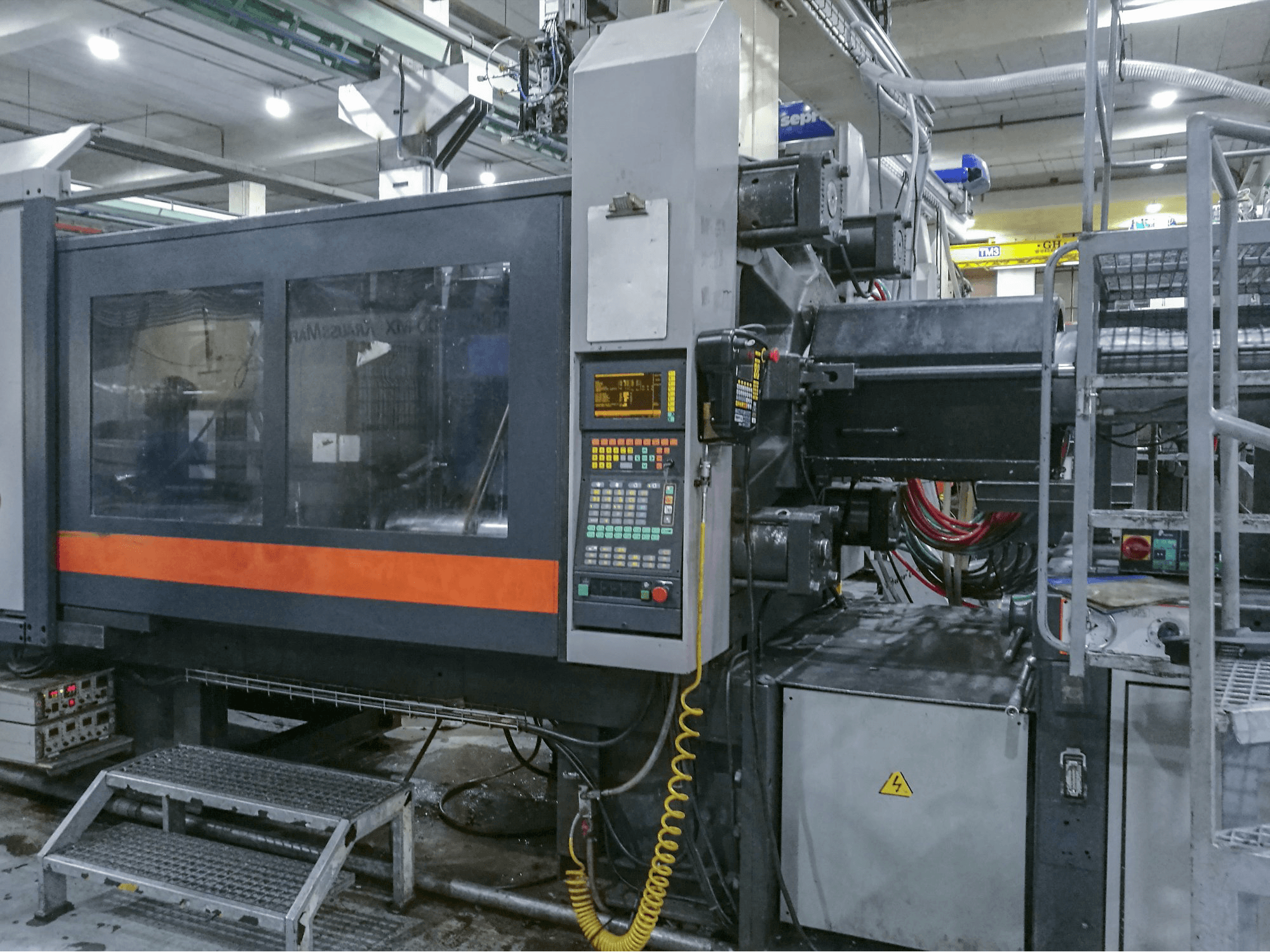

This SANDRETTO 4435-550 Injection Moulding Machine was manufactured in Italy in 1998 and has an overall production time of approximately 112000 working hours. Equipped with a SEF 100 Control unit, this model stands out due to 550 tons of clamping force and has mainly worked with polypropylene during the past.
Overview
- brand: SANDRETTO
- year: 1998
- MODEL: 4435-550
- production hours: 112000
- application type: Injection Moulding
- Location: Spain
- machine type: Hydraulic Injection Moulding Machine
Technical Information - SANDRETTO 4435-550
General Data
- Measurements width: 11400 mm
- Measurements depth: 2050 mm
- Measurements height: 2750 mm
- Machine weight: 32000 kg
Control Unit
- Model: 100
Injection Unit
- Screw diameter: 105 mm
- Stroke volume: 3853 cm³
- Injection pressure: 1137 bar
Clamping unit
- Clamping force: 5400 kN
- Opening stroke: 725 mm
- Ejector stroke: 350 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
