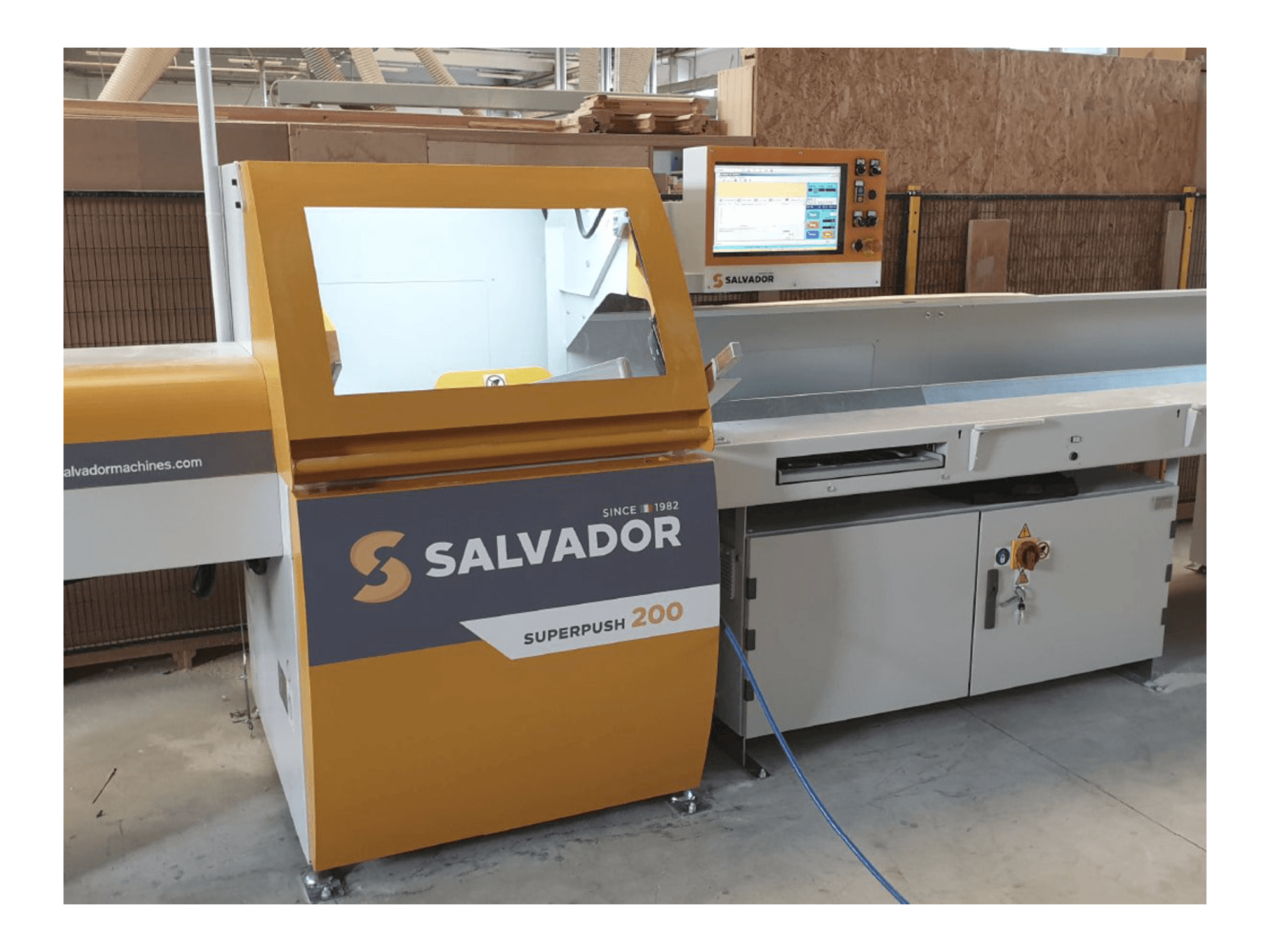

SALVADOR - Superpush 200DE-SAW-SAL-2025-00001

Additional equipment

• - Outfeed Table: Made of solid steel with a 30° incline. Length 3000 mm.
• - Safety Features: Rear protective cover, dual dust protection, and automatic lubrication.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Special inclined surface with a 30° angle, intelligent clamping, and automatic lift pusher during scanning.
  • - Windows-based software with a 22" led color display and remote maintenance capability.
  • - Electronic system: real-time communication with a modern computer-aided cnc.
  • - Software: linux-based optimization algorithm with a windows 10 interface.
  • - Pc features: intuitive s4u software, extensive customization, real-time updates, error detection, and remote maintenance software.
  • - Saw motor power: 5. 5 kw
  • - Saw blade type: carbide-tipped circular saw
  • - Blade diameter: 500 mm
  • - Number of teeth: z=108
  • - Board length before cutting: max 4100 mm, min 500 mm
• Qualitative Machine Benefits:
  • - Cutting cross-section: max 240x150 / 300x110 mm, min 30x15 mm
  • - Pusher slide dimensions: 300 x 345 x 25 mm
  • - Feed speed: adjustable max feed speed set to 60 m/min
  • - Pusher drive system: brushless dc servo drive motor with electronically controlled feed.
  • - Productivity enhancements: increases productivity and improves wood yield.
  • - Reliability features: robust construction with thick, reinforced steel frame.
  • - Processing accuracy: two electropneumatic aligners ensure square cuts.

Extra information

• - Machine still under power. Please contact us for consultation and a custom-tailored offer.
