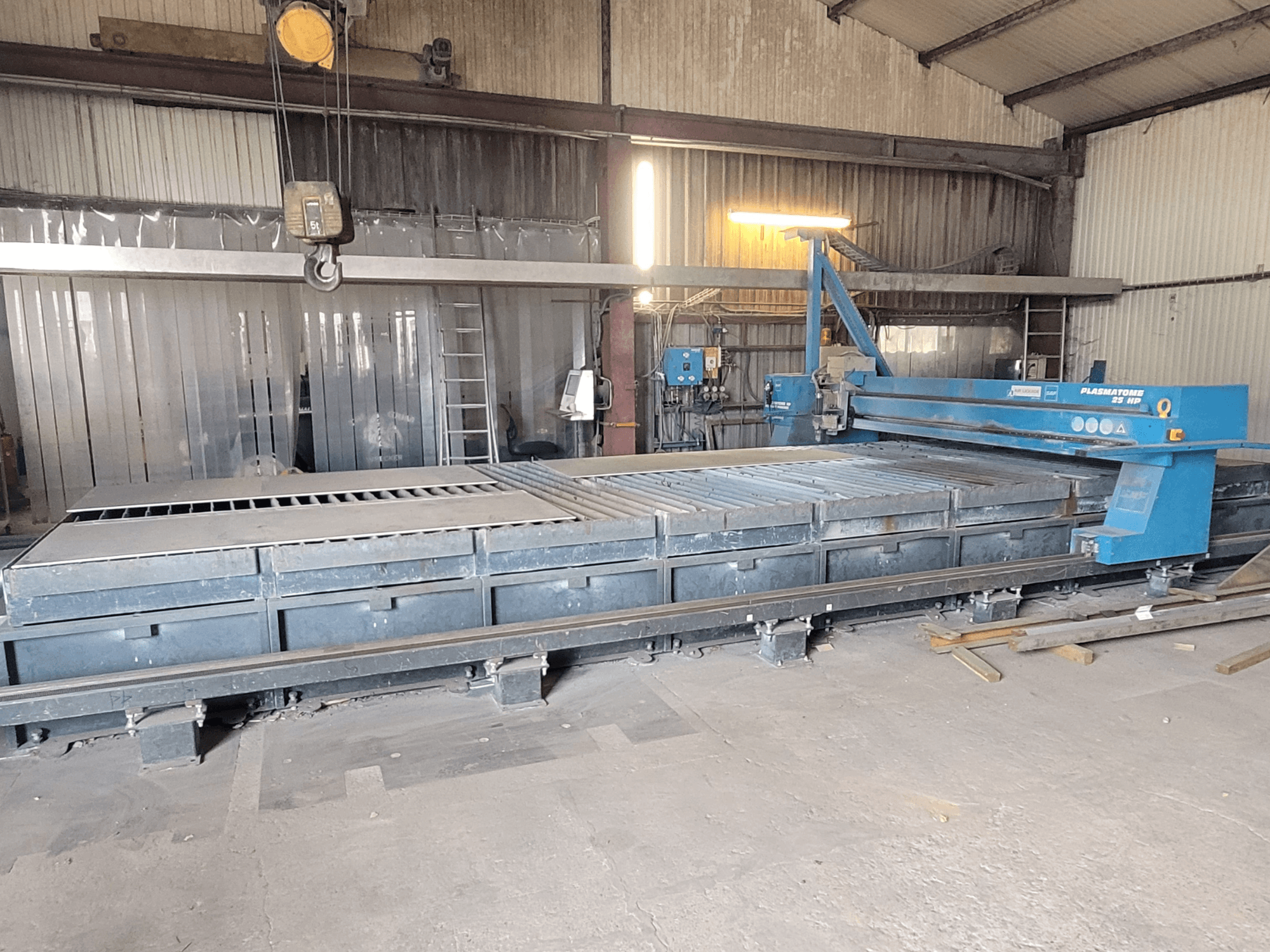

This 3-axis SAF Plasmatone 25Hp was manufactured in 2001. It features an 8000 x 2500 mm cutting table with a maximum X-axis travel of 3400 mm and Y-axis travel of 1700 mm. The machine is retrofitted with a Hypertherm Max Pro-200 power source, allowing for versatile cutting of various materials. If you are looking to get high-quality plasma cutting capabilities, consider the SAF Plasmatone 25Hp machine we have for sale. Contact us for further details.
Overview
- brand: SAF
- year: 2001
- MODEL: Plasmatone 25Hp
- production hours: 1907
- application type: Cutting
- Location: Germany
- machine type: Plasma Cutting Machine
Technical Information - SAF Plasmatone 25Hp
Movement
- Number of Axes: 3
- X-axis Travel: 3400 mm
- Y-axis Travel: 1700 mm
- Z-axis Travel: 290 mm
Additional Information
Cutting table: 8000 x 2500 mm
Retrofitted power source: Hypertherm Max Pro-200 (year 2013), long-life plasma (air and oxygen)
Cutting capability:
Mild steel (air/air): 0.5–30 mm full cut, up to 50 mm with edge start
Stainless steel (air/air): 0.5–30 mm full cut, up to 50 mm with edge start
Aluminum (air/air): 0.5–30 mm full cut, up to 40 mm with edge start
Oxygen can be used depending on required cut quality
Cutting current settings: 50 A / 130 A / 200 A (consumables changeable at the torch)
CNC control: new-generation control with Mach3 software
Additional equipment
SAF fume extraction system with 11 kW motor and 12-filter unit
Automatic extraction air dampers on the frame (electric sensors + pneumatic cylinders)
New cutting head and a set of consumables included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
