Rosler R4/1300.2 SF

Photo Gallery

Rosler - R4/1300.2 SFIE-OTH-ROS-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

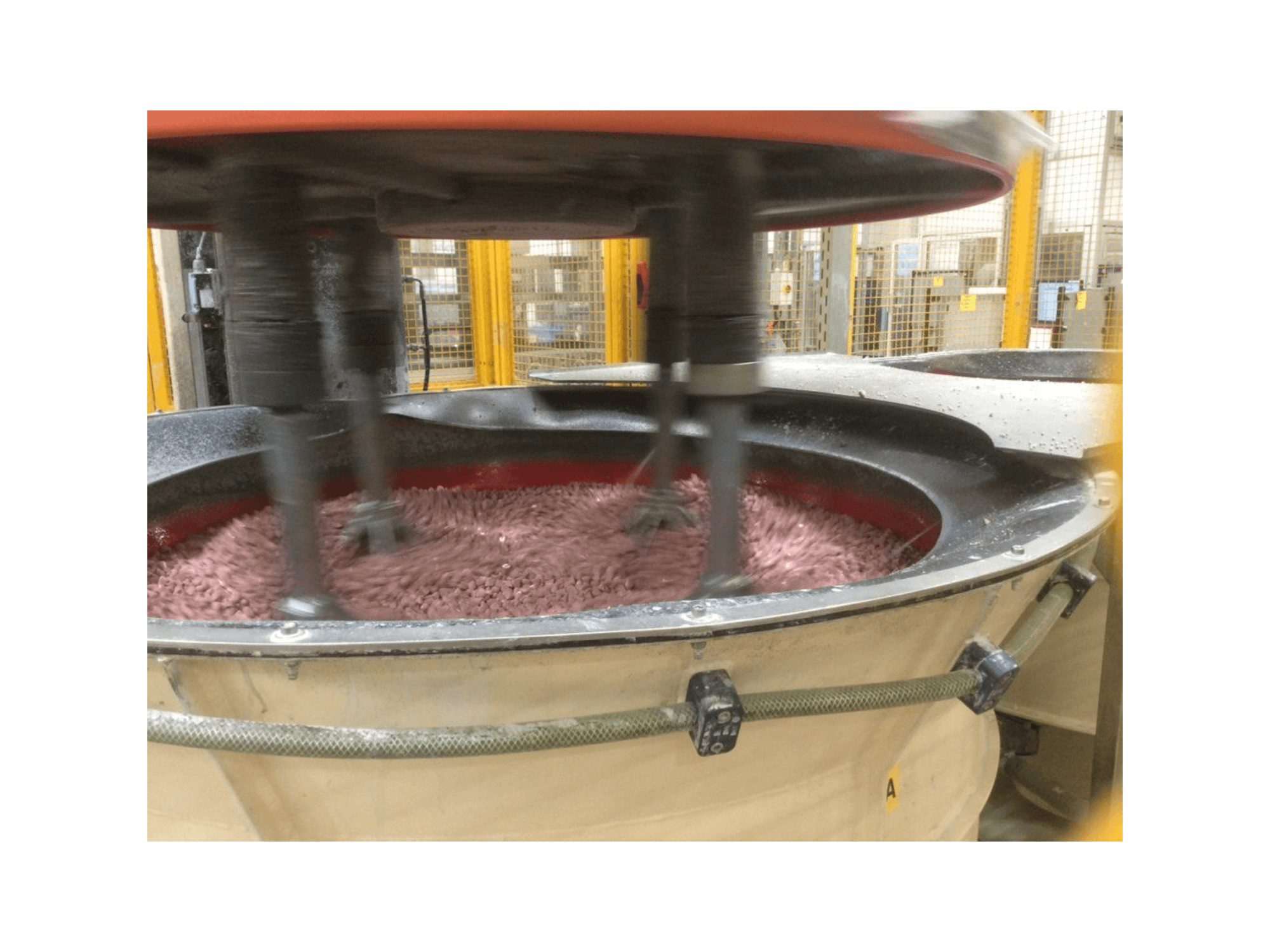

Rosler R4/1300.2 SF Drag Finishing Machine

Show in original language

This Rosler R4/1300.2 SF Drag Finishing Machine was manufactured in the year 2014 in Germany. It has a production history of 17812 hours. It is operated with a SIEMENS Simatic Panel Touch control unit. This Rosler works with a bowl diameter of 1280 mm and a bowl volume of 850 L. This machine has 4 powerful, versatile workstations allowing the finishing of large workpiece batches or work pieces up to 600mm and/or high individual piece weights. It includes a cooling unit, a buffer tank, a clean water tank, an hydraulic pack, and a safety fencing.

Overview

brand: Rosler
year: 2014
MODEL: R4/1300.2 SF
production hours: 17812
application type: Other Machine Tools
Location: Ireland
machine type: Machine Tool
control unit brand: SIEMENS

Technical Information - Rosler R4/1300.2 SF

Control Unit

Control Brand: SIEMENS
Control Model: Simatic Panel Touch

Dimensions

Machine Depth: 3901 mm
Machine Height: 2450 mm

Additional Information

Additional equipment

Cooling Unit
Buffer Tank
Clean Water Tank
Hydraulic Pack
Electrical Cabinets
Safety Fencing

Machine Benefits

Technical Machine Benefits

Number of bowls 2
Work bowl diameter 1280 mm
Max work bowl height 460 mm
Total work bowl volume 850 l
Usable work bowl volume 590 l
Power of main drive 15 kwh
Power of spindle drives 0. 8kwh (direct drive)
A sturdy single column holds the spinnerm including all drive units and provides the hydraulically activated up and down movement
Modular concept allows the expansion into systems of two of three processing stations
Independent spinner and work station drives with adjustable speed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
