Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
RÖDERS - RCS2DK-OTH-ROD-2018-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Automation Equipment
- ➤ Used RÖDERS RCS2 Pallet Handler For Sale | gindumac.com

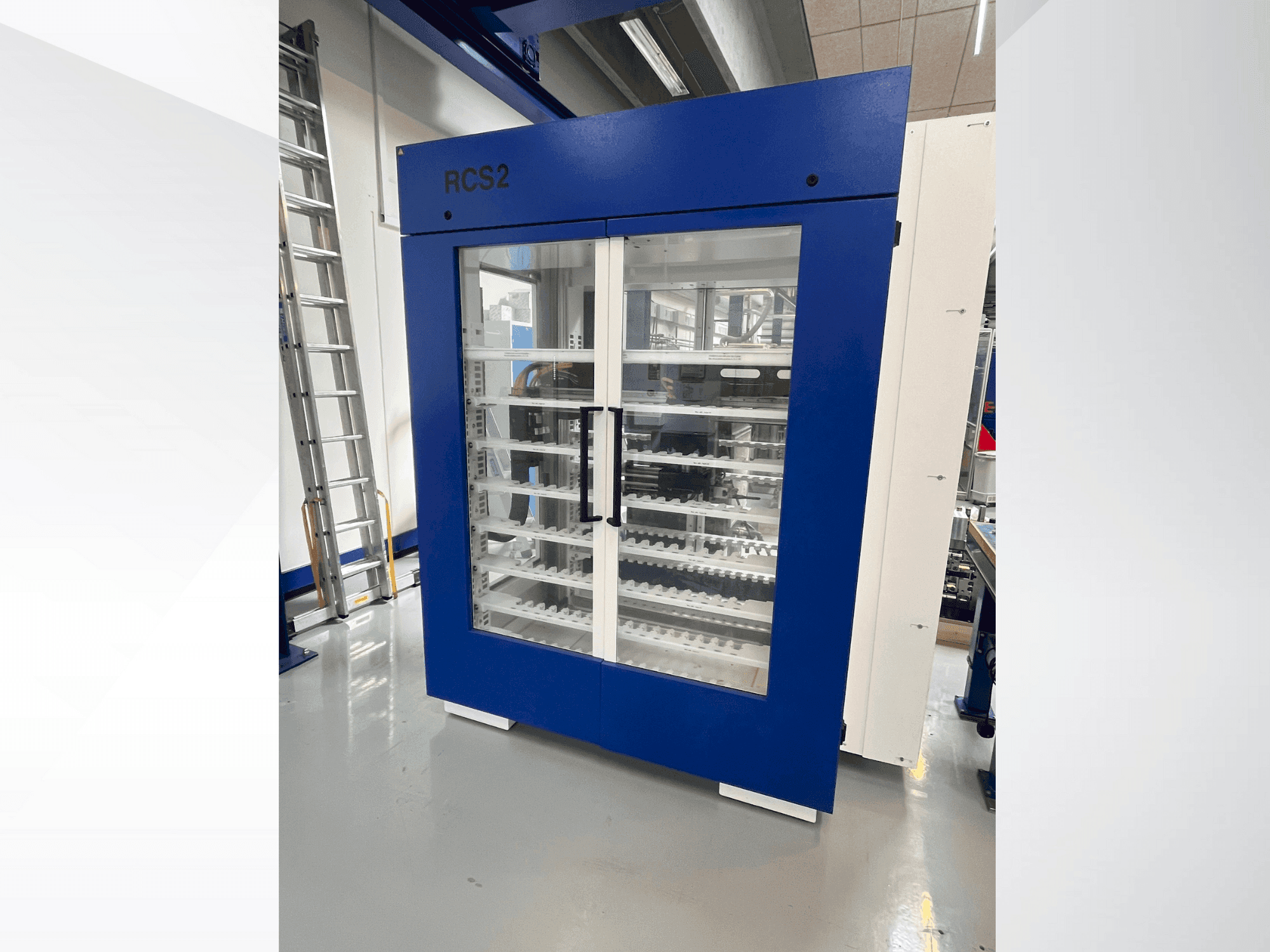

This Röders RCS2 was manufactured in 2018. It is a compact pallet handling system with a built-in magazine for automated pallet and tool changes compatible with Roeders HSC machines. Features include guard doors for safe exchange during operation, a maximum load of 30 kg, and dimensions of 1740 x 1300 x 2400 mm. If you are looking to get high-quality handling capabilities, consider the Röders RCS2 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: RÖDERS
- year: 2018
- MODEL: RCS2
- application type: Other Automation Equipment
- Location: Denmark
- machine type: Pallet Handling System
- control unit brand: RÖDERS
Technical Information - RÖDERS RCS2
Control Unit
- Control Brand: RÖDERS
Additional Information
Machine Benefits
Technical Machine Benefits
- Quantity: 1 pc / max load: 30 kg (depending on gripper) / dimensions of machine (lxwxh): 1740 x 1300 x 2400 mm / weight (kg): approx. 600 kg (without pallets/tools)
- Electrical connection: 400 v / 16 a (3 phases + pe + n), approx. 3 kva / pneumatic: via hsc machine
- Magazine capacity: 2 shelf rows within 30 mm grid, max height span: 1530 mm (reduced with sub-grippers)
- Custom tariff no: 84795000 / environment: temperature 14°c – 35°c, humidity 20% – 80% (no condensation)
- This compact handling unit features a linear handling system suitable for automated pallet/tool changes during machine operation.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
