- Röders RXP 801 Milling Machine

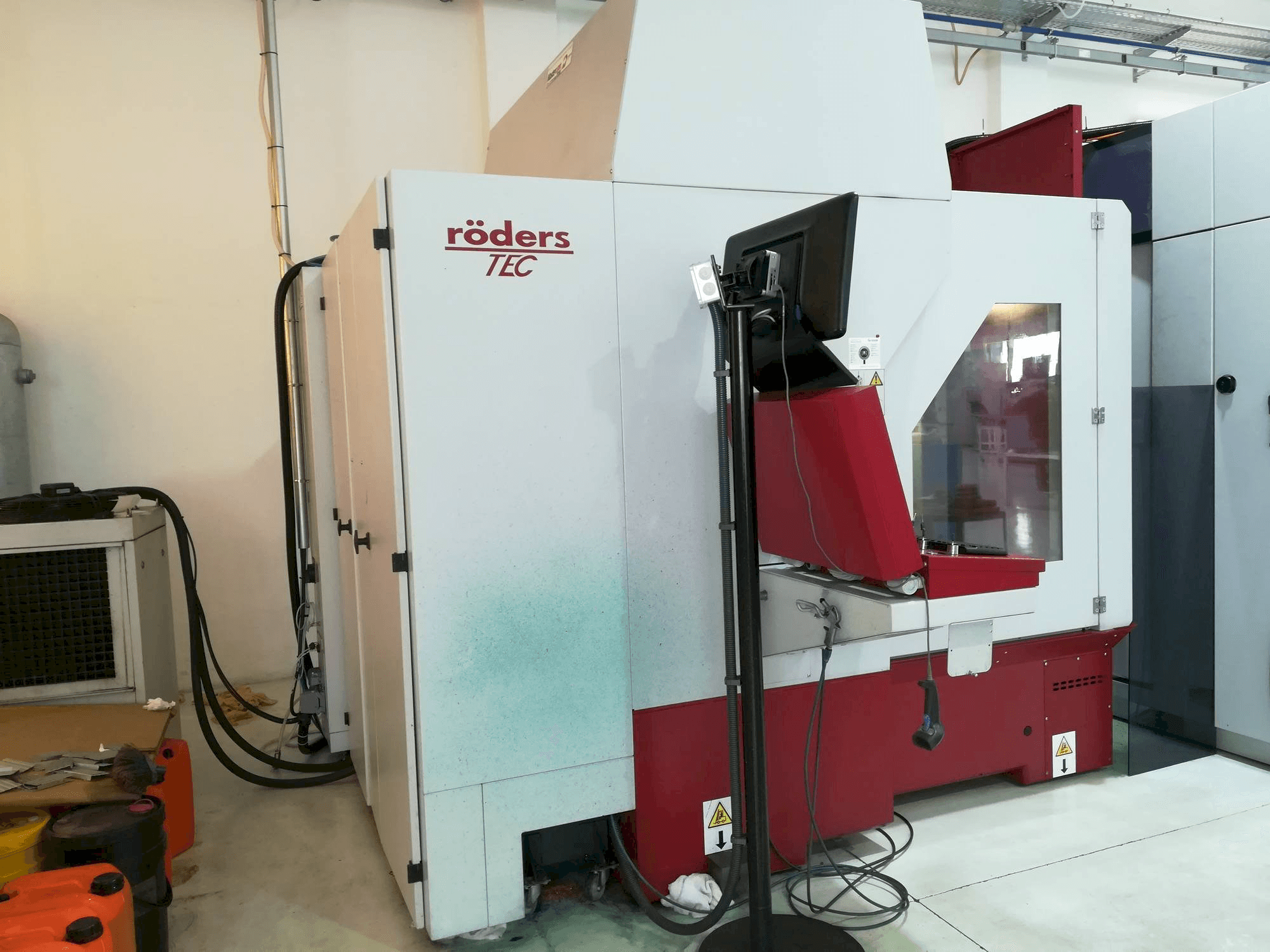

This Röders RXP 801 Milling Machine was built in 2013 in Germany. It is operated through a Röders RMS6 control unit. This machine can work with a spindle speed between to 100 - 40000 rpm. It counts with a 1-axis NC-turntable direct drive RTT1 360º, and a power Chuck P, d=150. Several additional equipment is included, which can be appreciated complete in the document below the page.
Overview
- brand: RÖDERS
- year: 2013
- MODEL: RXP 801
- application type: Milling
- Location: Spain
- machine type: Gantry Milling Machine
- control unit brand: RÖDERS
Technical Information - RÖDERS RXP 801
Control Unit
- Control Brand: RÖDERS
- Control Model: RMS6
Dimensions
- Machine Depth: 2760 mm
- Machine Height: 2800 mm
- Machine Weight: 9500 kg
- Table Length: 796 mm
- Table Load: 800 kg
- Table Width: 596 mm
Movement
- X-axis Travel: 800 mm
- Y-axis Travel: 855 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 40000 RPM
Additional Information
Additional equipment
- Laser for tool measuring
- Tool cleaning device
- Chiller for tempering of spindle
- Cooling of the secondary parts of the linear motors
- Workpiece cleaning System
- High-frequency milling spindle MFW1224/42 HSK-E40
- 1-axis NC-turntable direct drive RTT1 360º
- Power Chuck P, d=150
Machine Benefits
Technical Machine Benefits
- Hsc-machine rxp801 with t-slot table
- High dynamical linear motors in all axes with integrated cooling
- Fully closed cabin with two doors with safety glass
- All machine parts are protected against soiling
- Spindle compensation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
