RÖDERS - RPX 500DE-MIL-ROD-2006-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used RÖDERS RPX 500 For Sale | gindumac.com

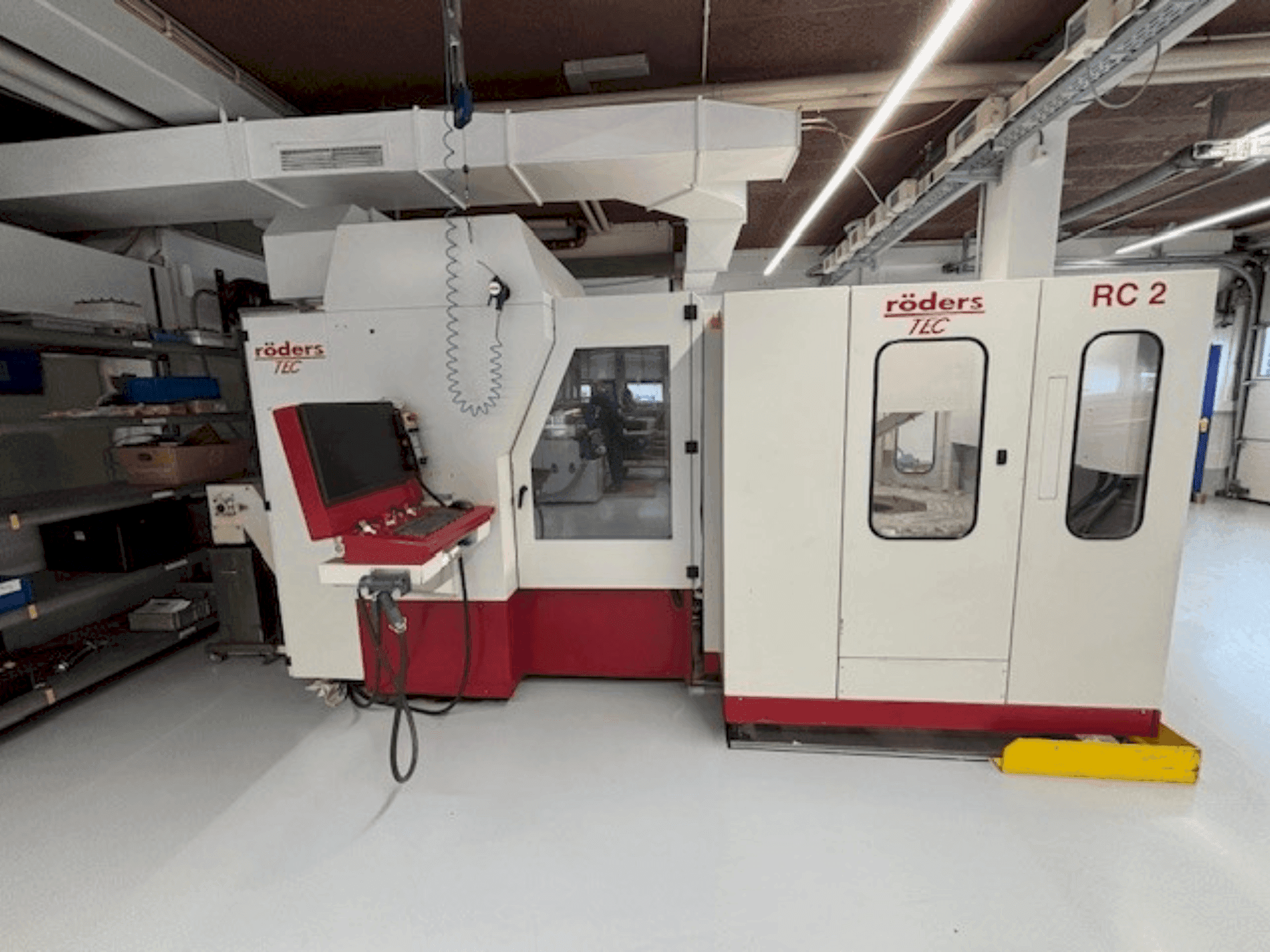

This 5-axis RÖDERS RPX 500 was manufactured in 2006. It features a working area of 450 mm x 455 mm x 240 mm, a swivel range of +/-115 degrees, and a high-speed milling spindle at 42,000 rpm. The machine includes a 21-tool changer with an integrated measuring laser and an automation RC2 with a 32-place Erowa holder. Consider the opportunity to buy this RÖDERS RPX 500 vertical machining centre. Contact us for more information about this machine.
Overview
- brand: RÖDERS
- year: 2006
- MODEL: RPX 500
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - RÖDERS RPX 500
Dimensions
- Machine Depth: 2350 mm
- Machine Height: 2350 mm
- Machine Weight: 6500 kg
Movement
- Number of Axes: 5
Additional Information
Additional equipment
- Original monitor is defective (PC monitor provisionally installed from IT)
- Incl. automation RC2: Erowa holder 32 places 1700 mm x 1700 mm x 1950 mm
Machine Benefits
Technical Machine Benefits
- Working area: 450 mm x 455 mm x 240 mm
- Table size: 250 mm with its 100 chuck erowa
- Swivel range: +/-115 degrees
- Feed rate: 0-42000 mm/min
- Tool changer: 21 (linear) integrated measuring laser
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
