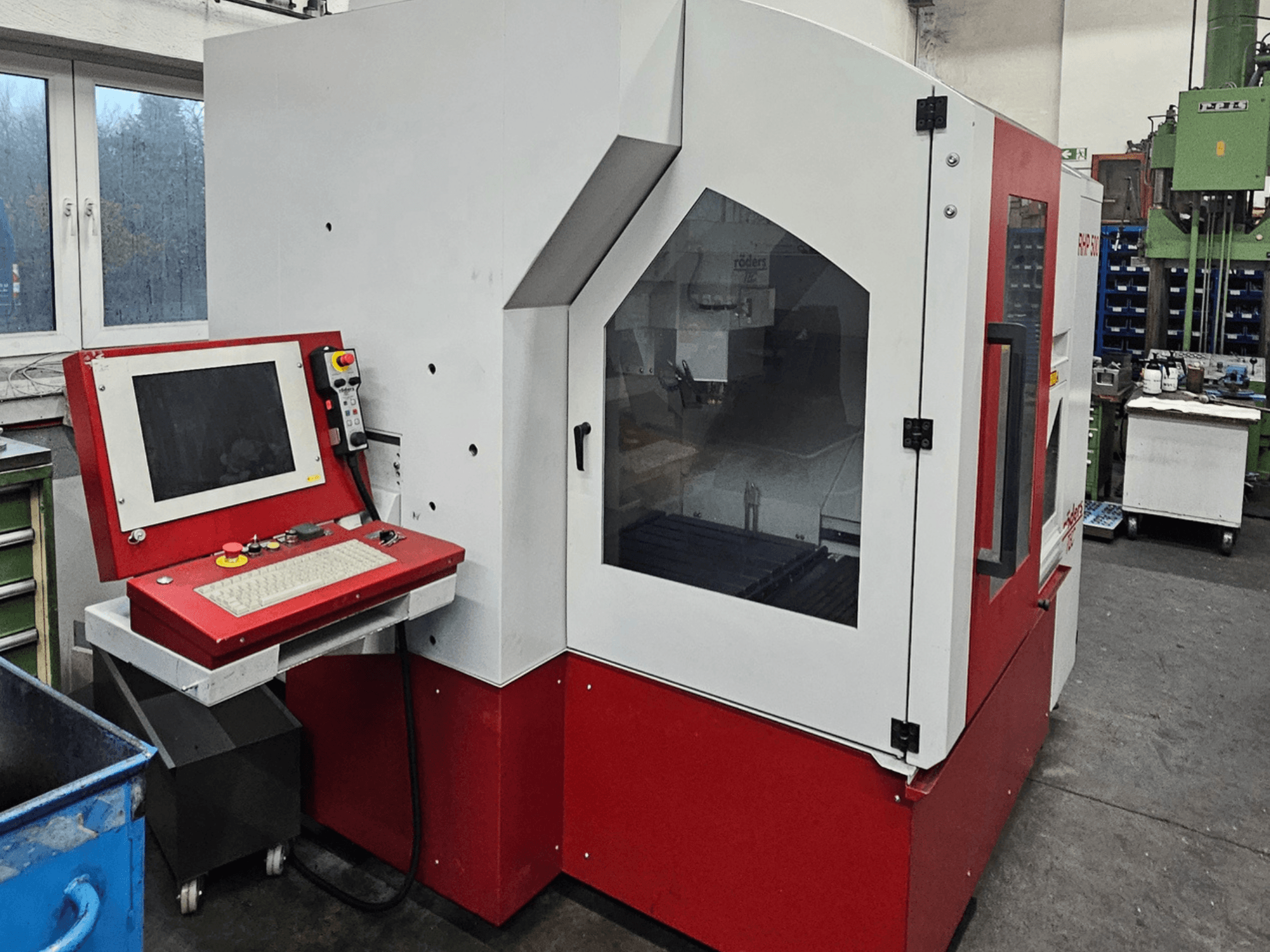

This 3-axis RÖDERS RHP 500 vertical machining centre was manufactured in 2007. It features a machining range of 500 mm × 552 mm × 300 mm and a table size of 600 mm × 540 mm. The machine is equipped with a milling spindle that reaches up to 42,000 rpm and has a tool changer with 42 places. If you are looking to get high-quality machining capabilities, consider the RÖDERS RHP 500 machine we have for sale. Contact us for further details.
Overview
- brand: RÖDERS
- year: 2007
- MODEL: RHP 500
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - RÖDERS RHP 500
Dimensions
- Machine Height: 2750 mm
- Machine Length: 2510 mm
- Machine Weight: 9500 kg
- Machine Width: 3015 mm
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 552 mm
- Z-axis Travel: 300 mm
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 42000 RPM
Additional Information
Table size: 600 × 540 mm
Maximum height between spindle nose and table: 455 mm
Max workpiece weight: 400 kg
Feed rate: 0–60,000 mm/min
Milling spindle (standard): HSK E40, max tool Ø 16 mm (others on request)
Tool changer: 42 positions, chain type, loadable during machining; integrated tool measuring laser
Chip disposal: Twin screw discharge into rear chip box
Additional equipment
Optional chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
