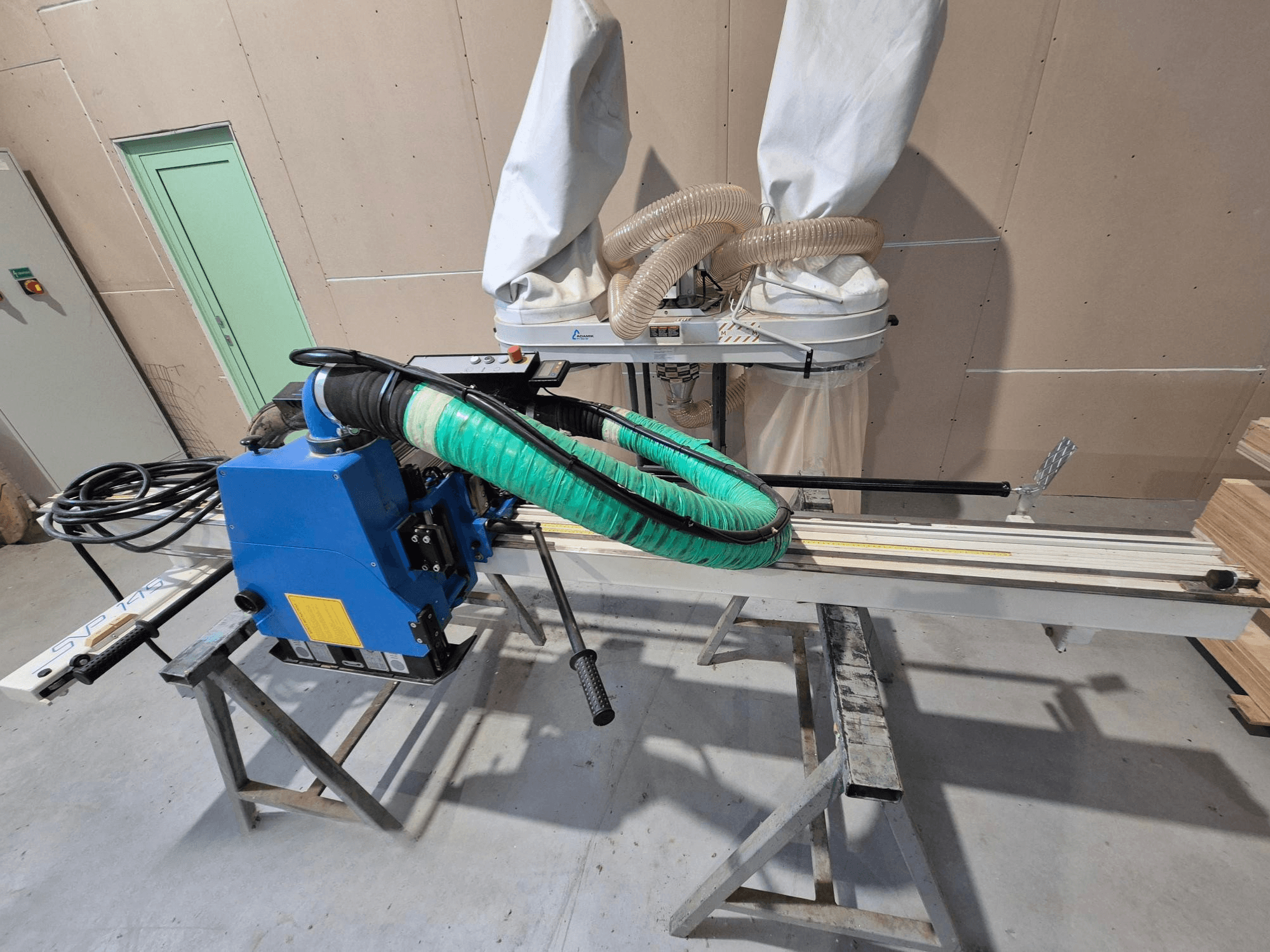

Blue SVP-175 horizontal panel saw with green dust hose and support, viewed from the side in a workshop setting.
Blue SVP-175 horizontal panel saw with green dust hose and support, viewed from the side in a workshop setting.

PUTSCH - MENICONI SVP 145 HU-SAW-PUT-2015-00001

Rs. 1,273,769
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This PUTSCH MENICONI SVP 145 panel saw was manufactured in 2015. It features a vertical cutting design with a maximum cutting capacity of 4200 mm in length and 2200 mm in height. The saw supports a maximum panel weight of 180 kg and operates with a blade diameter of 250 mm. Ideal for materials like MDF, plywood, and laminated panels. Contact us for more information about this machine.

Overview

  • brand: PUTSCH
  • year: 2015
  • MODEL: MENICONI SVP 145
  • application type: Sawing (Wood)
  • Location: Hungary
  • machine type: Panel Saw

Technical Information - PUTSCH MENICONI SVP 145

Dimensions

  • Machine Height: 1980 mm
  • Machine Length: 5580 mm
  • Machine Weight: 780 kg

Technical Specification

  • Max. Cutting Length: 4200 mm

Additional Information

  • Electrical data:

    • Nominal voltage: 400 V

    • Phases: 3

    • Frequency: 50 Hz

    • Full load current: approx. 8.4 A

    • Maximum load current: approx. 7.6 A

    • Protection level: IP54

  • Cutting capacity:

    • Maximum panel length: 4,200 mm

    • Maximum panel height: 2,200 mm

    • Cutting thickness: 8–60 mm

    • Maximum vertical cut height: 2,200 mm; minimum: 250 mm

    • Maximum horizontal cut length: 4,200 mm; minimum: 500 mm

    • Maximum supported panel weight (aluminium table): 180 kg

  • Saw blade specifications:

    • Blade diameter: 250 mm (minimum 240 mm)

    • Bore diameter: 30 mm

    • Kerf width: 3.2 mm

    • Blade type: HM / HW blades (without insert cutting tips)

  • Dust extraction (ECO version):

    • Extractor nozzle diameter: 100 mm

    • Minimum air speed: 20 m/s

    • Minimum air flow: 570 m³/h

    • Pressure drop: approx. 700 Pa

  • Noise levels:

    • Sound power level (without load): 89.0 dB(A)

    • Sound power level (with load): 93.0 dB(A)

    • Sound pressure level at workplace (with load): 84.5 dB(A)

  • Materials:

    • Particleboard (raw & laminated)

    • MDF

    • Plywood

    • Decorative laminated panels

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
