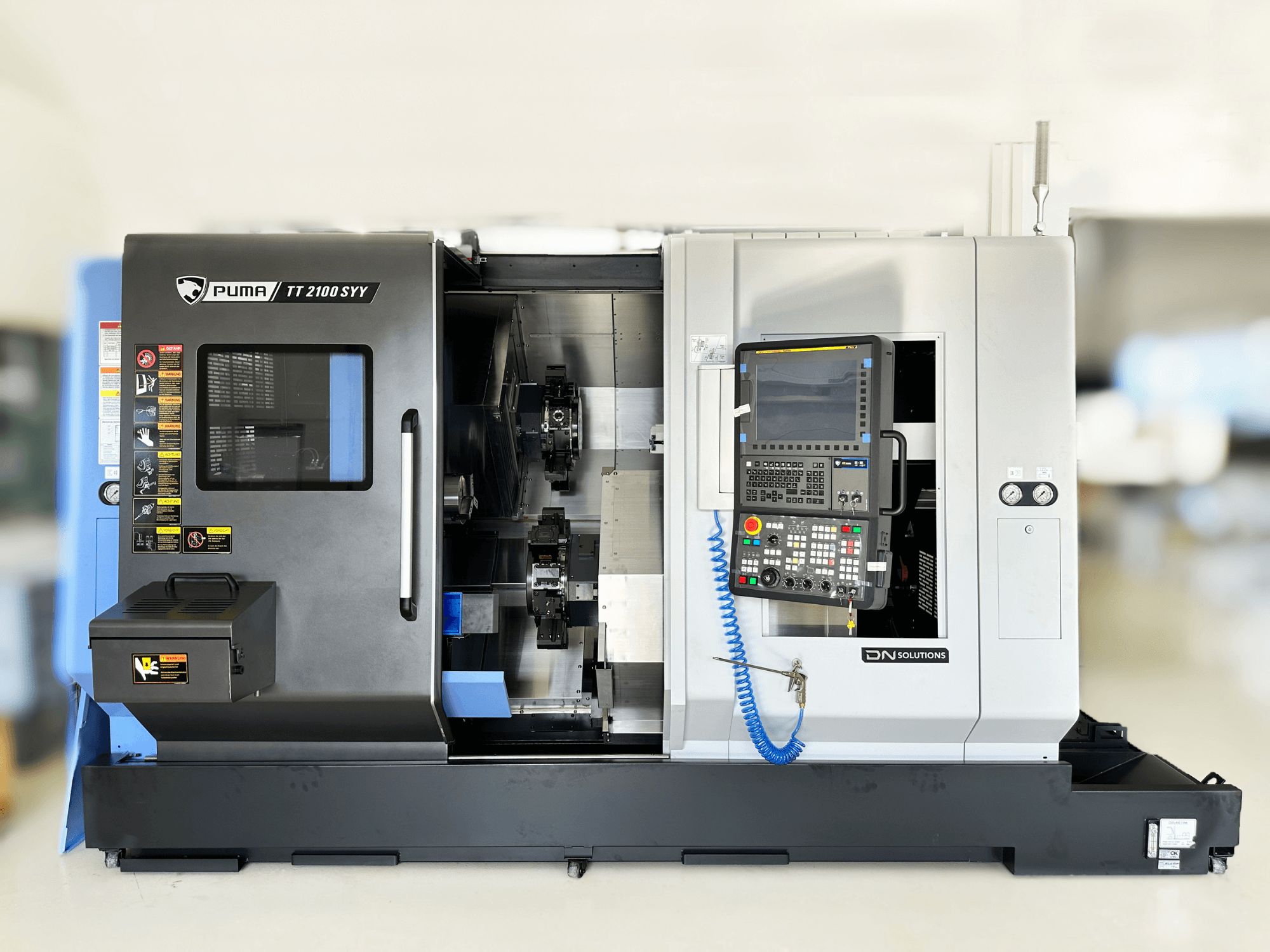

This 8-axis DN SOLUTIONS PUMA TT2100SYY was manufactured in 2023. It features a twin-spindle and twin-turret configuration, with a maximum spindle speed of 5,000 RPM and a bar capacity of 65 mm. The machine is equipped with 24 turret stations and high-rigidity linear roller guides for enhanced stability. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA TT2100SYY turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: PUMA TT2100SYY
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA TT2100SYY
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 2250 mm
- Machine Length: 3880 mm
- Machine Width: 2360 mm
Movement
- Number of Axes: 8
- X-axis Travel: 165 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 700 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Chuck size: 8" (204 mm)
Bar capacity: 65 mm
X1/X2 travel: 165 / 100 mm
Z1/Z2 travel: 700 / 700 mm
Y1/Y2 travel: 30 / 40 mm
Spindle motor power: 22 / 18.5 / 15 kW
Turret stations: 24 (12 + 12)
Turret interface: BMT 55
Guideway type: High-rigidity linear roller guides
Spindle type: Integral motor spindle with wide speed range
Turret capability: Upper and lower turrets with Y-axis and 12 driven stations each
Structural design: Highly stable Y-axis design for high-volume serial production
Additional equipment
Cooling and filtration: High-pressure coolant through turret; Oil skimmer
Sub-spindle features: Coolant supply through sub-spindle; Parts ejector
Parts handling: Parts catcher; Parts conveyor for both spindles
Calibration: Tool setter (auto-electric)
Automation and interfaces: Air conditioning (electrical cabinet); Bar feeder interface; 3-color tower light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
