- ➤ Used PTR Strahltechnik EBW PS 4-1 60-6 CH | Laser Welder

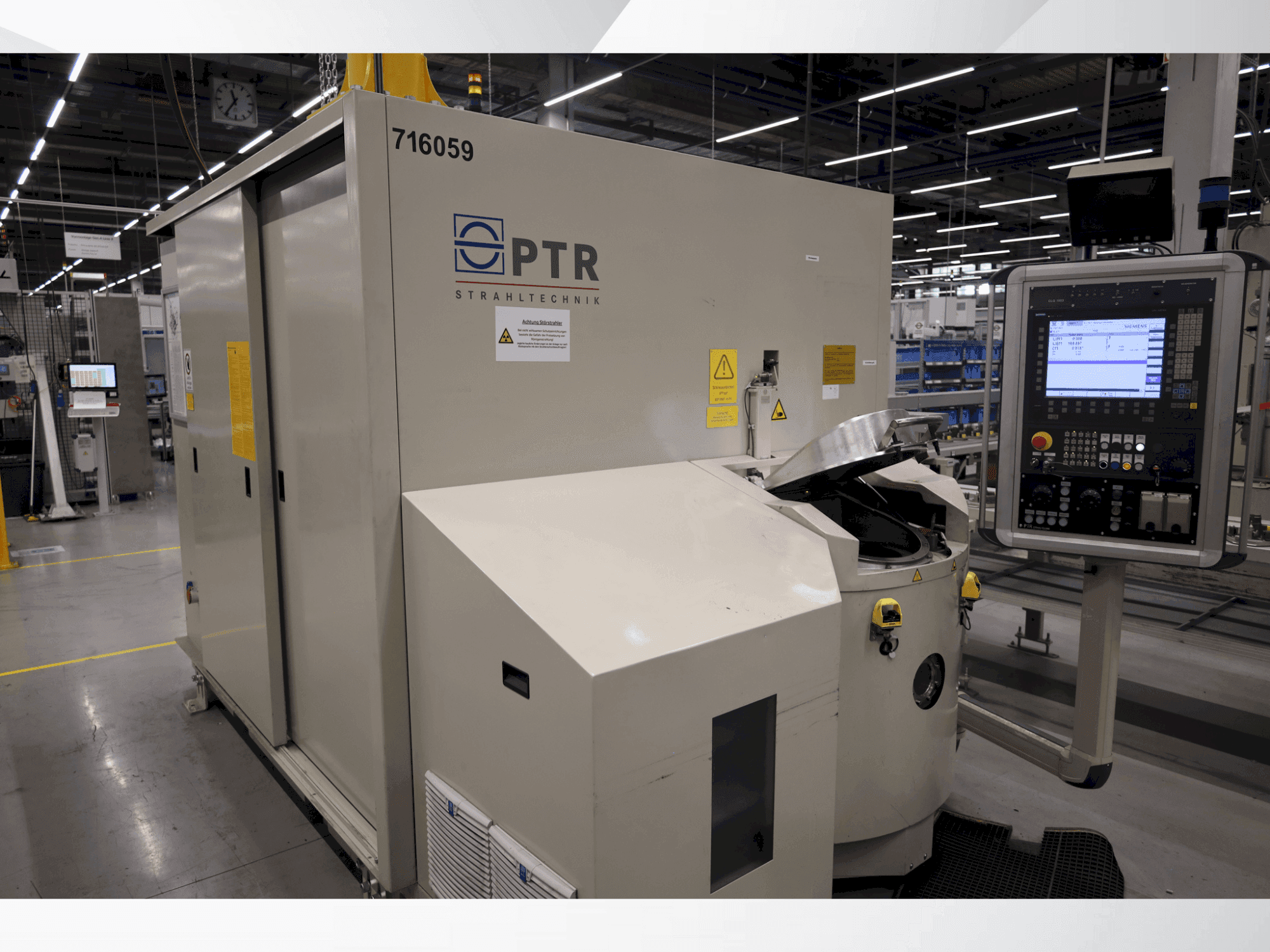

This PTR Strahltechnik EBW PS 4-1 60-6 CH was manufactured in 2019. A reliable laser welding machine, it represents an excellent opportunity for those seeking high-quality welding capabilities. Contact us for more information about this machine.
Overview
- brand: PTR Strahltechnik
- year: 2019
- MODEL: EBW PS 4-1 60-6 CH
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Laser Welding Machine
Technical Information - PTR Strahltechnik EBW PS 4-1 60-6 CH
General Data
- Machine weight: 6600 kg
Additional Information
- Technical Machine Benefits:
- - Total connected load: 54 kv
- - Fuse, supply line: nh 80 a
- - Electron beam: 6 kw / 60 kv / 100 ma
- - Compressed air: 5-7 bar
- - Operating voltage: 3 ac 400v / 50 hz
- - Paint finishes: mechanical equipment: ral 7032 (pebble gray) / control cabinet, housing: ral 7032 (pebble gray) / control panels: ral 9005 / (jet black) / step plates of the platforms: ral 7032 (pebble gray)
- - Eb generator: cane-nickel-plated / high voltage, vacuum pumps: ral 7035 (light gray) / approx. 35 l
- - Voltage of the lock chamber: electrical system
- - Nominal voltage: 3 phases 400v ± 10% / frequency: 50 hz / connected load: 54 kva
- - Welding generator: 6 kw / 60 kv / high voltage: maximum beam power: 6 kw / voltage: 60 kv /
- Qualitative Machine Benefits:
- - Pneumatics
- - Compressed air: customer supply with 5-7 bar; g ½", 200 nl/min
- - Emission
- - Noise level: < 78 db(a)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
