➤ Used PROMAC SHARAV GTV 3.5 For Sale | gindumac.com

Show in original language

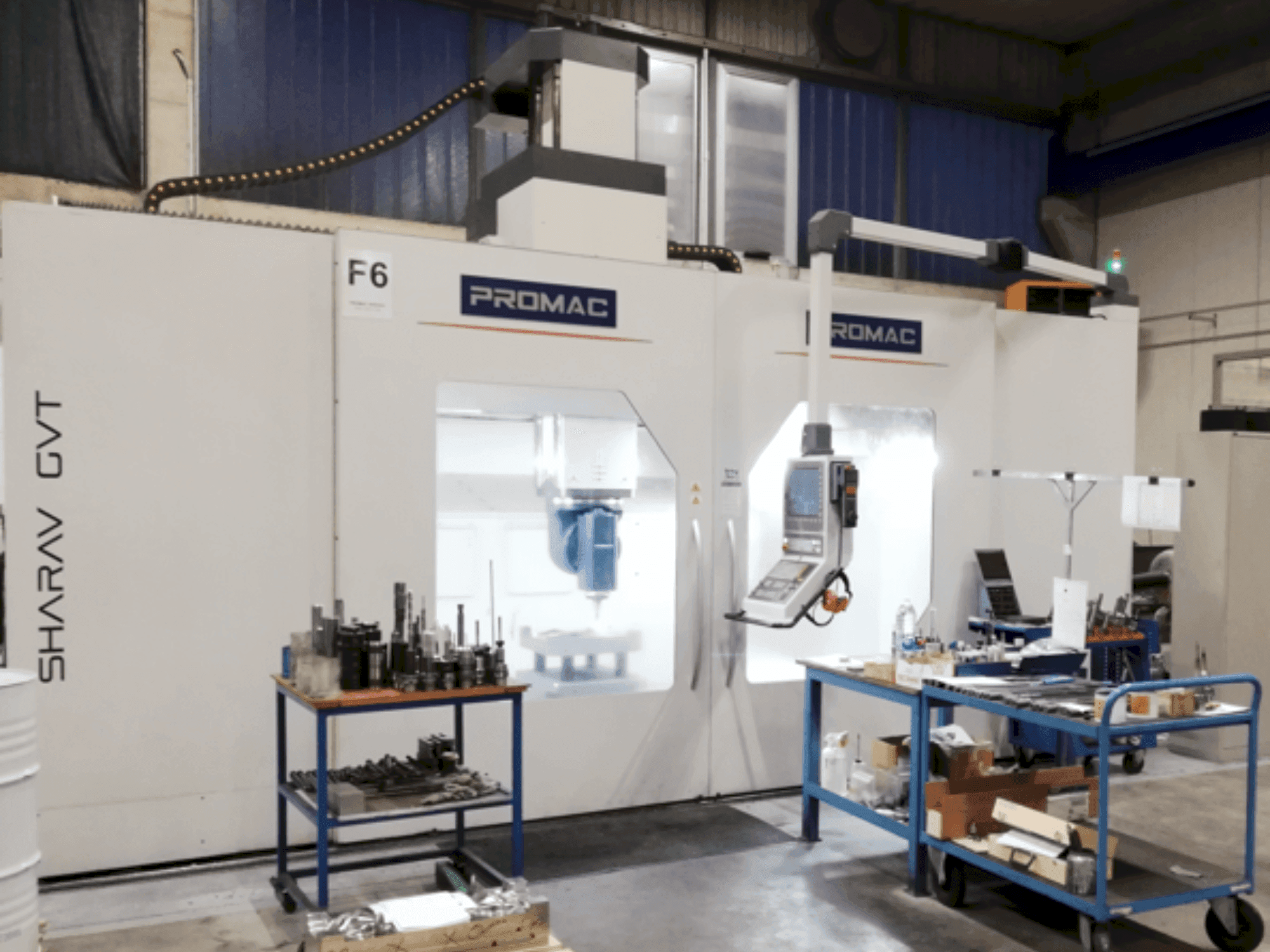

This 5-axis PROMAC SHARAV GTV 3.5 was manufactured in 2014, featuring a robust gantry milling machine design. It boasts extensive travels with 2500 mm on the X-axis, 2000 mm on the Y-axis, and 900 mm on the Z-axis. The machine includes a high-capacity spindle with 30 kW power and 800 Nm torque, ensuring precise and powerful machining. Consider the opportunity to buy this PROMAC SHARAV GTV 3.5 gantry milling machine. Contact us for more information about this machine.

Overview

brand: PROMAC
year: 2014
MODEL: SHARAV GTV 3.5
application type: Milling
Location: Italy
machine type: Gantry Milling Machine

Technical Information - PROMAC SHARAV GTV 3.5

Main drive

Spindle motor power: 30 kW
Number of axis: 5

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 900 mm
A-AXIS Movement: ±110° MM
B-AXIS Movement: -110° MM
C-AXIS Movement: ±200° MM

Table

TSlots size: B 36 mm

Tools

Type of tool holder: HSK 100 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece working position: vertical axis
- - Table dimensions: 3000x2000 mm
- - Spindle type: capto c 8
- - Spindle torque: 800 nm
- - Electrospindle weight: 210 kg

Extra information

- Media Oil pump: 2 l/min Grease pump: 2 l/h Air flow rate: 450 l/h Voltage: 400 V Frequency: 50 Hz Air quantity: 1000 l/min Pressure: 6/8 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
