PRECITECH - Nanoform XDE-TUR-PRE-2013-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used PRECITECH Nanoform X For Sale | gindumac.com

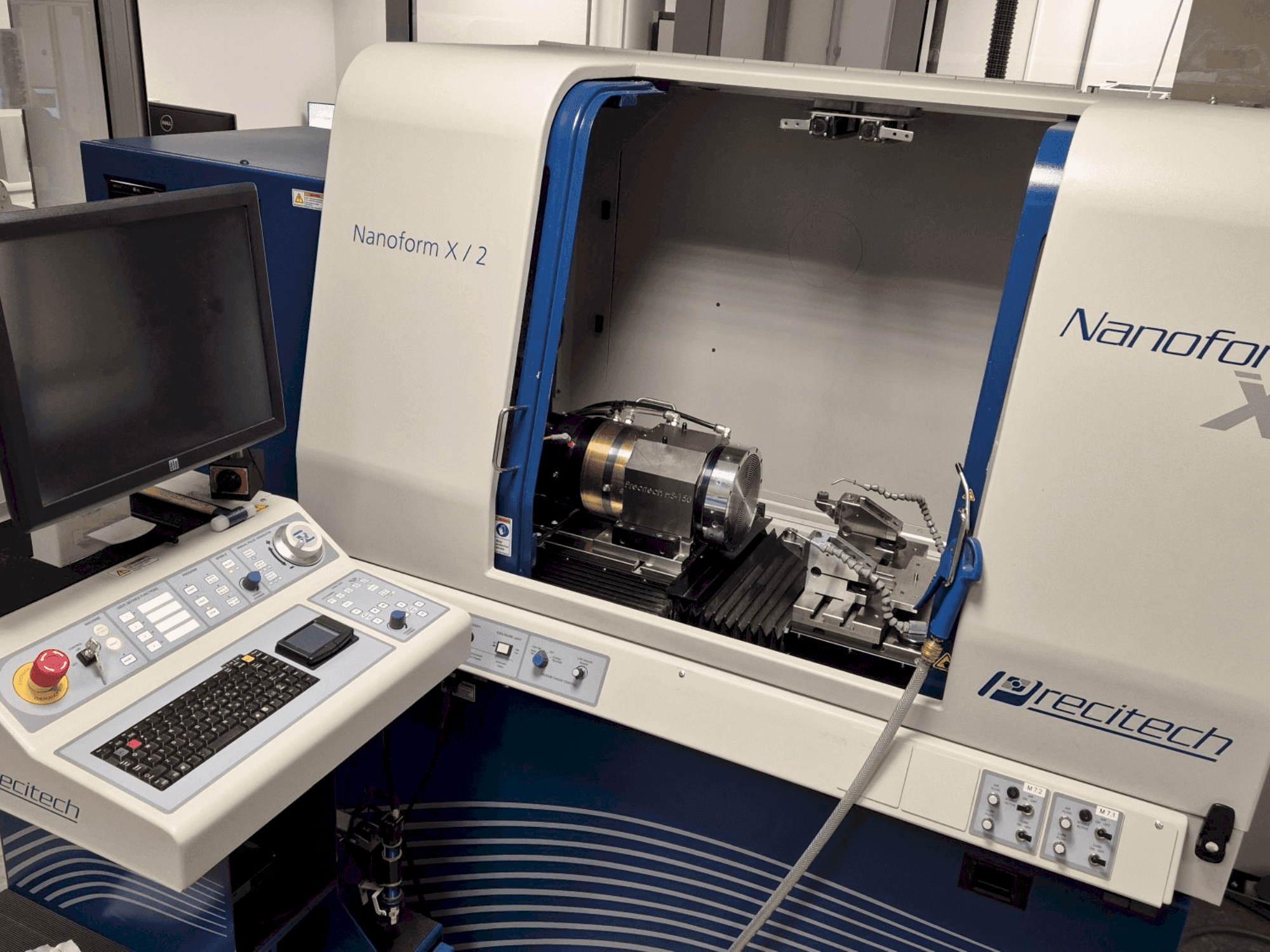

This 4-axis PRECITECH Nanoform X was manufactured in 2013. It features a high-performance air-bearing spindle, integral brushless DC motor, and a sealed granite base for stability. The machine offers a swing capacity up to 440 mm dia., with a maximum feedrate of 4,000 mm/min. Ideal for ultra-precision CNC contouring, it includes UPx™ Control System and optional Adaptive Control Technology. Contact us for more information about this machine.
Overview
- brand: PRECITECH
- year: 2013
- MODEL: Nanoform X
- production hours: 95510
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - PRECITECH Nanoform X
Dimensions
- Machine Depth: 2152 mm
- Machine Height: 2301 mm
Movement
- Number of Axes: 4
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Machine type: ultra-precision four axes cnc contouring machine
- Swing capacity: max swing 440 mm diameter with 100 mm riser block (250 mm dia. Standard swing)
- Machine base: sealed natural granite base provides long-term machine tool stability
- Vibration isolation: fea optimized dual sub-frames and integral self-leveling tmc maxdamp® isolators
- Linear hydrostatic slideways: x and z travel: 220 mm; maximum feedrate: 4000 mm/min
- Motion accuracy: axial/radial ≤ 15 nm
- Tabletop size: 330 mm
- Maximum table speed: 10 rpm continuous / 50 rpm intermittent
- Radial stiffness: 225 n/µm
Extra Information
Control Unit Control System: UPx™ Control System with optional Adaptive Control Technology Operating System: QNX real-time operating system File Transfer/Storage: USB, CD, Ethernet, On-board data storage backup Media Power: 208 ±10% or 230 ±10% VAC - 3.0 KVA 1 phase - 50/60 Hz Air Supply: 12 SCFM @ 100 PSIG
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
