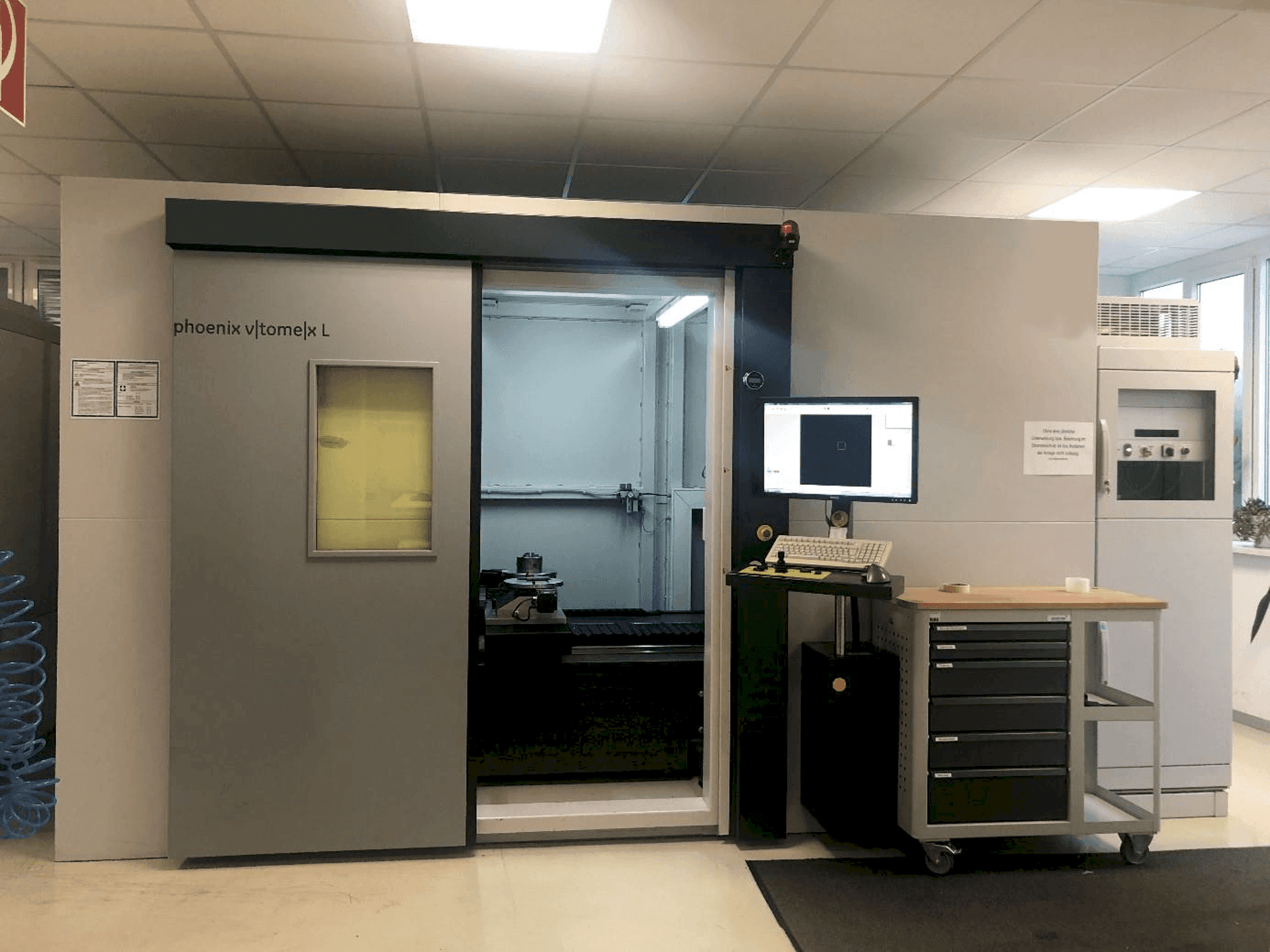

Front view of Phoenix V|tome|x L 240 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Phoenix V|tome|x L 240

Phoenix - V|tome|x L 240DE-OTH-PHO-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Phoenix V|tome|x L 240 machine

Show in original language

This Phoenix V|tome|x L 240 a high-resolution microfocus computed tomography (micro ct) system for 3D computed tomography and 2D non-destructive X-ray inspection was made in the year 2007. It is equipped with a Microsoft Windows® 7 Ultimate (64bit). The machine has axis travel lengths of X - ± 250 mm, Y - 600 mm, and Z - 1200 mm.

Overview

brand: Phoenix
year: 2007
MODEL: V|tome|x L 240
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool
availability: Sold

Technical Information - Phoenix V|tome|x L 240

General Data

Measurements width: 4550 mm
Measurements depth: 2400 mm
Measurements height: 3110 mm
Machine weight: 1800 kg

Control Unit

Model: Windows® 7 Ultimate (64bit)

Movement

X-AXIS Movement: ± 250 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 1200 mm

Media

Main electronic connection: 400 VAC/N/PE, 3 * 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Sample diameter: 600 mm
- - Max. Sample height: 800 mm
- - Max. Sample weight: 50 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Tech.pdf
