➤ Used PFIFFNER HB 32/16 For Sale | gindumac.com

Show in original language

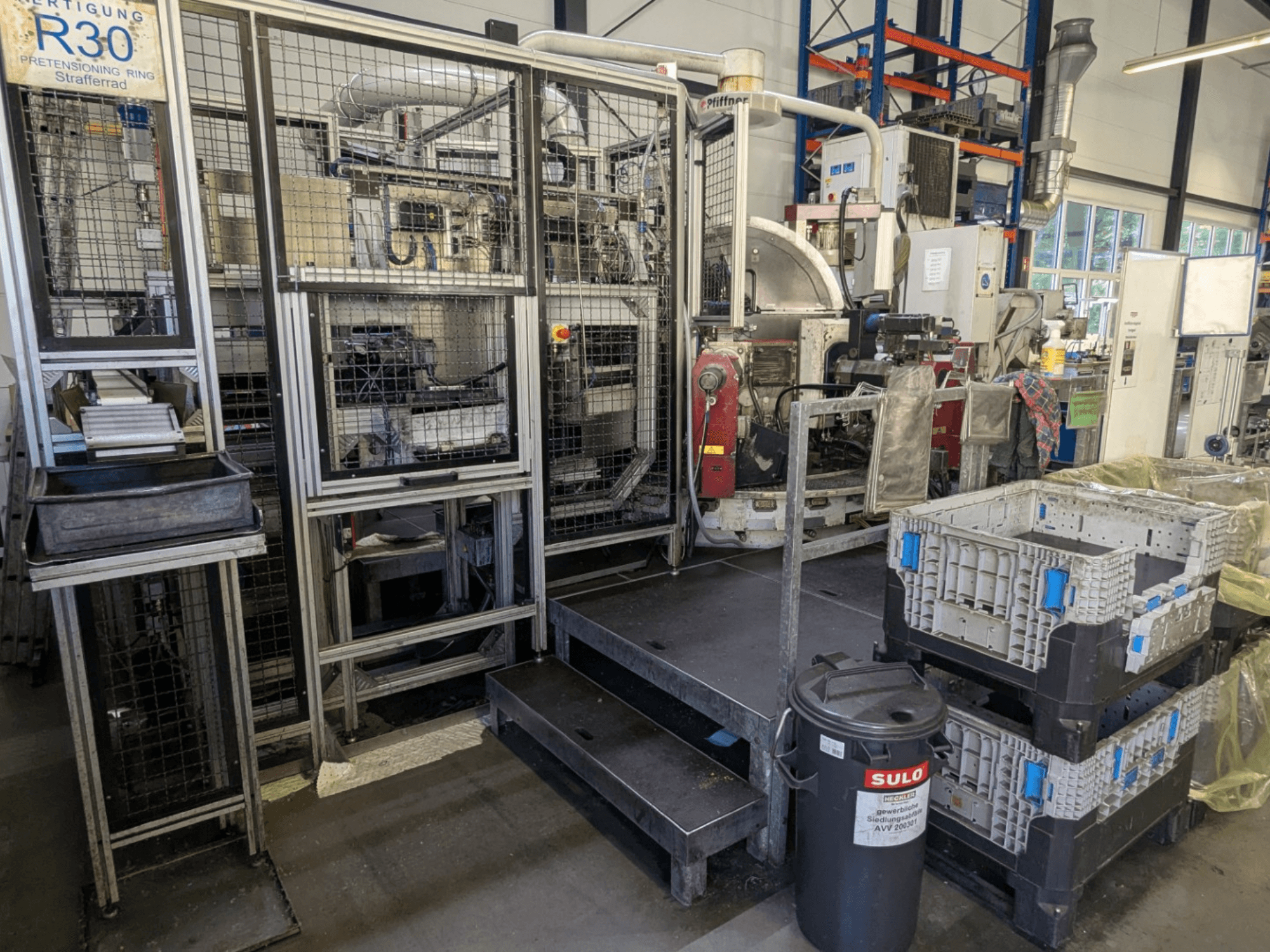

Horizontal Rotary Transfer System manufactured in 2008. This PFIFFNER HB 32/16 features complete machining on both sides in one process, with a maximum clamping diameter of 32 mm and a maximum workpiece length of 150 mm. It includes a 16-position rotary index table with an indexing time of 0.7 seconds. If you are looking to get high-quality machining capabilities, consider the PFIFFNER HB 32/16 machine we have for sale. Contact us for further details.

Overview

brand: PFIFFNER
year: 2008
MODEL: HB 32/16
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool
control unit brand: SIEMENS

Technical Information - PFIFFNER HB 32/16

Control Unit

Control Brand: SIEMENS
Control Model: SIMATIC S7

Dimensions

Machine Height: 2900 mm
Machine Length: 9800 mm
Machine Width: 4000 mm

Technical Specification

Tool Stations: 16

Additional Information

Horizontal Rotary Transfer System
Complete machining on both sides in one process
Number of Stations: 16
Maximum Horizontal Machining Units: 16
Maximum Vertical Machining Units: 8
Total Machining Units: 24
Rotary Index Table: 16-position
Indexing Time: 0.7 seconds
Number of Collets: 16
Collet Type: B32
Maximum Clamping Diameter: 32 mm
Maximum Workpiece Length: 150 mm
Machine Weight: Approx. 6,500 kg (including 4 m bar magazine)
Machine Dimensions:
Length: 9.8 m
Width: 4.0 m
Height: 2.9 m
Workpieces can be machined from both sides.
Special turning unit rotates workpieces by 180°
Machine control based on Siemens SIMATIC S7
Prepared for Siemens SINUMERIK 840D
Integrated AS-i and PROFIBUS

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
