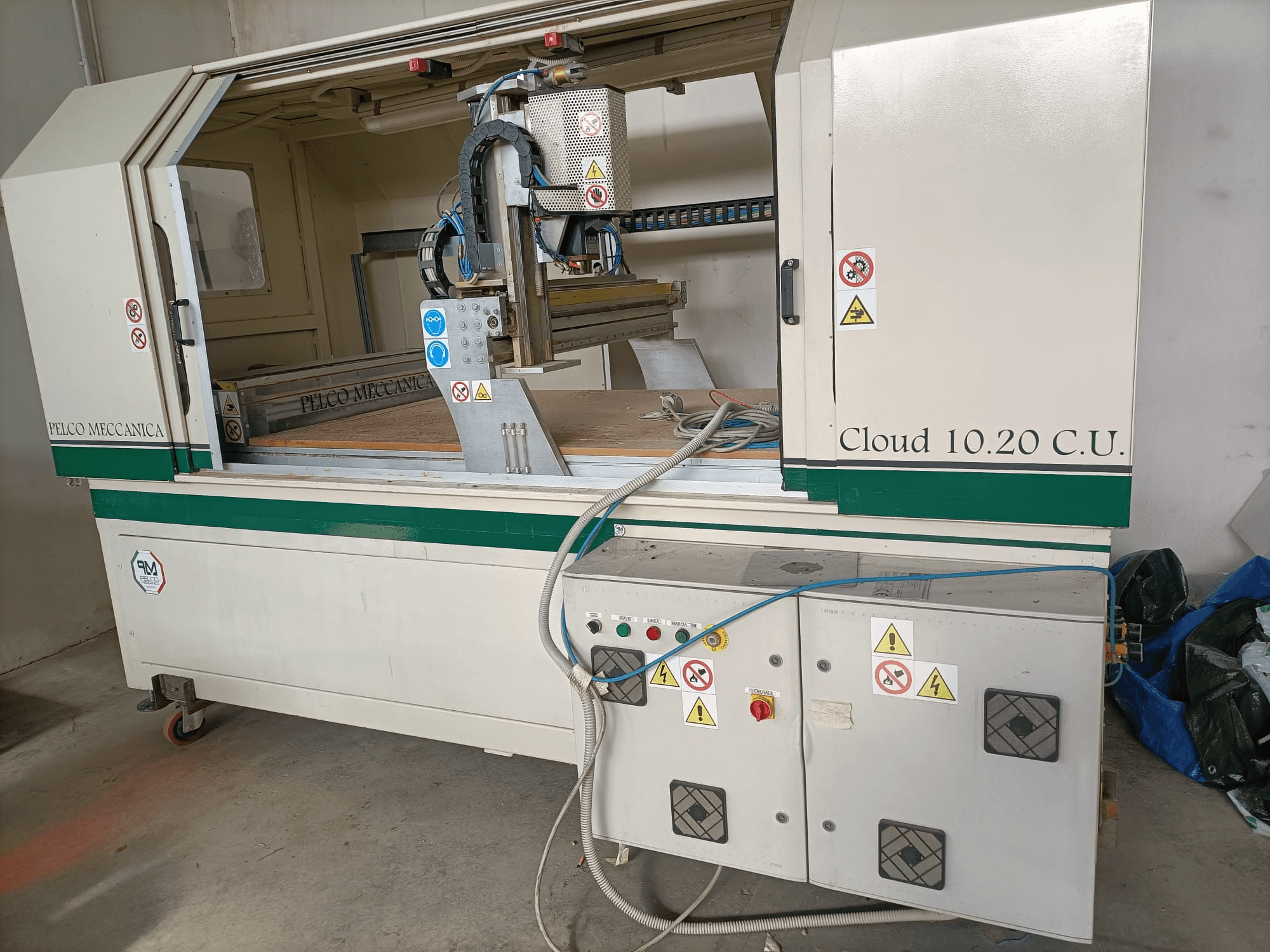

This 3-axis PELCO MECCANICA CLOUD was manufactured in 2015. It features a working area of 2000 × 1000 mm and a Z-axis travel of 250 mm. The machine is equipped with a 12-position tool changer and an electrospindle speed ranging from 2000 to 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the PELCO MECCANICA CLOUD CNC router we have for sale. Contact us for further details.
Overview
- brand: PELCO MECCANICA
- year: 2015
- MODEL: MECCANICA CLOUD
- application type: CNC Wood Machining
- Location: Italy
- machine type: CNC Router
Technical Information - PELCO MECCANICA MECCANICA CLOUD
Movement
- Number of Axes: 3
- X-axis Travel: 2000 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 250 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Suitable materials: wood, PVC, plexiglass, polycarbonate, polymers, high-density polyurethane (model making), soft metals
Applications: fast interpolations ideal for 3D machining, cutting, shaping
Feed rate (interpolated): 10 m/min
Tool changer: 12 positions, ISO20
Electrospindle speed: 2000–18,000 rpm
Controls: handwheel for precise positioning; handwheel for feed rate adjustment during machining
Coolant: prepared for mist cooling system (unit not included)
Certification/year: CE, 2015
Power supply: 400 V, 3-phase + neutral
Power consumption: 3.5 kW
Compressed air requirement: minimum 6 bar
Additional equipment
Tool length preset probe
Chip collection tray/conveyor under the table with extraction outlet
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
