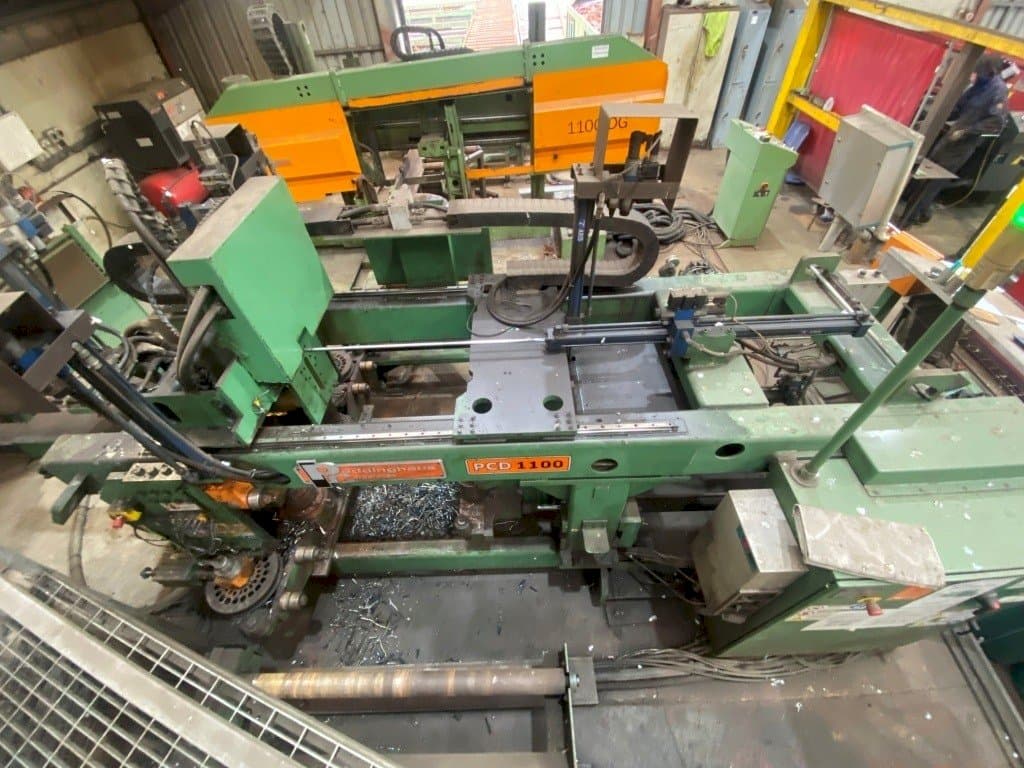

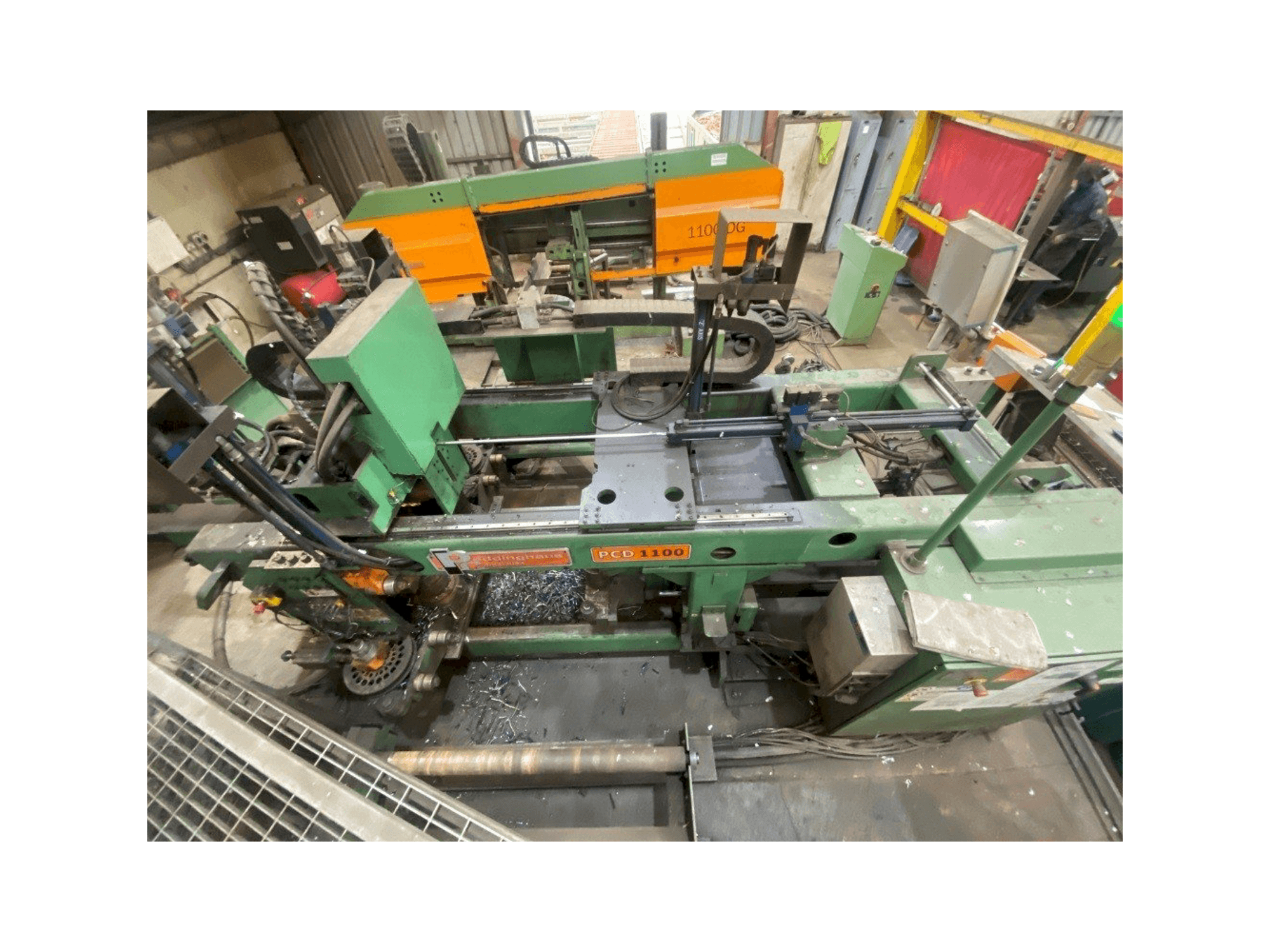

Front view of Peddinghaus PCD 1100  machine

Peddinghaus PCD 1100

Peddinghaus - PCD 1100

2007

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Peddinghaus PCD 1100 Drilling machine was built in 2007 in the United States and has 18000 hours. It is equipped with a Siemens Sinumerik 840D control unit and has 4 axis. The machine has a spindle speed of 850 rpm.

Overview

  • brand: Peddinghaus
  • year: 2007
  • MODEL: PCD 1100
  • production hours: 18000
  • application type: Drilling
  • Location: Ireland
  • machine type: Drilling machines
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: IE-DRI-PED-2007-00001

Technical Information

General Data

  • Machine weight: 4800 kg

Control Unit

  • Brand: Siemens
  • Model: Sinumerik 840D
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Spindle speed range: 850 1/MIN
  • Spindle motor power: 10 kW (13.5HP)

Workpiece

  • Workpiece x: 1100 mm
  • Workpiece z: 460 mm
  • Workpiece weight: 8165 kg

Tools

  • Max tool diameter: 26 mm

Media

  • Main electronic connection: 400 V
  • Internal cooling: Yes

Additional Information

    Machine history

    • Material type: Structural steel
    • Material thickness: 6 mm
    • End product: Structural steel
    • Industries: Structural steel industry

    Machine Benefits

    • Technical Machine Benefits:
      • - 3 spindle drilling - no turning of parts
      • - Powerful machine
      • - Drill only - saw & conveyors not included
      • - Max profile width: 1,100 mm (43"), max profile height: 460 mm (18")
      • - Max part weight: 8165 kg
      • - Min profile width: 76 mm (3"), min profile height: 76 mm (3")
      • - X axis feedrate: 40m/min
      • - Min thickness: 3 mm (1/8")
      • - Min part length: 1,575 mm(62")
      • - Max part weight/m: 433 kg/m
    • Qualitative Machine Benefits:
      • - Low working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
