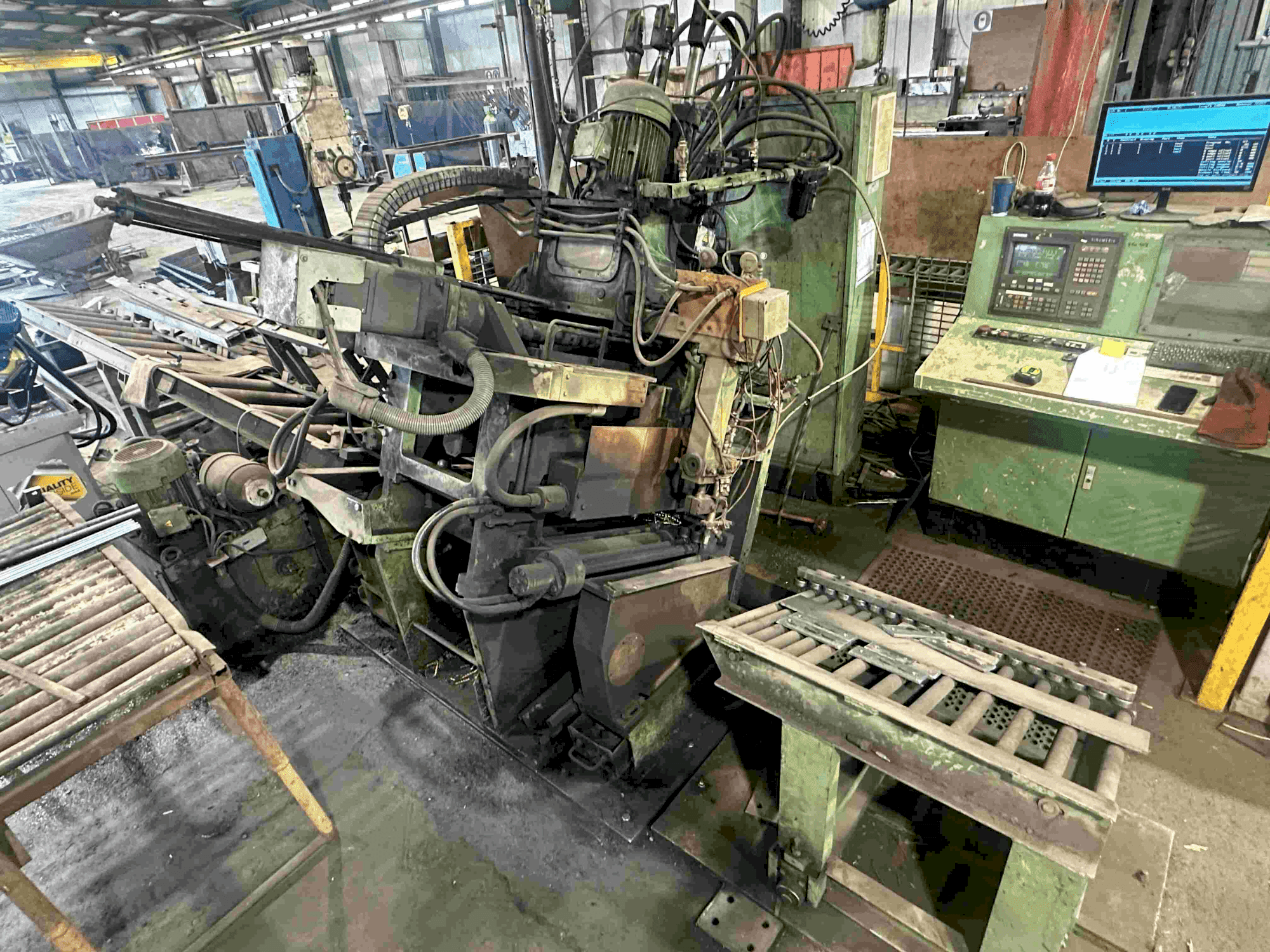

Front view of Peddinghaus FDB 600  machine

Peddinghaus - FDB 600IE-DRI-PED-2000-00001

Rs. 2,056,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Peddinghaus FDB 600 was manufactured in 2000. A robust drilling machine from Germany, it features a Siemens Sinumerik control unit, chip conveyor, and internal cooling. It's designed for the construction industry, handling steel plates with a maximum thickness of 50mm and length up to 6000mm. Ideal for structural steel plates, the Peddinghaus FDB 600 machine we have for sale is immediately available. Contact us for further details regarding this drilling machine.

Overview

  • brand: Peddinghaus
  • year: 2000
  • MODEL: FDB 600
  • production hours: 48447
  • application type: Drilling
  • Location: Ireland
  • machine type: Drilling machines
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - Peddinghaus FDB 600

General Data

  • Measurements width: 1900 mm
  • Measurements depth: 2000 mm
  • Measurements height: 2800 mm
  • Machine weight: 6500 kg

Control Unit

  • Brand: Siemens
  • Model: Sinumerik

Workpiece

  • Workpiece x: 50 mm
  • Workpiece y: 600 mm
  • Workpiece z: 6000 mm

Tools

  • Max tool diameter: 40 mm

Media

  • Main electronic connection: 400 V
  • Chip conveyor: Yes
  • Internal cooling: Yes

Additional Information

    Machine history

    • Material type: Steel plate
    • Material thickness: 20 mm
    • End product: Structural steel plates
    • Industries: Construction industry

    Machine Benefits

    • Technical Machine Benefits:
      • - 3 drilling spindles
      • - Oxy fuel cutting
      • - Max drilling capacity: 40 mm
      • - Min drilling capacity: 8 mm
      • - No of drill spindles: 3
      • - Min plate thickness: 6 mm
      • - Max plate thickness: 50 mm
      • - Min plate width: 80 mm
      • - Max plate width: 600 mm
      • - Max plate length: 6000 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
